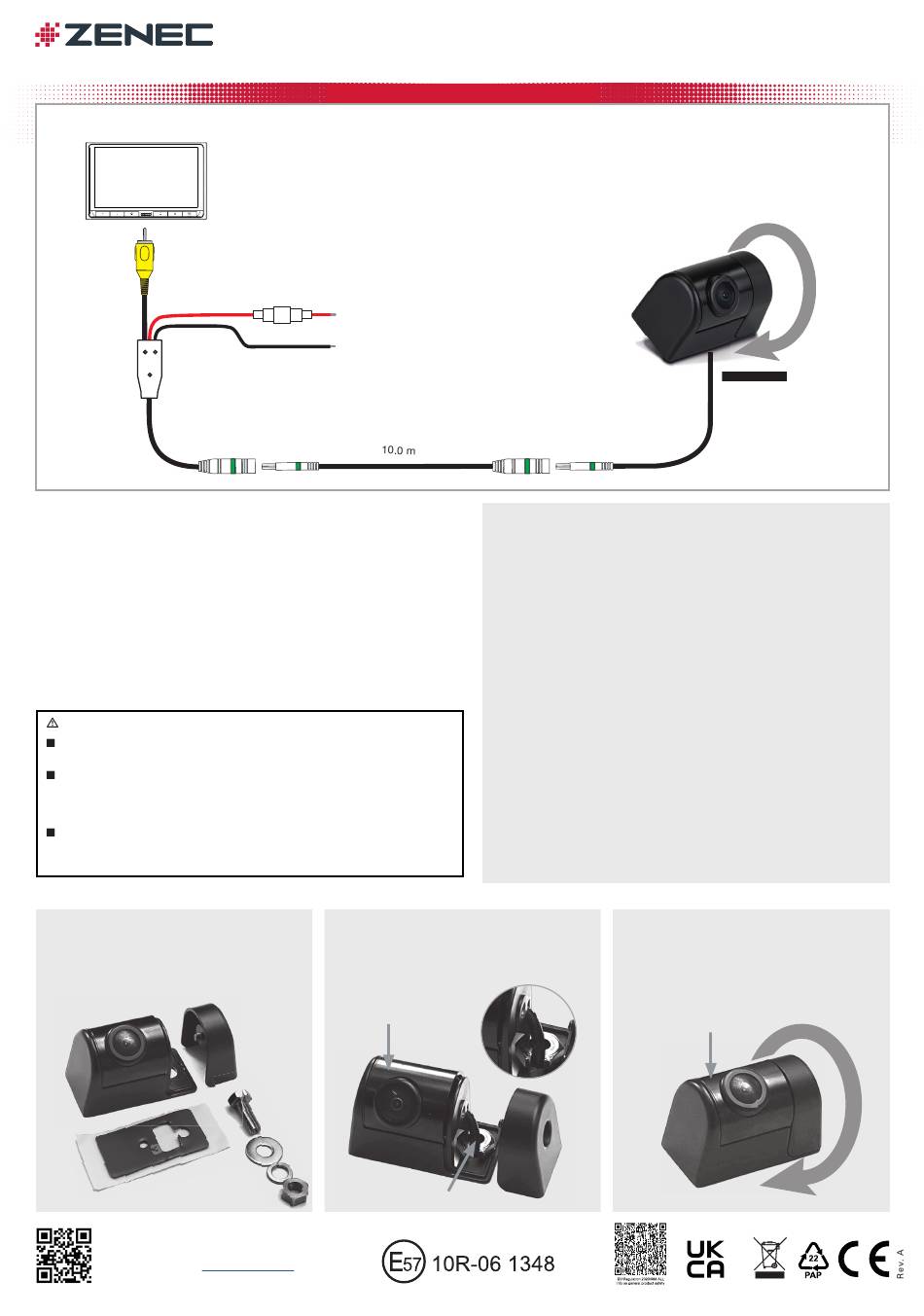

ZENEC ZE-RVC80AHD Montageanleitung

MOUNTING INSTRUC TIONS
RCA connector
AHD video signal
FEMALE
0.70 m
MiNI 4PIN
KEY FEATURES
• Compact universal AHD rear view camera for use with selected ZENEC
device models and infotainers from other brands
• High quality CMOS picture sensor with AHD 720p output signal and low
power consumption
• Robust die-cast aluminum housing with mechanical adjustment of vertical
image section
• Image section adjustment by rotating sensor roller, 0° to 70° up / 0° to 70°
down
• 10 m long separable system cable equipped with mini 4-PIN connectors
• Required cable feed-through hole: 6.1 mm, easy mounting via M6 hollow
thread screw
• Protection rating: IP69K certifi ed
CAUTION
Use the included connection cable exclusively. Modifying the cable will void
your warranty.
The camera is water- and dustproof and has been licensed according to the
international standard IP69K. However, vehicle cleaning using high pressure
water and steam jet devices may still lead to damage of IP69K rated camera
models by intrusion of water.
If the vehicle is treated with a water jet high pressure cleaning device, make
sure to keep a distance of at least one meter between the water nozzle and
the camera sensor / housing.
Rotatable Reverse Camera
Loosen the locking screw of the camera housing side cover.
Pull the camera cable out of the rectangular opening in the
camera bottom. The accessory set contains one piece of
hollow thread screw, washer, M6 lock nut, M6 spring washer,
3M adhesive pad and self-tapping fixing screw.
Camera housing
3M adhesive pad
UK Declaration of Conformity
Hereby, ACR Brändli + Vögeli AG declares that ZENEC ZE-RVC80AHD is
CE compliant – the EU Declaration of Conformity can be accessed via the
following Internet address: https://www.zenec.com
Conformity Documents" in the footer area of the page).
ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland, EU Legal Representative: ACR S & V GmbH ∙ Industriestr. 35 ∙ D-79787 Lauchringen ∙ Germany www.zenec.com
Fuse 1 A
DC 5 ~ 24 V
GND
MALE
MINI 4PIN
Insert the cable into the groove from the hollow thread screw.
Route the cable with the hollow thread screw into the round
hole in the camera base. Drill a mounting / cable
cable feed-through hole with a diameter of 6 mm. Fix the
cam via hollow threaded screw with washer, spring washer
and M6 lock nut.
Cylinder
Side cover
Hollow
screw
(see link „Product
FEMALE MALE
MINI 4PIN MINI 4PIN
TECHNICAL SPECIFICATIONS
• Image device: 1/4" / 6.09 mm SONY IMX225LQR CMOS sensor
• TV system: NTSC
• View angle: 170°(D) x 135°(H) x 90°(V)
• Native sensor resolution: 1280 (H) x 960 (V) pixels
• Video signal resolution: 1280 (H) x 720 (V) pixels
• Image frame rate: 30 fields/sec.
• Lens focal length: f 1.2
• Light sensitivity: 0.5 Lux / 50IRE
• Image S/N Ratio: > 48 dB
• Video output: 1.0 Vp-p (±0.2 V), 75 ohms, AHD
• White balance: Auto
• Backlight compensation: Auto
• Gamma correction: 0.45
• Gain control: Auto
• Sync system: Auto
• Power supply: 5.0 – 24 V DC
• Current consumption: 70 mA @12VDC, ≤ 840 mW
• IP protection rating: IP69K
• Operating temperature: -30° C ~ +75° C
• Dimensions (L x W x H): 44 x 23 x 29 mm
Cable
ZE-RVC80AHD ZE-RVC80AHD
AHD RE AR VIE W C AMER A
Camera rotates Camera rotates
0.60 m
Alternatively, the camera can be fixed with the 3M adhesive
pad or the self-tapping screw. The cable must always be
routed though the round hole in the camera base to provide
for full adjustment range of the sensor cylinder. Loosely
screw on the housing cover and align the camera. Tighten
the locking screw well.
Cylinder
