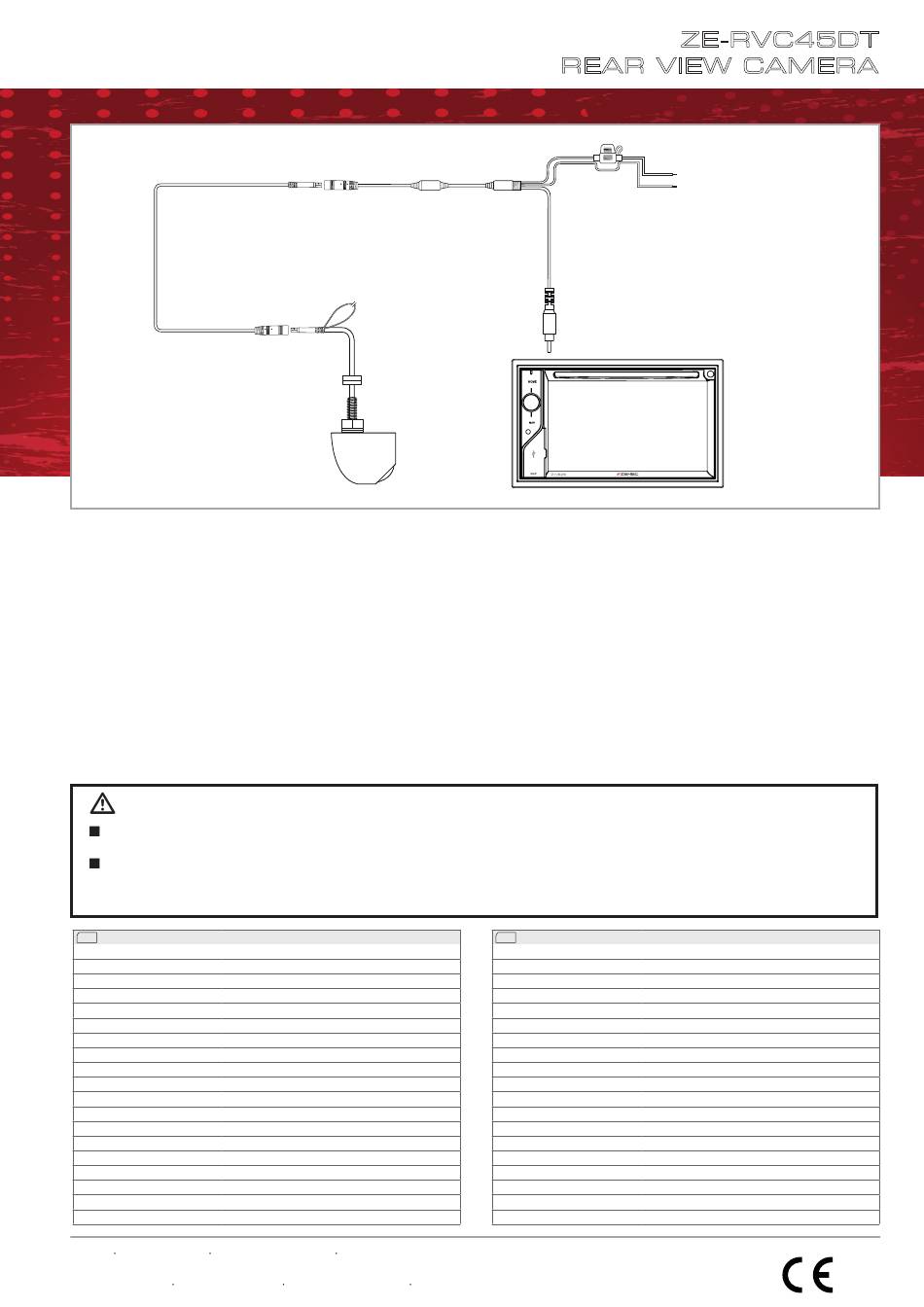

ZENEC ZE-RVC45DT Montageanleitung

MOUNTING
INSTRUCTIONS
7.0 m
* Torque 20Nm
KEY FEATURES
• Compact 45° universal rear view camera
• System design for easy mounting with deployment as front- or rear-view camera
• Detailed high contrast picture suited for twilight conditions
• Separable 3-part system cable, with cable parts of 0.7 m + 7.0 m + 0.7 m length
• Normal or mirror image picture output is freely selectable

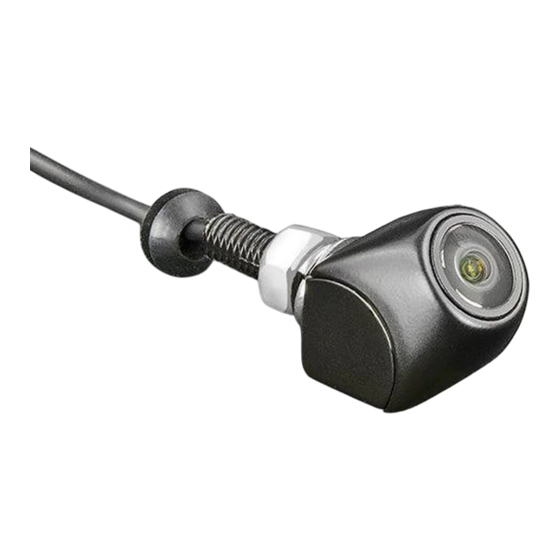

• Aluminum die-cast housing with M6 threaded tube
DESCRIPTION:
The ZENEC ZE-RVC45DT rear view camera model was developed for universal use, allowing retrofitting of a great variety of
vehicles due to its extremely compact housing shape. The picture can be outputted as normal or mirror image, for mounting and
utilization of this model as front- and as rear view camera. Besides, the ZE-RVC45DT offers a large horizontal viewing angle of
140° for good overview.
This product is compatible with a wide variety of 2-DIN A/V receivers of the aftermarket and the ZENEC E>GO product line up,
including ZENEC 2-DIN infotainers and naviceivers.
CAUTION:
Use the included connection cable exclusively. Altering or replacing it will void your warranty.
The camera is water- and dustproof and has been licensed according to the international standard IP69K. However,
vehicle cleaning using high pressure water and steam jet devices may still lead to damage of IP69K rated camera
models by water intrusion. Keep a distance of at least one meter between the water nozzle and the camera housing.
EN Technical Specifications:
Image device: ¼" / 6.4 mm Aptina ASX340AT CMOS sensor
Lens focal length: f1.5
TV system: NTSC / 60 fps
View angle: 180°(D) x 140°(H) x 90°(V)
Native sensor resolution: 680 (H) x 512 (V) pixels
Resolution of video-out: > 420 TV lines
Frame rate: 60 fi elds/sec.
Signal to noise ratio: > 48 dB
Light sensitivity: 0.5 Lux/F1.2/50IRE
Video output: 1.0 Vp-p, 75 ohms CVBS
White balance: Auto
Backlight compensation: Auto
Gamma correction: 0.45
Gain control: Auto
Sync system: Auto
Power supply: DC 6 - 16V
Current consumption: 60mA (DC12V) / ≤ 720mW
IP protection rating: IP69K
Operating temperature: -30°C~+75°C
ZENEC Bohrturmweg 1 CH-5330 Bad Zurzach Switzerland
EU Legal Representative:
ACR S & V GmbH Industriestraße 35 D-79787 Lauchringen Germany
Rear camera mode: Green cable open
Front camera mode: Green cable twisted
0.7 m
M6 Nylon nut*
REAR VIEW CAMERA
2A fuse
0.7 m
Video Out
(connect to Moni-/Naviceiver)
DE Technische Spezifikationen
Kamerasystem:
Brennweite Linse:
TV System:
Betrachtungswinkel:
Native Sensor Aufl ösung:
Aufl ösung Ausgangssignal:
Bildwiederholrate:
Signal/Rauschabstand:
Lichtempfi ndlichkeit:
Video Ausgang:
Weißabgleich:
Belichtungskompensation:
Gamma Korrektur:
Helligkeitsabgleich:
Synchronisation:
Spannungsversorgung:
Stromverbrauch:
Schutzklasse:
Betriebstemperatur:
ZE-RVC45DT
Red: CAMERA PWR (+12V)
Black: GND
¼" / 6,4 mm Aptina ASX340AT CMOS Sensor
f1.5
NTSC / 60 fps
180°(D) x 140°(H) x 90°(V)
680 (H) x 512 (V) Pixel
> 420 TV Linien
60 Felder/Sek.
> 48 dB
0.5 Lux/F1.2/50IRE
1,0 Vp-p, 75 Ohm CVBS
Automatisch
Auto
0.45
Automatisch
Automatisch
DC 6 - 16V
60mA (DC12V) / ≤ 720mW
IP69K
-30°C~+75°C
Rev. A
