the operator slips over, accidents
can happen.
Ensure that all the safety devices
are in full working order and
correctly attached to the unit at all
times. Do not make any
unauthorized adjustments to the
safety devices. The unit must not
be used unless it conforms to the
technical standards prescribed by
the manufacturer.
Avoid open fire, sparks and do
not smoke.
Before working on the unit:
Protect yourself from injury.
Before working on the unit:
Stop the engine
-
Wait until all moving parts
-
have come to a complete
standstill
Remove wire from spark plug
-
to avoid accidental starting
Transporting the unit
Never transport the unit with
engine running.
After operating the unit
Do not get off the unit until you
have turned the engine off
Safety devices
For the protection of the operator
the unit is equipped with safety
devices which must always be in
full working order.
You should never make any
unauthorized adjustments to the
safety devices or bypass them.
Safety devices:
Safety bar
The safety bar is designed to
protect the operator by bringing
the engine and the cutting blades
to an immediate standstill in the
case of an emergency. Do not
ever try to bypass this function.
Blade cover
The blade cover is designed to
protect you against injury. The
unit is only to be operated with
the cover in place.

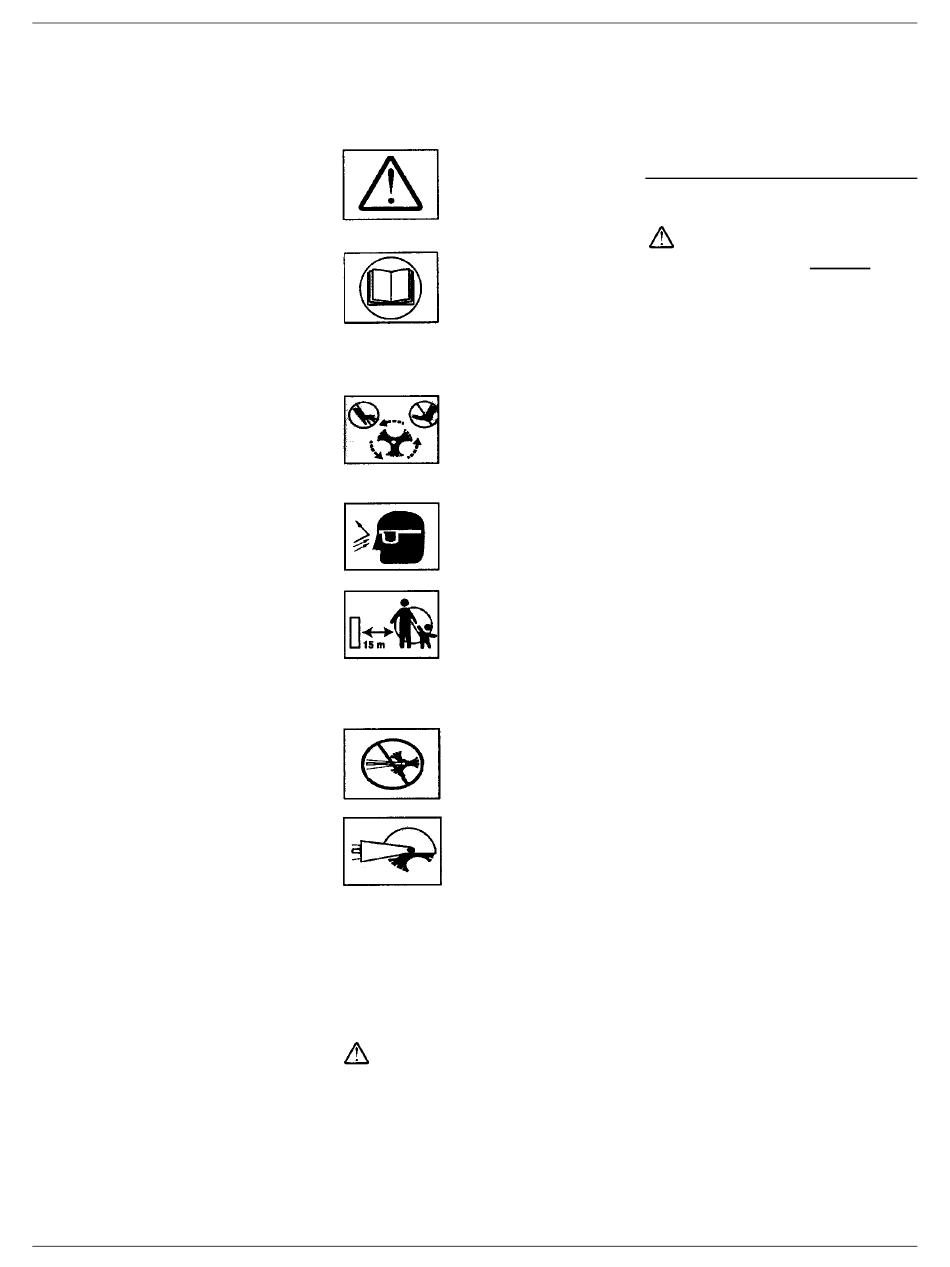

Symbols on the unit
Stickers with various symbols are
attached to the unit They have the
following specific meanings:
Injury hazard, or
possibility of damage
to property.
Before using the unit
read and observe the
information in the
user's guide, in
particular the section
„ For your safety"
Injury hazard due to
rotating blade.
Keep hands and feet
away from the blade.
Injury hazard.
Wear goggles.
Keep the area of
operation clear
(at least 15 m) of all
persons, especially
small children and
animals.
Injury hazard.
The unit is only to be
operated with the
blade-cover in place
Ensure that the symbols on the
unit are legible at all times.
Symbols in this manual
The following symbols are used
in this manual:
Warning / Danger
The symbol is intended to point
out hazards related to the activity
described, which could endanger
the personal safety of the operator
or others and cause damage to
property.
2
References to positions
To determine positions (e.g. left,
right) stand behind the handle in
the operating position.
Assembly
Always remove wire from spark
plug to avoid accidental starting
Danger
This unit is shipped without
gasoline or oil in the engine.
See engine manual.
Attaching the handle
Figure 1
1. Wing nuts
2. Rope guide
3. Lower handle
4. Bowden cable
Raise the upper handle until it
snaps into place. Tighten the wing
nuts (1). Do not crimp the starter
rope nor the Bowden cable.
Attaching the starter rope
The rope guide is already
attached to the right side of the
upper handle (optional) of your
unit. See Figure 2.
1. Push the safety bar (11) and
pull the starter rope out of the
engine.
2. Slip the rope through the rope
.
guide. Tighten the wing nut
holding the rope guide.
Adjusting the blade depth
control
Figure 3:
1. Depth control lever
2. Start position
3. Lowest edging position
4. Hex lock nut (otional)
5. Control cable
