asseMbly

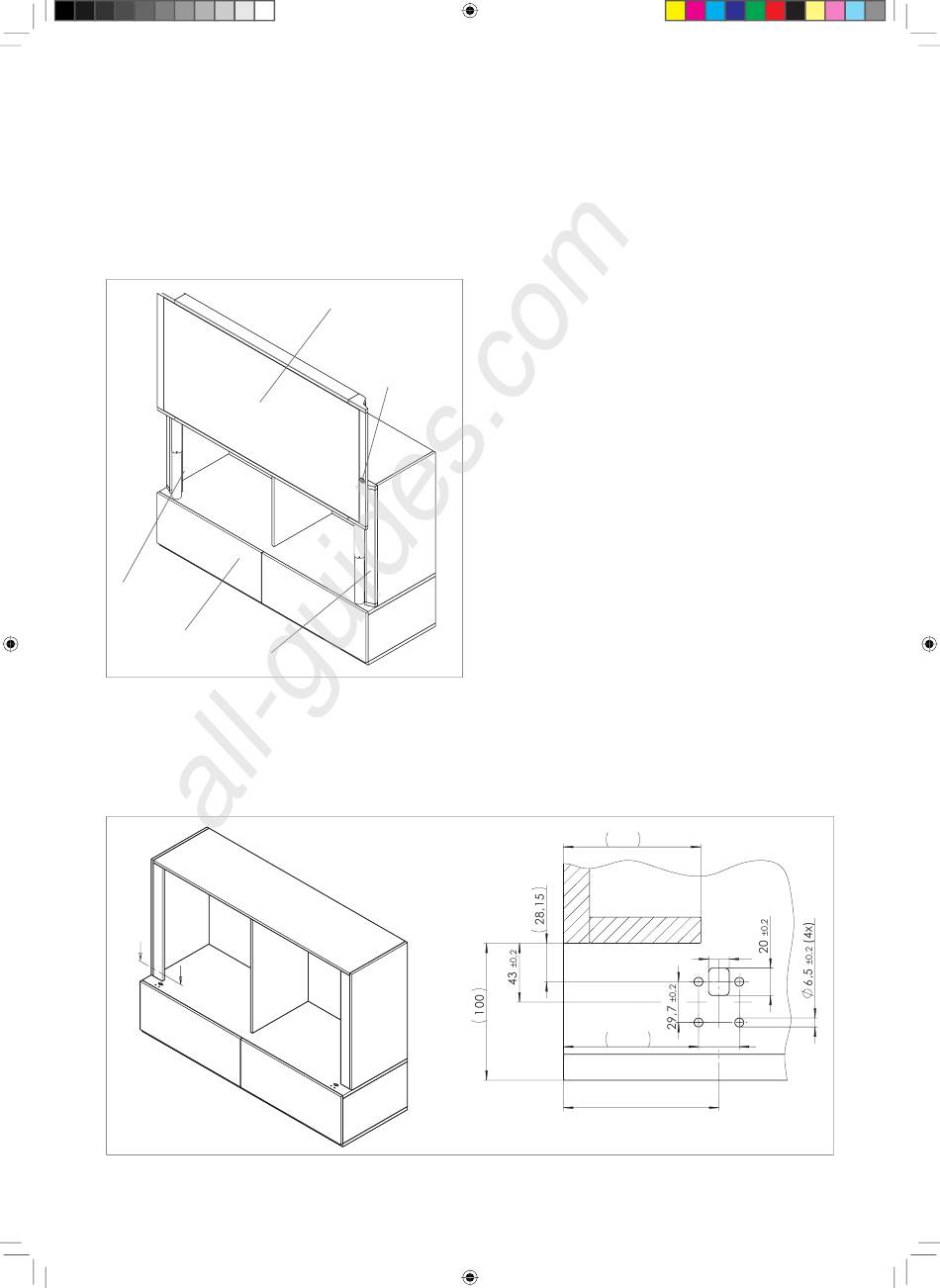

Assembly diagram lifting door module
The lifting door module is to be assembled as shown in the following
diagram.
Electric motor
operated lifting unit
Cabinet carcass
RAUWORKS Front,
Gesamtsystem "Accoustic",
Layout of fixing points
Geometrie aus REHAU-Zeichnung
PKS-16078 B vom 08.11.2012 ,
für Einbauanleitung.
In order to ensure the function of the lifting door module, the fixing
M1:10
holes are to be created according to the drilling pattern below.
A
A
Detailed illustration „Fixing holes in the carcass"
100
16
B41604_RAUWORKS_front_elektr_Montageanleitung_DE_EN_FR3_eps.indd 16
All manuals and user guides at all-guides.com
Lifting door
Control element
Carcass cover
08.11.12 Fa. REHAU AG+Co,
Konstruktion CCT-IS,
Kiessling 2424
RAUWORKS Front,
Schrankkorpus für Gesamtsystem ,
Befestigungsbohrungen für Hubtürmontage ;
Geometrie aus REHAU-Zeichnung PKS-16078 B
vom 08.11.2012 ,
Assembly sequence
Always proceed in the following sequence.
a. Drill fixing points in the carcass (see detailed illustration „Drill
fixing holes in the carcass")
b. Install the electric lifting column (see Page 17)
c. Fit the control box and radio receiver (see Page 18)
d. Make the electrical connections (see Page 18)
e. Adjust the lifting column (see Page 19)
f. Attach the carcass cover (see Page 20)
A
A
100
1:20
98,25
113,1
±0,2
A - A ( 1:2 )
1:20
15
±0,2
29,7
±0,2
08.11.12 Fa. REHAU AG+Co,
Konstruktion CCT-IS,
