Rehau RAUWORKS FRONT B41604 Montageanleitung Seite 17

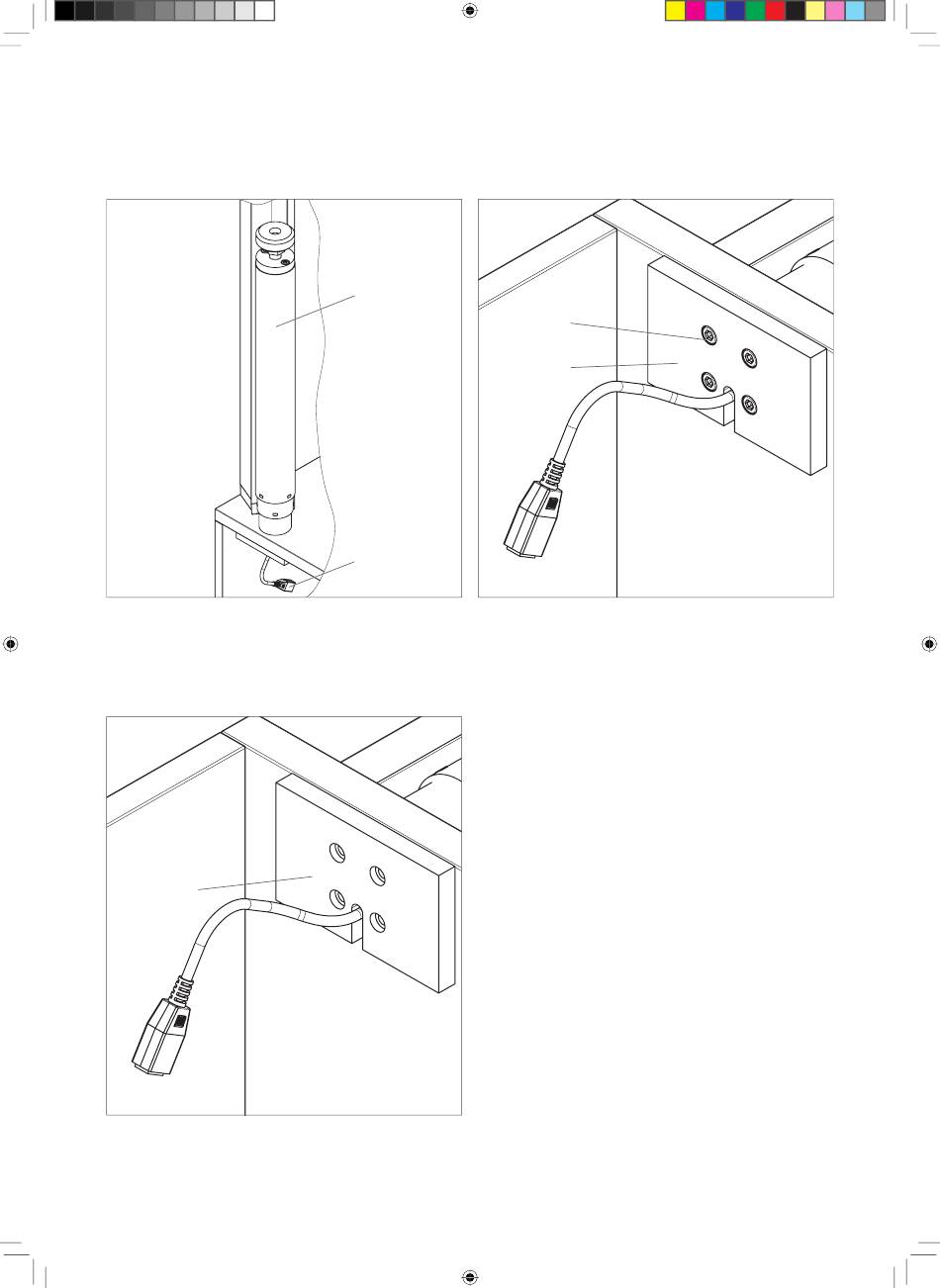

Installing the electric lifting column
a. Thread the motor cable through the designated cut-out between
the two rear fixing points.
b. Rest the lifting column on the prepared cabinet carcass.
Illustration 1
c. Hold the mounting plate from underneath.
(See illustration 2).
RAUWORKS Front,
Gesamtsystem "Accoustic" ,
Detail Hubsäule komplett ;
Geometrie aus REHAU-Zeichnung
PKS-16078 B vom 08.11.2012 ) ,
für Einbauanleitung.
Mounting plate
M1:5
Illustration 2
B41604_RAUWORKS_front_elektr_Montageanleitung_DE_EN_FR3_eps.indd 17
All manuals and user guides at all-guides.com
Lifting column
Motor cable
08.11.12 Fa. REHAU AG+Co,
RAUWORKS Front,
Konstruktion CCT-IS,
Kiessling 2424
Gesamtsystem "Accoustic" ,
Hubsäulenplatte unten - Schrauben eingeblendet ;
Geometrie aus REHAU-Zeichnung PKS-16078 B
vom 08.11.2012 ,
für Einbauanleitung.
M1:2
d. Screw the lifting column with four M6 screws using the mounting
plate to the cabinet carcass (see illustration 3).
M6 screws
Mounting plate
Illustration 3
e. Repeat the process on the other side, to fit the second lifting
column.
08.11.12 Fa. REHAU A
Konstruktion CCT-IS,
Kiessling 2424
17
