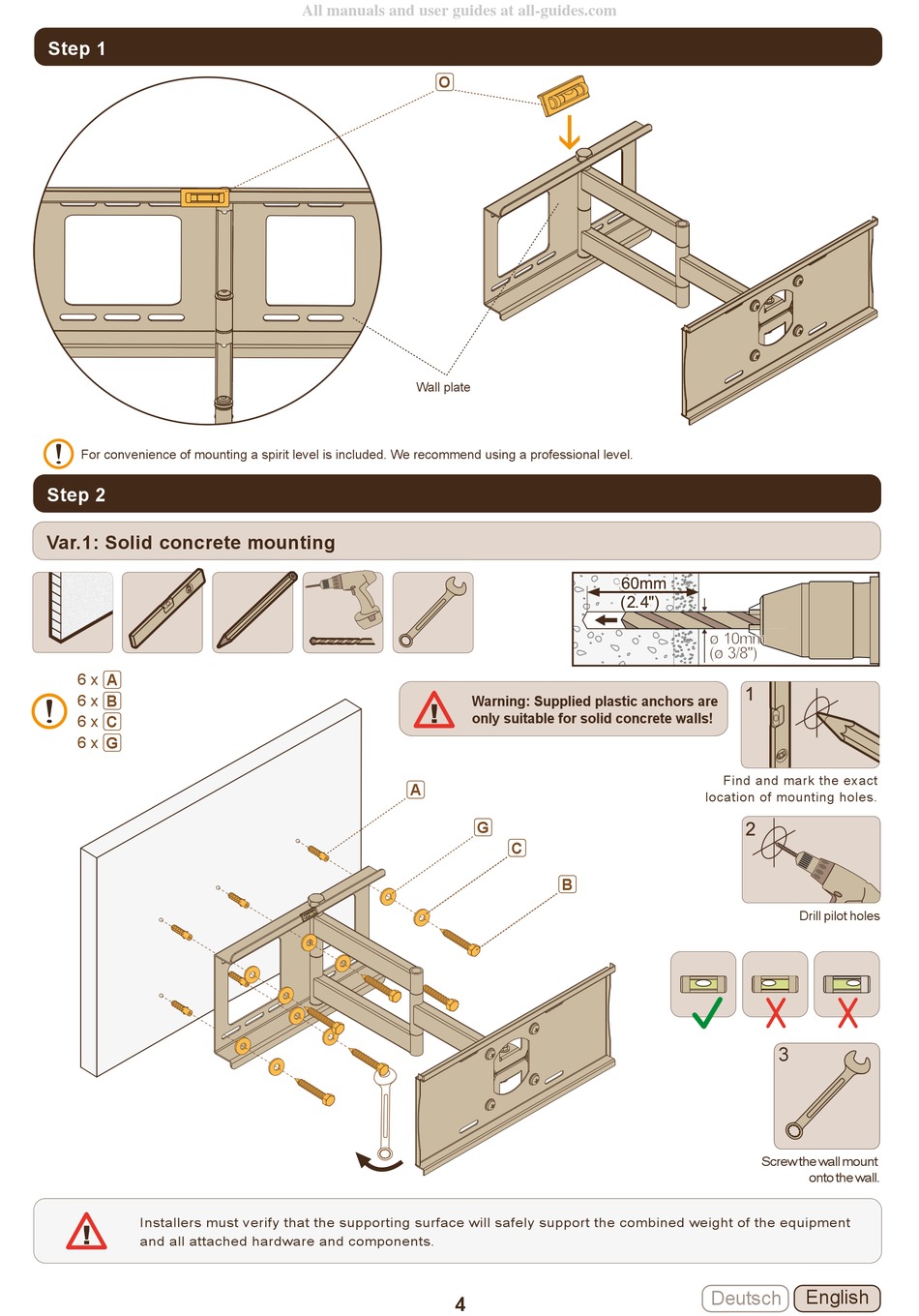

Step 1
For convenience of mounting a spirit level is included. We recommend using a professional level.
Step 2
Var.1: Solid concrete mounting
6 x
A
6 x
B
6 x
C
6 x
G
Installers must verify that the supporting surface will safely support the combined weight of the equipment
and all attached hardware and components.
All manuals and user guides at all-guides.com
O
Wall plate
Warning: Supplied plastic anchors are
only suitable for solid concrete walls!
A
4
G
C
B
Find and mark the exact
location of mounting holes.
Drill pilot holes
3
Screw the wall mount
onto the wall.
