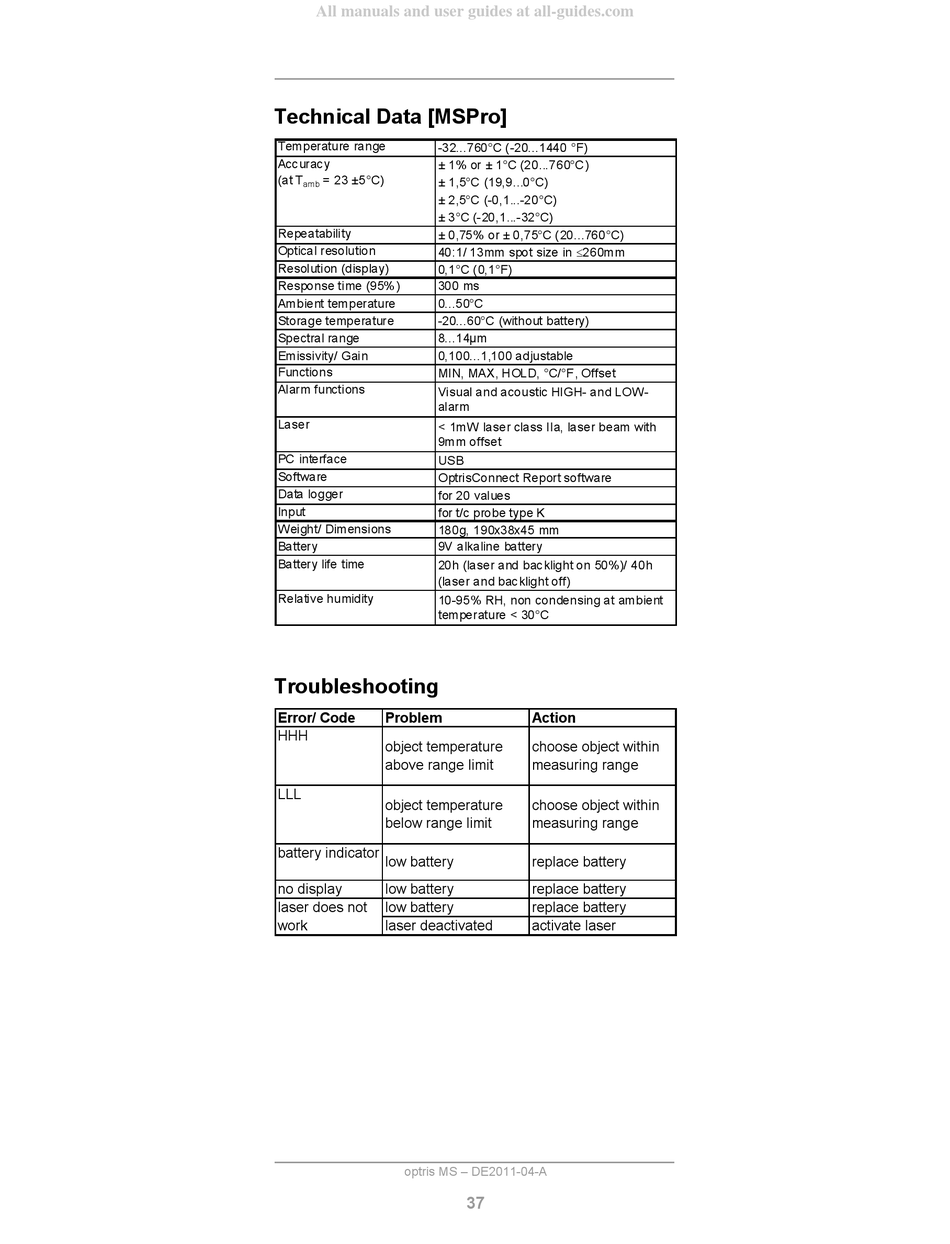

Technical Data [MSPro]
Temperature range
-32...760°C (-20...1440 °F)
Accuracy
± 1% or ± 1°C (20...760°C)
(at T = 23 ±5°C)
± 1,5°C (19,9...0°C)
amb
± 2,5°C (-0,1...-20°C)
± 3°C (-20,1...-32°C)
Repeatability
± 0,75% or ± 0,75°C (20...760°C)
Optical resolution 40:1/ 13mm spot size in 260mm
Resolution (display)
0,1°C (0,1°F)
Response time (95% ) 300 ms
Ambient temperature 0...50°C
Storage temperature -20...60°C (without battery)
Spectral range 8...14µm
Emissivity/ Gain 0,100...1,100 adjustable
Functions
MIN, MAX, HOLD, °C/°F, Offset
Alarm functions
Visual and acoustic HIGH- and LOW-
alarm
Laser
< 1mW laser class IIa, laser beam with
9mm offset
PC interface
USB
Software
OptrisConnect Report software
Data logger
for 20 values
Input
for t/c probe type K
Weight/ Dimensions
180g, 190x38x45 mm
Battery 9V alkaline battery
Battery life time
20h (laser and bac klight on 50%)/ 40h
(laser and bac klight off)
Relative humidity
10-95% RH, non condensing at ambient
temperature < 30°C
Troubleshooting
Error/ Code Problem
HHH
object temperature
above range limit
LLL
object temperature
below range limit
battery indicator
low battery
no display low battery
laser does not low battery
work laser deactivated
optris MS – DE2011-04-A
Action
choose object within
measuring range
choose object within
measuring range
replace battery
replace battery
replace battery
activate laser
