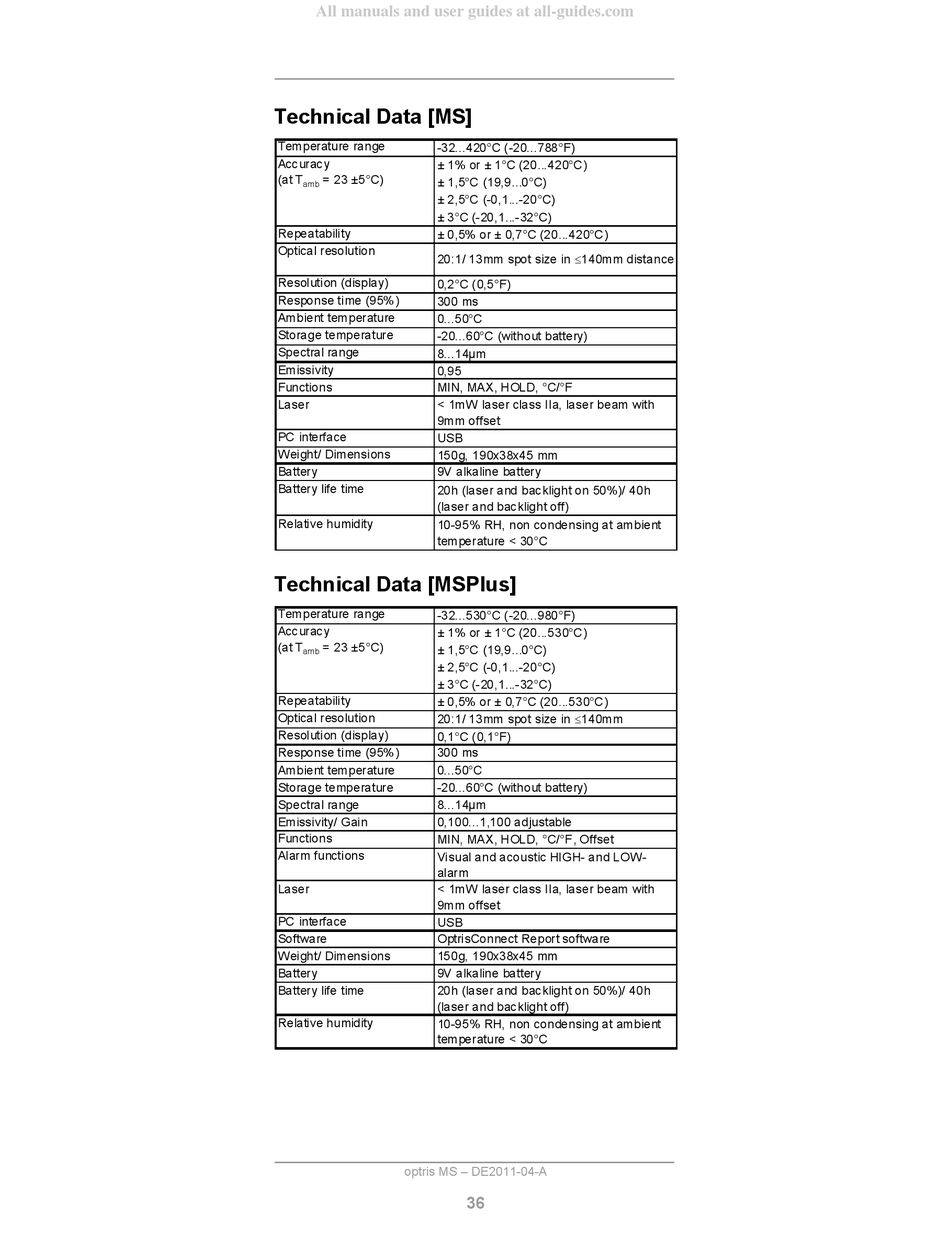

Technical Data [MS]
Temperature range
-32...420°C (-20...788°F)
Accuracy
± 1% or ± 1°C (20...420°C)
(at T = 23 ±5°C)
± 1,5°C (19,9...0°C)
amb
± 2,5°C (-0,1...-20°C)
± 3°C (-20,1...-32°C)
Repeatability
± 0,5% or ± 0,7°C (20...420°C)
Optical resolution
20:1/ 13mm spot size in 140mm distance
Resolution (display)
0,2°C (0,5°F)
Response time (95% )
300 ms
Ambient temperature
0...50°C
Storage temperature
-20...60°C (without battery)
Spectral range
8...14µm
Emissivity
0,95
Functions MIN, MAX, HOLD, °C/°F
Laser < 1mW laser class IIa, laser beam with
9mm offset
PC interface
USB
Weight/ Dimensions
150g, 190x38x45 mm
Battery 9V alkaline battery
Battery life time
20h (laser and backlight on 50%)/ 40h
(laser and backlight off)
Relative humidity
10-95% RH, non condensing at ambient
temperature < 30°C
Technical Data [MSPlus]
Temperature range
-32...530°C (-20...980°F)
Accuracy
± 1% or ± 1°C (20...530°C)
(at T = 23 ±5°C)
± 1,5°C (19,9...0°C)
amb
± 2,5°C (-0,1...-20°C)
± 3°C (-20,1...-32°C)
Repeatability
± 0,5% or ± 0,7°C (20...530°C)
Optical resolution 20:1/ 13mm spot size in 140mm
Resolution (display)
0,1°C (0,1°F)
Response time (95% ) 300 ms
Ambient temperature 0...50°C
Storage temperature -20...60°C (without battery)
Spectral range 8...14µm
Emissivity/ Gain 0,100...1,100 adjustable
Functions
MIN, MAX, HOLD, °C/°F, Offset
Alarm functions
Visual and acoustic HIGH- and LOW-
alarm
Laser < 1mW laser class IIa, laser beam with
9mm offset
PC interface
USB
Software OptrisConnect Report software
Weight/ Dimensions 150g, 190x38x45 mm
Battery 9V alkaline battery
Battery life time 20h (laser and backlight on 50%)/ 40h
(laser and backlight off)
Relative humidity
10-95% RH, non condensing at ambient
temperature < 30°C
