GEA Purger Betriebsanleitung Seite 13

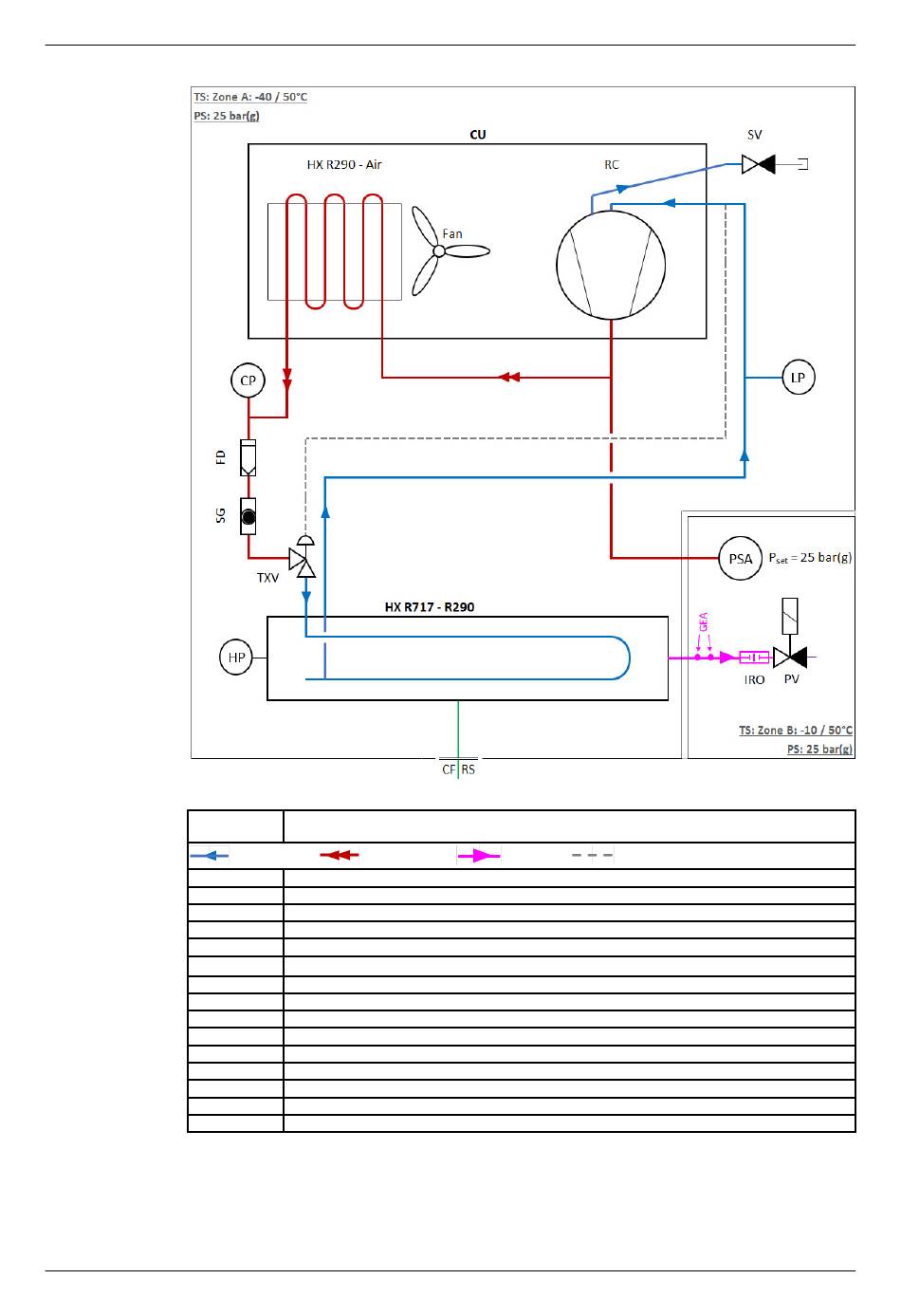

Abb.2:
P&ID Descrip-
tion
Bar(g)
CF RS
CP
CU
FD
HP
HX
LP
PSA
PV
RC
SG
SV
TXV
IRO
0089393_imm_purger_Propane_german_5
01.11.2021
Leitungs- und Instrumentendiagramm (P&ID) und Stromleitungsdiagramm
Piping & Instrumentation Diagram (P&ID) NC-Purger
Description
= Suction Lines | =Discharge lines |
gauge pressure
Connecting Flange Refrigeration System
Pressure Transmitter 0 - 25 Bar(g) (Danfoss), LP R290
Condensing Unit R290, Optyma SC10CNX (Danfoss)
Filter-dryer ¼" (Danfoss)
Pressure Transmitter 0 - 25 Bar(g) (Danfoss), HP R717 (ammonia, NH 3 )
Heat Exchanger
Pressure Transmitter -1 - 6 Bar(g) (Danfoss), CP R290
Safety Pressure Switch (electro-mechanic, KP7EB, Danfoss)
Purge Valve (Solenoid)
Refrigeration Compressor
Sightglass SGP 6s N
Schräder Valve F6
Thermostatic Expansion Valve (Danfoss)
Integrated Restriction Orifice
=Purge line | =Capillary line
EINLEITUNG
13
