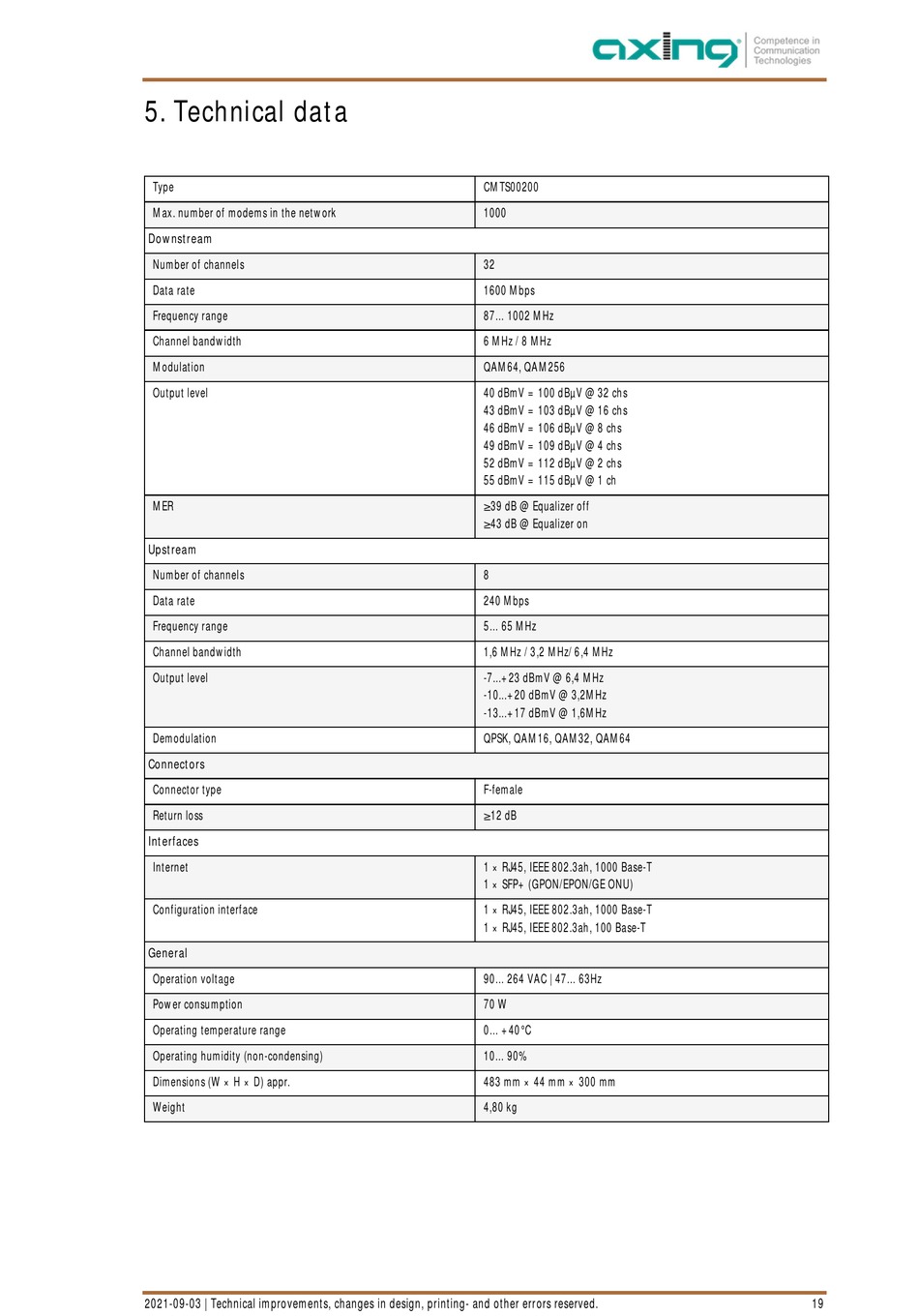

5. Technical data

Type
Max. number of modems in the network
Downstream
Number of channels
Data rate
Frequency range
Channel bandwidth
Modulation
Output level
MER
Upstream
Number of channels
Data rate
Frequency range
Channel bandwidth
Output level
Demodulation
Connectors
Connector type
Return loss
Interfaces
Internet
Configuration interface
General
Operation voltage
Power consumption
Operating temperature range
Operating humidity (non-condensing)
Dimensions (W × H × D) appr.
Weight
2021-09-03 | Technical improvements, changes in design, printing- and other errors reserved.
CMTS00200
1000
32
1600 Mbps
87...1002 MHz
6 MHz / 8 MHz
QAM64, QAM256
40 dBmV = 100 dBµV @ 32 chs
43 dBmV = 103 dBµV @ 16 chs
46 dBmV = 106 dBµV @ 8 chs
49 dBmV = 109 dBµV @ 4 chs
52 dBmV = 112 dBµV @ 2 chs
55 dBmV = 115 dBµV @ 1 ch
≥39 dB @ Equalizer off
≥43 dB @ Equalizer on
8
240 Mbps
5...65 MHz
1,6 MHz / 3,2 MHz/ 6,4 MHz
-7...+23 dBmV @ 6,4 MHz
-10...+20 dBmV @ 3,2MHz
-13...+17 dBmV @ 1,6MHz
QPSK, QAM16, QAM32, QAM64
F-female
≥12 dB
1 × RJ45, IEEE 802.3ah, 1000 Base-T
1 × SFP+ (GPON/EPON/GE ONU)
1 × RJ45, IEEE 802.3ah, 1000 Base-T
1 × RJ45, IEEE 802.3ah, 100 Base-T
90...264 VAC | 47...63Hz
70 W
0...+40°C
10...90%
483 mm × 44 mm × 300 mm
4,80 kg
