Operation instructions | CMTS 2-00 | Cable Modem Termination System

2.5. RJ45 configuration interface MGMT

A Cat.5 cable with RJ45 connectors is used for the RJ45 configuration interface.
èInsert a plug into the RJ-45 socket of the Ethernet interface of the PC or switch.
èInsert the other plug into the RJ-45 socket of the RJ45 configuration interface MGMT.

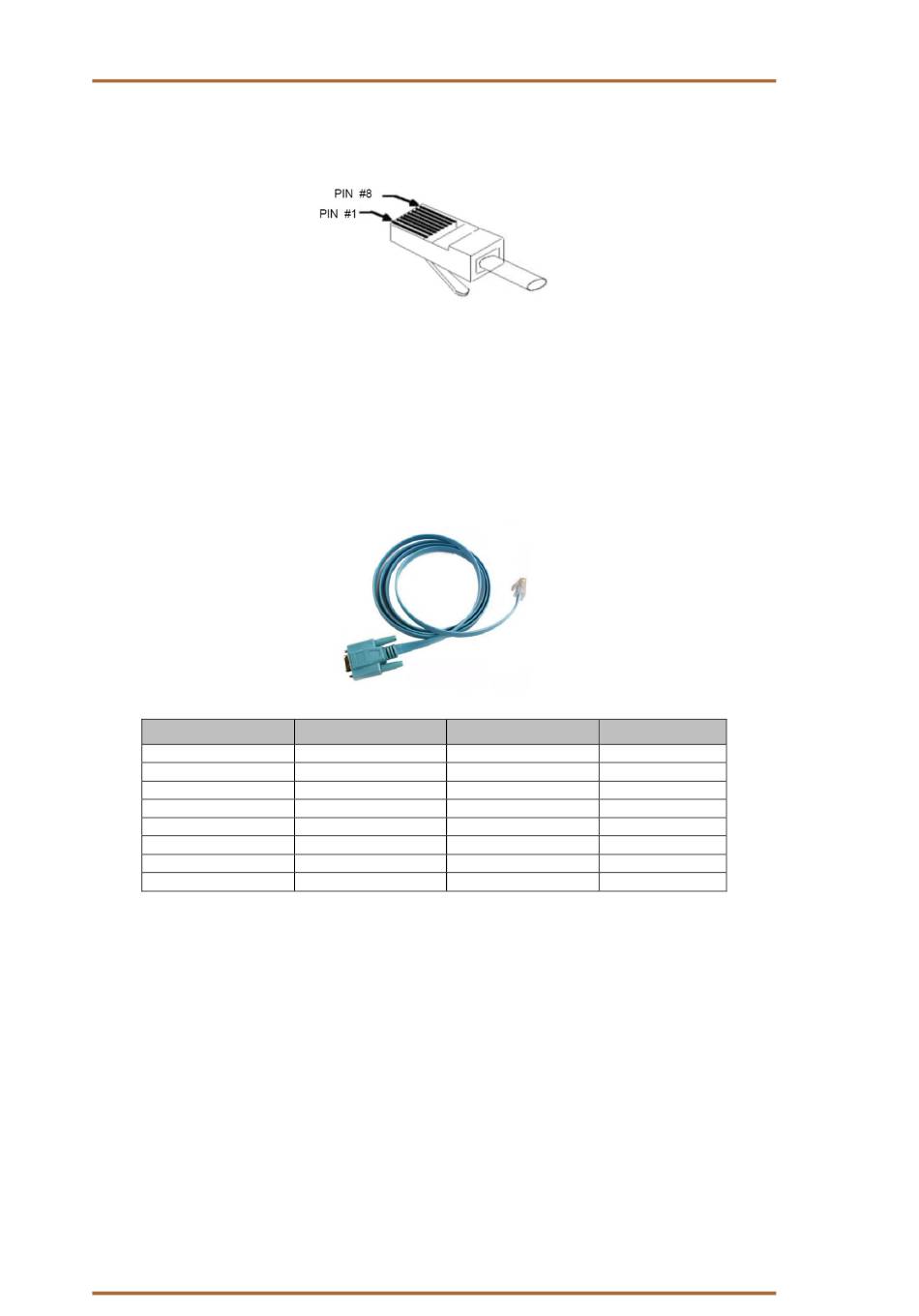

2.6. Serial configuration interface Console

For a serial connection between PC and CMTS 2-00 an 8-wire shielded cable with RJ-45 male and Sub-D 9
female connector is used.
RJ45
1
2
3
4
5
6
7
8
èInsert the Sub-D 9 socket into the serial port of the PC.
èInsert the RJ-45 connector into the serial configuration interface Console on the CMTS 2-00.
12
Signal
RTS
DTR
TXD
SG
SG
RXD
DSR
CTS
2021-09-03 | Technical improvements, changes in design, printing- and other errors reserved.
Sub-D 9 Signal
8 CTS
6 DSR
2 RXD
5 SG
5 SG
3 TXD
4 DTR
7 RTS
