2. Mounting and Installation

è Installation must be performed by authorized and skilled electricians only.
è The headend must only be operated indoors.
è Before mounting and installation, pull the mains plug!
è The DVB-C network must be installed and grounded according to the EN 60728-11 standard.
è Install the device in compliance with the safety regulations defined by the EN 60728-11 standard.

2.1. Mounting in a 19" rack

Notes:
·
In order to allow sufficient heat dissipation, there must be sufficient space (more than 10 cm) at the fan
inlet on the back of the device.
·
There must also be at least 5 cm free space in front of the unit.
·
If necessary, there should be space underneath the unit to route the connected cables to the rear.
è Slide the device into the 19 "rack.

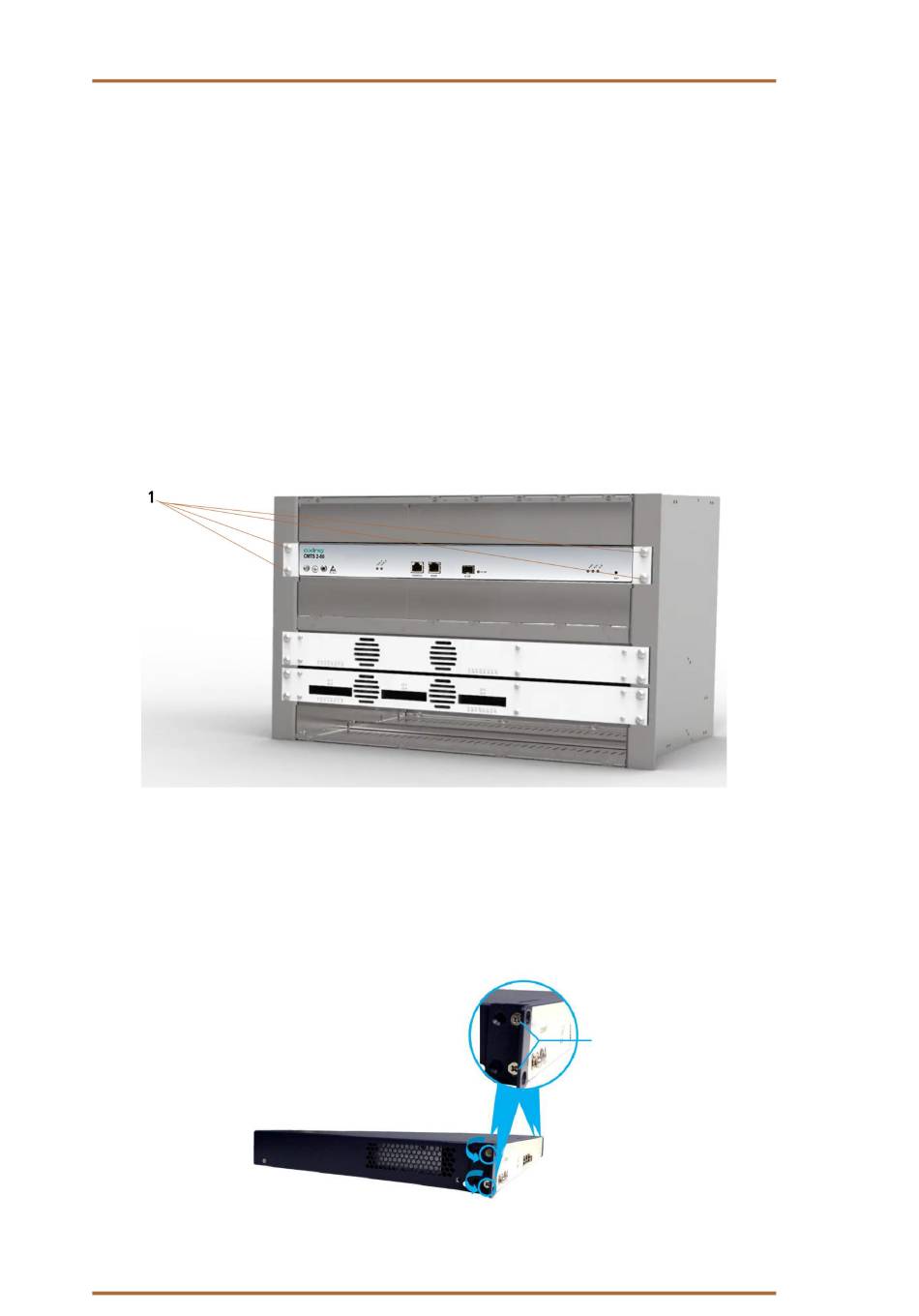

è Screw the device with four screws (1).
è Install the device in compliance with the safety regulations defined by the EN 60728-11 standard.

2.1.1. Removing the 19" mounting brackets

If the device is not installed in a 19" rack, the mounting brackets can be removed.
èRemove the two screws of each mounting bracket counterclockwise.
èKeep the mounting brackets and screws for later use.
8
2021-09-03 | Technical improvements, changes in design, printing- and other errors reserved.
Screws of the mounting brackets
