4.3.3 Connecting the drives

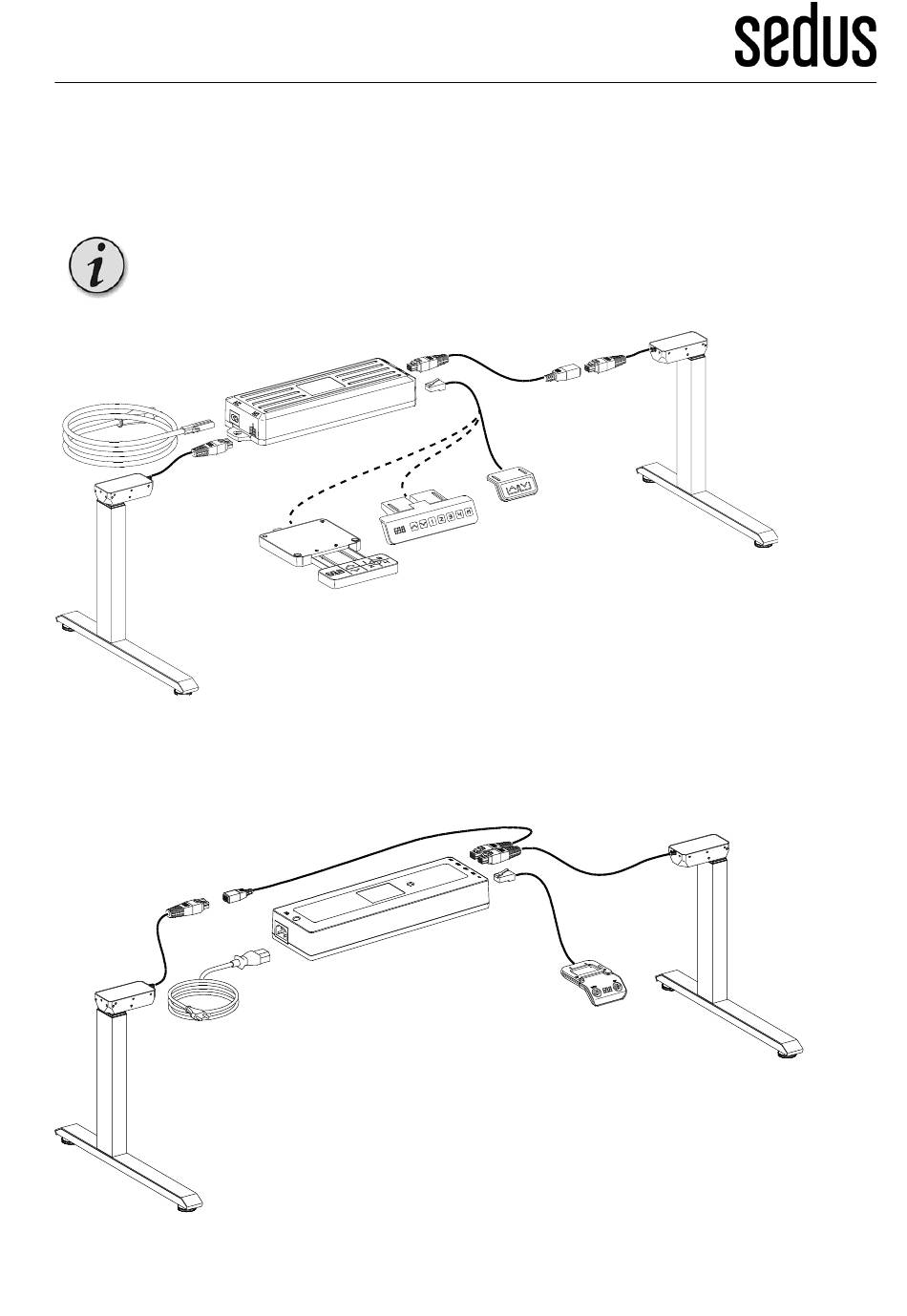

The desk must be connected as shown in Figure 4.2.3. Establish the connection between the drives and the
control unit by means of the motor cables. The plug connections at the 6-pole motor sockets must snap
securely into place!
Note: When connecting the motor cables, the order M1, M2 must be adhered to under all
circumstances!
Mains cable
Motor cable
Motor cable
Mains cable
Control box
Control element
memory sliding
Extension cable
Control box
Extension cable
Motor cable
Control
element
up/down
Control element
memory fixed
Figure 4.3.3
Motor cable
Control element
2-speed up/down
Figure 4.3.4
