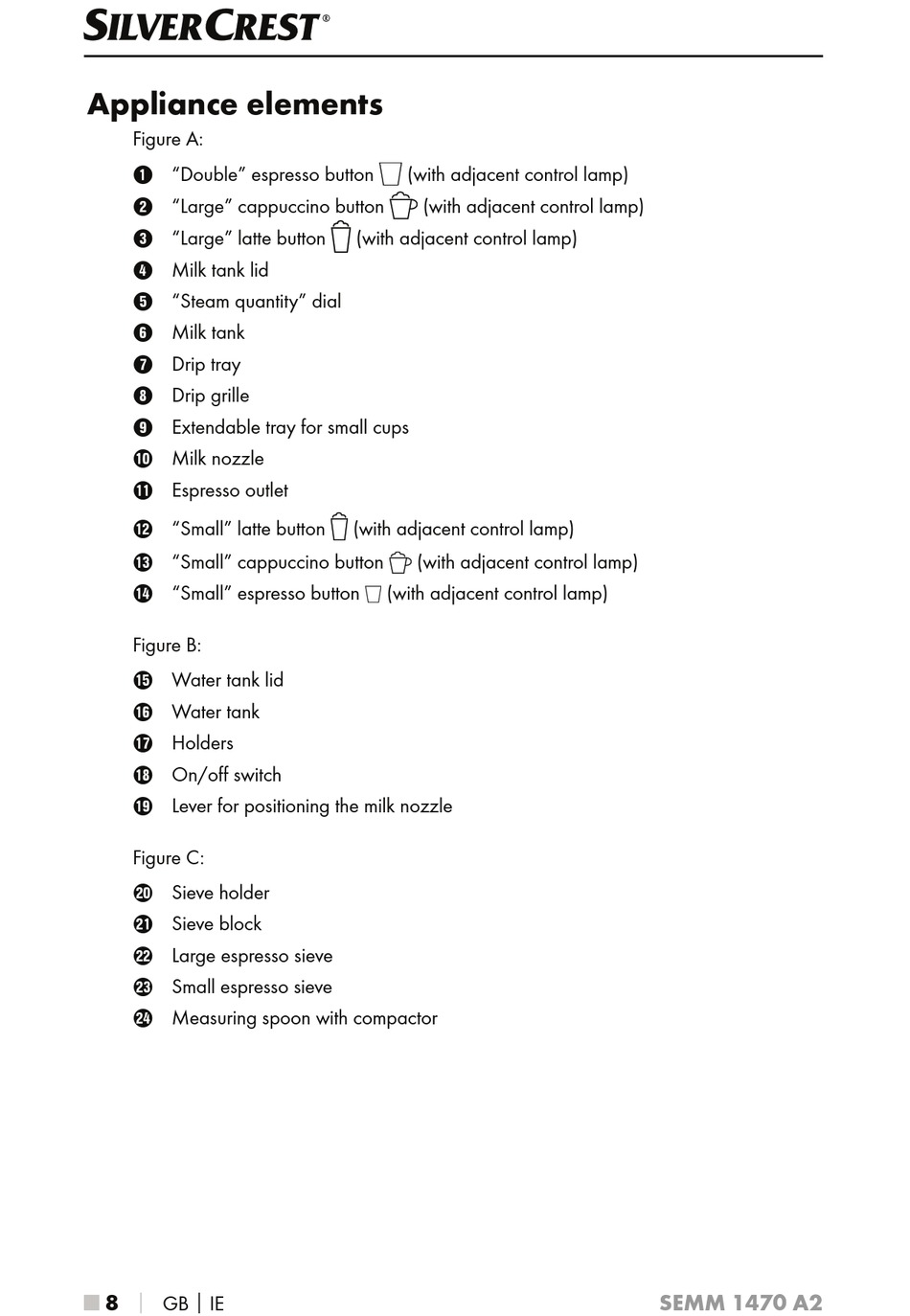

Appliance elements

Figure A:
1 "Double" espresso button (with adjacent control lamp)
2 "Large" cappuccino button (with adjacent control lamp)
3 "Large" latte button (with adjacent control lamp)
4 Milk tank lid
5 "Steam quantity" dial
6 Milk tank
7 Drip tray
8 Drip grille
9 Extendable tray for small cups
0 Milk nozzle
q Espresso outlet
w "Small" latte button (with adjacent control lamp)
e "Small" cappuccino button (with adjacent control lamp)
r "Small" espresso button (with adjacent control lamp)
Figure B:
t Water tank lid
z Water tank
u Holders
i On/off switch
o Lever for positioning the milk nozzle
Figure C:
p Sieve holder
a Sieve block
s Large espresso sieve
d Small espresso sieve
f Measuring spoon with compactor
│ GB │ IE
■ 8 SEMM 1470 A2
