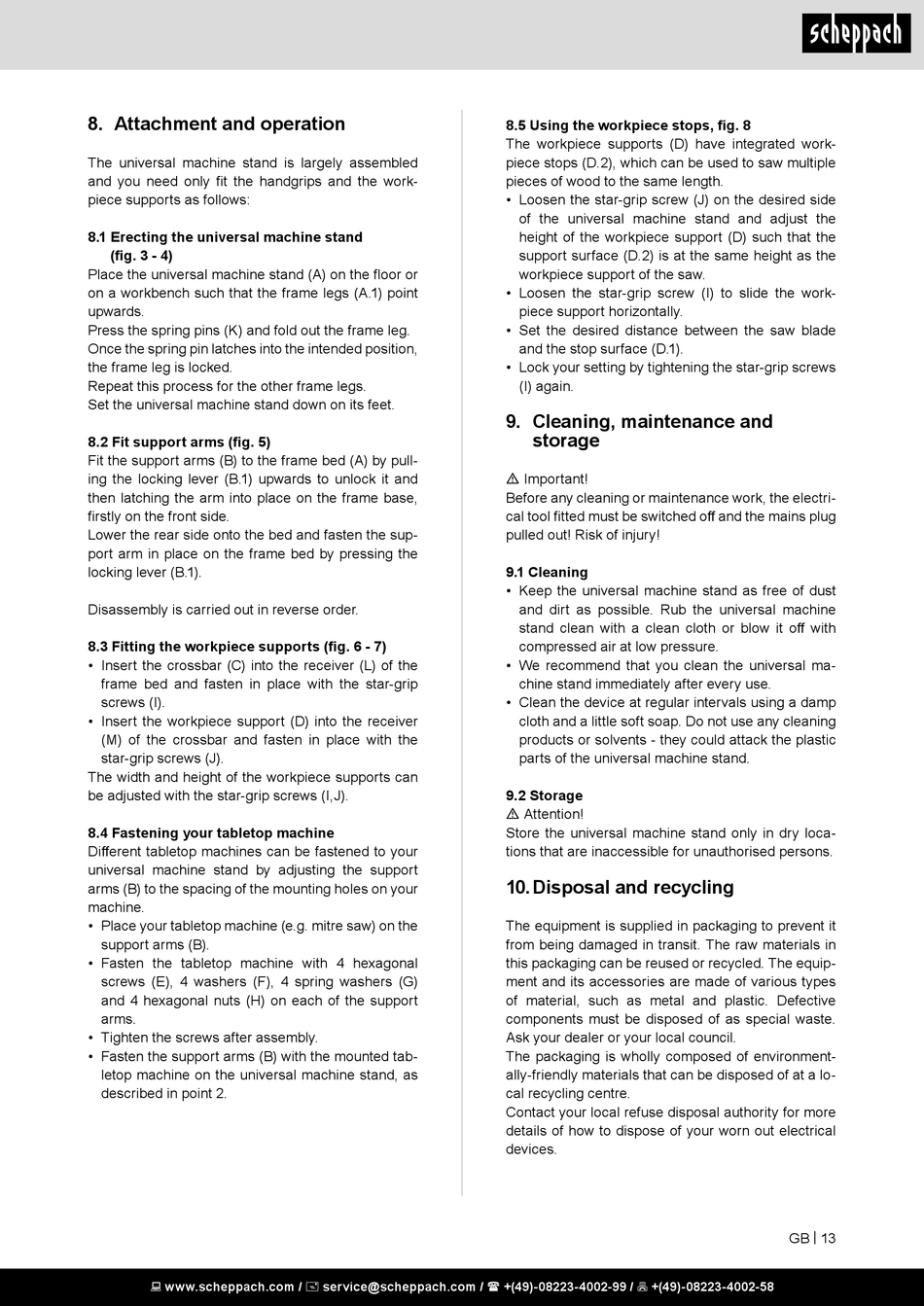

8. Attachment and operation

The universal machine stand is largely assembled
and you need only fit the handgrips and the work-
piece supports as follows:
8.1 Erecting the universal machine stand
(fig. 3 - 4)
Place the universal machine stand (A) on the floor or
on a workbench such that the frame legs (A.1) point
upwards.
Press the spring pins (K) and fold out the frame leg.
Once the spring pin latches into the intended position,
the frame leg is locked.
Repeat this process for the other frame legs.
Set the universal machine stand down on its feet.
8.2 Fit support arms (fig. 5)
Fit the support arms (B) to the frame bed (A) by pull-
ing the locking lever (B.1) upwards to unlock it and
then latching the arm into place on the frame base,
firstly on the front side.
Lower the rear side onto the bed and fasten the sup-
port arm in place on the frame bed by pressing the
locking lever (B.1).
Disassembly is carried out in reverse order.
8.3 Fitting the workpiece supports (fig. 6 - 7)
• Insert the crossbar (C) into the receiver (L) of the
frame bed and fasten in place with the star-grip
screws (I).
• Insert the workpiece support (D) into the receiver
(M) of the crossbar and fasten in place with the
star-grip screws (J).
The width and height of the workpiece supports can
be adjusted with the star-grip screws (I,J).
8.4 Fastening your tabletop machine
Different tabletop machines can be fastened to your
universal machine stand by adjusting the support
arms (B) to the spacing of the mounting holes on your
machine.
• Place your tabletop machine (e.g. mitre saw) on the
support arms (B).
• Fasten the tabletop machine with 4 hexagonal
screws (E), 4 washers (F), 4 spring washers (G)
and 4 hexagonal nuts (H) on each of the support
arms.
• Tighten the screws after assembly.
• Fasten the support arms (B) with the mounted tab-
letop machine on the universal machine stand, as
described in point 2.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
8.5 Using the workpiece stops, fig. 8
The workpiece supports (D) have integrated work-
piece stops (D.2), which can be used to saw multiple
pieces of wood to the same length.
• Loosen the star-grip screw (J) on the desired side
of the universal machine stand and adjust the
height of the workpiece support (D) such that the
support surface (D.2) is at the same height as the
workpiece support of the saw.
• Loosen the star-grip screw (I) to slide the work-
piece support horizontally.
• Set the desired distance between the saw blade
and the stop surface (D.1).
• Lock your setting by tightening the star-grip screws
(I) again.
9. Cleaning, maintenance and
storage
m Important!
Before any cleaning or maintenance work, the electri-
cal tool fitted must be switched off and the mains plug
pulled out! Risk of injury!
9.1 Cleaning
• Keep the universal machine stand as free of dust
and dirt as possible. Rub the universal machine
stand clean with a clean cloth or blow it off with
compressed air at low pressure.
• We recommend that you clean the universal ma-
chine stand immediately after every use.
• Clean the device at regular intervals using a damp
cloth and a little soft soap. Do not use any cleaning
products or solvents - they could attack the plastic
parts of the universal machine stand.
9.2 Storage
m Attention!
Store the universal machine stand only in dry loca-
tions that are inaccessible for unauthorised persons.

10. Disposal and recycling

The equipment is supplied in packaging to prevent it
from being damaged in transit. The raw materials in
this packaging can be reused or recycled. The equip-
ment and its accessories are made of various types
of material, such as metal and plastic. Defective
components must be disposed of as special waste.
Ask your dealer or your local council.
The packaging is wholly composed of environment-
ally-friendly materials that can be disposed of at a lo-
cal recycling centre.
Contact your local refuse disposal authority for more
details of how to dispose of your worn out electrical
devices.
