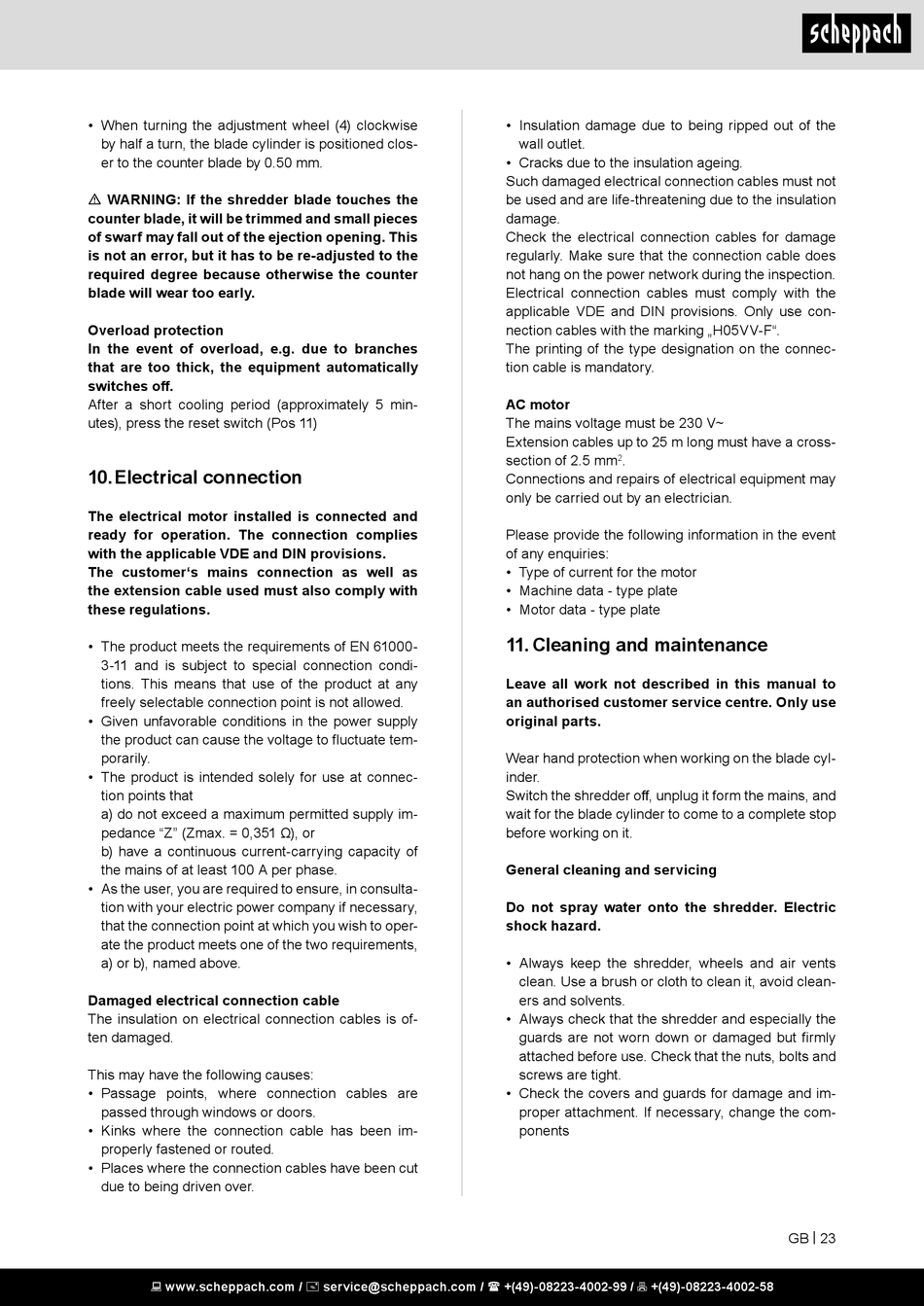

• When turning the adjustment wheel (4) clockwise
by half a turn, the blade cylinder is positioned clos-
er to the counter blade by 0.50 mm.
m WARNING: If the shredder blade touches the
counter blade, it will be trimmed and small pieces
of swarf may fall out of the ejection opening. This
is not an error, but it has to be re-adjusted to the
required degree because otherwise the counter
blade will wear too early.
Overload protection
In the event of overload, e.g. due to branches
that are too thick, the equipment automatically
switches off.
After a short cooling period (approximately 5 min-
utes), press the reset switch (Pos 11)

10. Electrical connection

The electrical motor installed is connected and
ready for operation. The connection complies
with the applicable VDE and DIN provisions.
The customer's mains connection as well as
the extension cable used must also comply with
these regulations.
• The product meets the requirements of EN 61000-
3-11 and is subject to special connection condi-
tions. This means that use of the product at any
freely selectable connection point is not allowed.
• Given unfavorable conditions in the power supply
the product can cause the voltage to fluctuate tem-
porarily.
• The product is intended solely for use at connec-
tion points that
a) do not exceed a maximum permitted supply im-
pedance "Z" (Zmax. = 0,351 Ω), or
b) have a continuous current-carrying capacity of
the mains of at least 100 A per phase.
• As the user, you are required to ensure, in consulta-
tion with your electric power company if necessary,
that the connection point at which you wish to oper-
ate the product meets one of the two requirements,
a) or b), named above.
Damaged electrical connection cable
The insulation on electrical connection cables is of-
ten damaged.
This may have the following causes:
• Passage points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been im-
properly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
• Insulation damage due to being ripped out of the
wall outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage
regularly. Make sure that the connection cable does
not hang on the power network during the inspection.
Electrical connection cables must comply with the
applicable VDE and DIN provisions. Only use con-
nection cables with the marking „H05VV-F".
The printing of the type designation on the connec-
tion cable is mandatory.
AC motor
The mains voltage must be 230 V~
Extension cables up to 25 m long must have a cross-
section of 2.5 mm .
2
Connections and repairs of electrical equipment may
only be carried out by an electrician.
Please provide the following information in the event
of any enquiries:
• Type of current for the motor
• Machine data - type plate
• Motor data - type plate

11. Cleaning and maintenance

Leave all work not described in this manual to
an authorised customer service centre. Only use
original parts.
Wear hand protection when working on the blade cyl-
inder.
Switch the shredder off, unplug it form the mains, and
wait for the blade cylinder to come to a complete stop
before working on it.
General cleaning and servicing
Do not spray water onto the shredder. Electric
shock hazard.
• Always keep the shredder, wheels and air vents
clean. Use a brush or cloth to clean it, avoid clean-
ers and solvents.
• Always check that the shredder and especially the
guards are not worn down or damaged but firmly
attached before use. Check that the nuts, bolts and
screws are tight.
• Check the covers and guards for damage and im-
proper attachment. If necessary, change the com-
ponents
