Commissioning, Operation - Cleanfix SW 60 Bedienungsanleitung

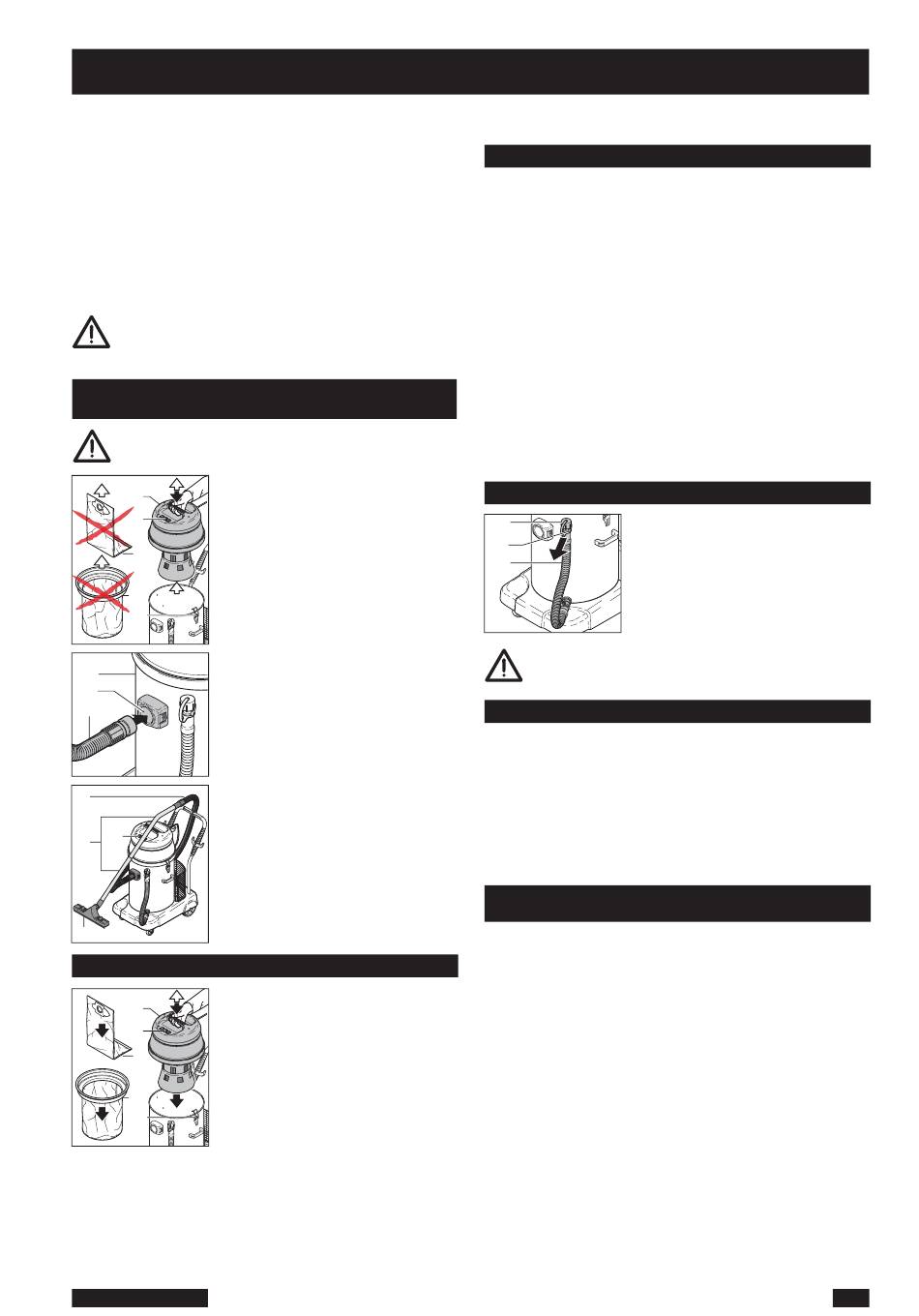

Commissioning / Operation
Make sure that the voltage indicated on the identi-
●
fication plate is the same as that available in the buil-
ding and that the socket has an earth wire. The machine
is to be connected to a 230V 1N-, 16A socket.
Depending on working location, equip machine with
●
its best possible vacuum-combination.
Depending on the surface to be cleaned, you can use
●
1, 2 or 3 motors I. II or III. Switch to run.
When used as a water vacuum cleaner, must always
before the appliance is put into operation; the
Cloth dust filter (17) and Dustbags (h) must be removed.
1. Equipment as a water vacuum cleaner
with flexible nozzle
In no case shall be drawn with large Cloth dust filter
or paper filter bag water. Capital losses can result.
☞
4
3
☞
h
☞
17
10
☞
5
6
☞ Suction hose (a) in the hose
a
connection (6) to the boiler (5)
connect.
☞ The stainless steel tubes (b)
together and connect to the
a
suction hose (a).
☞ Wrap
3
b
completely. Install the required
accessories (eg water suction (c).
☞ Now you may proceed with
c
2. Conversion to a dust vacuum cleaner
☞
4
3
h
☞
☞
17
10
☞
into position and adjust by and close the boiler clips (10).
Depending on working location, equip machine with its
☞
best possible vacuum-combination ( d, e, f oder g ).
Now you may proceed with vacuum cleaning by
☞
pressing the main switch (3) on, 1, 2 or 3
Motoren.
SW 60 - Englisch
Vacuum switch Off (3). The
2-tank clips open (10) and motor
head (4) lift off.
Remove the filter cloth (17) and
possibly dust bag (h).
Before you wet vacuum should
the tank be empty and clean.
Place the motor housing (4) back
into position and adjust by and
close the boiler clips
the power cord
vacuum cleaning by pressing
the main switch (3) on, 1, 2 or 3
Motoren.
Vacuum switch Off (3). The
2-tank clips open (10) and motor
head (4) lift off.
Filter cloth insert (17).
For reasons of hygiene, it is
advisable to employ a paper
filter bag (h).
Place the motor housing (4) back
3. Emptying the tank
When the fluids have reached the highest permitted
☞
level in the tank float valve automatically blocks
suction and the motor gets noisier. In this case, switch
off the vacuum cleaner immediately, pull the plug, re-
move the motor bonnet from the tank and empty the tank.
After an operation, you go to empty the vacuum
☞
cleaner to a waste disposal or toilet.
Vacuum switch Off (3). The 2-tank clips open (10) and
☞
motor head (4) lift off.
Suction hose to the hose connection boiler decrease
☞
(6).
Empty the tank by tilting.
☞
Suction hose (a) Connect the hose connector (6) on the
☞
boiler (5) again.
Place the motor housing (4) back into position and
☞
adjust by and close the boiler clips (10).
The appliance is ready again for operation.
☞
4. Dirt Water emptying with drain hose
14
X
13
After finishing the cap (14) must be screwed
(10).
hermetically.
5. Importand instructions for maintenance
Motor housing (7) carefully on tank (8) so a tight seal is
●
ensured.
Check seal on the suction head at regular intervalls.
●
Keep wheels clean (11) and lightly oil or grease as
●
required.
(9)
After the use of the vacuum cleaner to float valve and
●
filter basket
Shake out dust filter (k) - do not wash.
●
6. Information on commissioning, use and
maintenance
If the appliance used commercially, it should only be
●
operated by
The cleaner must be protected with a circuit breaker of
●
the type "L" with a rated current of 10 A or fuse 10 A.
Keep your vacuum cleaner sources of heat such as an
●
oven, hob, etc. away.
No razor blades or nails, etc. and combustible or
●
explosive substances suck.
In order to clean and maintain the machine, replace
●
parts or convert to alternative functioning, the motor
should be switched off and the plug removed from the
mains socket.
The mains cable must not be damaged by running
●
over it, crushing or similar activities. It should be
regulary checked for signs of damage or ageing. If ist
condition is not impeccable, the machine should not
be used.
When employing or replacing connection or extensi-
●
on cables, one must adhere strictly to the instructions
of the appliance manufacturer.
Remove drain hose (13) from the
☞
support.
Unscrew cap (14).
☞
Emptying the tank (5).
☞
and the boiler clean
persons instructed
and dry.
in use.
8
