4. STARTING

If there is a line valve, open it completely.
Connect the electrical panel plug into a socket. If there
is an appropriate level of water, the motor will
immediately start up.
Check that the absorbed current is the same as
marked on the name plate.
If the motor does not start or no water flows at the
end of the line, try to find the anomaly using the
troubleshooting guide in point 8.
In the case of three-phase pumps check that the
turning direction corresponds to the direction marked
by the arrow situated in the suction cone.
Contact with the rotating impeller may cause
serious injury.

5. MAINTENANCE

Disconnect the pump from the mains before
performing any operation whatsoever.
Under normal conditions
require no special or planned maintenance.
During frosty periods, remember to drain the
line.
If the pump is not going to be operated for a
long period of time, it is recommended to
remove the tank, clean it and store it in a dry,
well ventilated place.
To unclog or clean the impeller, it is only
necessary to raise the suction cone. To do
this, unscrew the screws that fasten the legs.
The cover assembly must come off as a
whole (fig.4).
On the DRAINCOR, a 0.3 mm gauge must be
used when refitting to align the turbine with the
suction base (fig.4). For correct alignment of
the turbine, refer to the screws "A" marked on
that drawing.
ATTENTION: In the event of faults or
damage occurring to the pump, repairs
should only be carried out by an authorised
service agent.
The Official Technical
www.espa.com.

6. DISPOSING OF THE PRODUCT

When the pump is eventually disposed of, please
note that it contains no toxic or polluting material.
All main components are material identified to allow
selective disposal.
This product or parts of it must be disposed of in an
environmentally sound
collection service. If this is not possible, contact the
nearest ESPA service workshop.
these pumps
Services list is in
way, use the waste

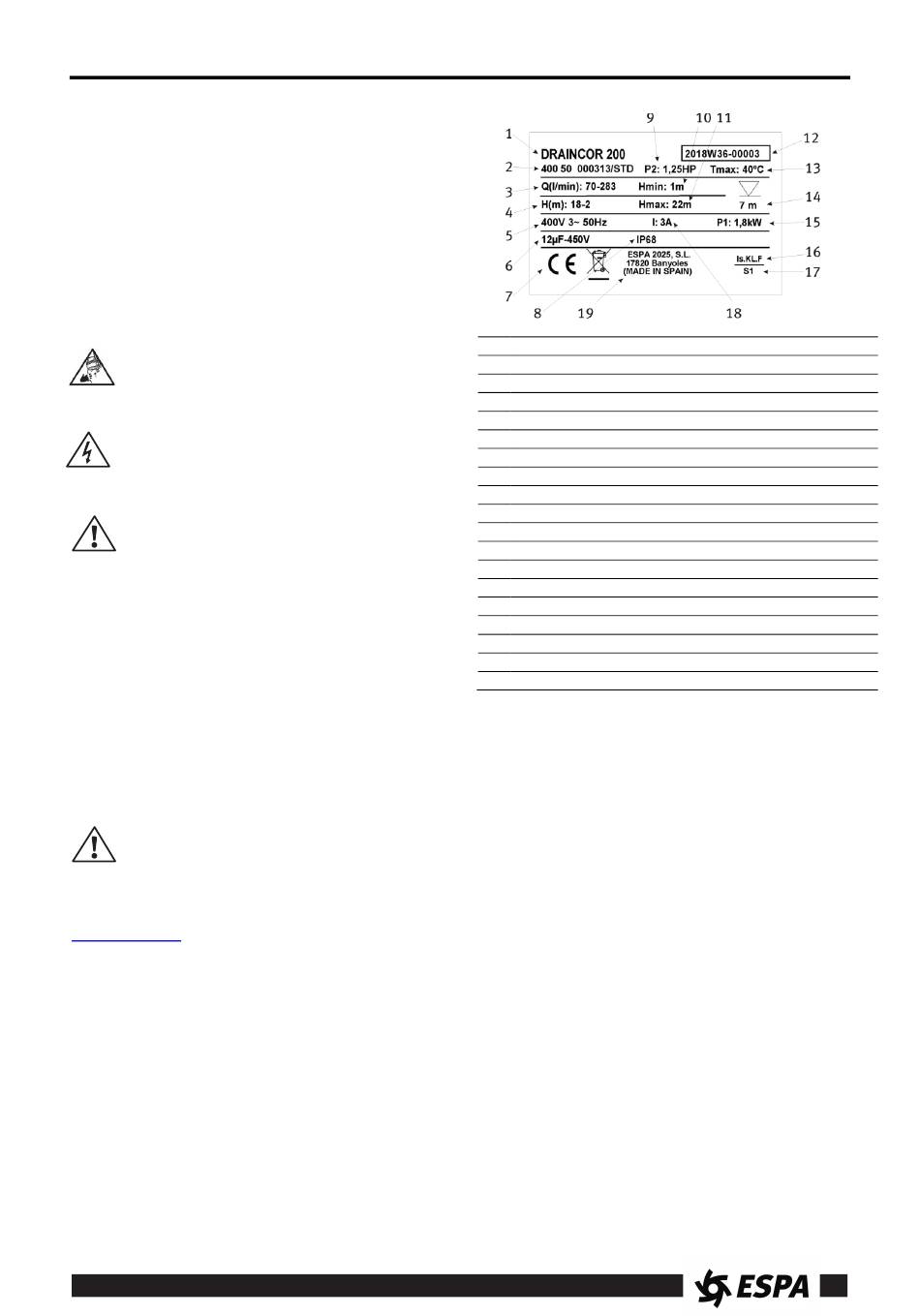

7. PLATE SHOWING CHARACTERISTICS
DESCRIPTION
1 Item reference
2 Voltage + frequency + item specifications
3 Flow
4 Pressure
5 Nominal voltage, no. stages, alternate current symbol and frequency
6 Capacitor (Single-phase model)
7 EC mark
8 Humidity protection level
9 Motor max. nominal output (P2)
10 Minimum working pressure
11 Maximum pressure
12 Year and week of manufacture + Pump serial number
13 Max. liquid temperature
14 Max. immersed depth
15 Electric pump unit absorbed power (P1)
16 Designated motor insulation
17 Continuous operation symbol
18 Maximum nominal intensity at nominal voltage
19 Name and address of vendor responsible for the product
