Brown 6

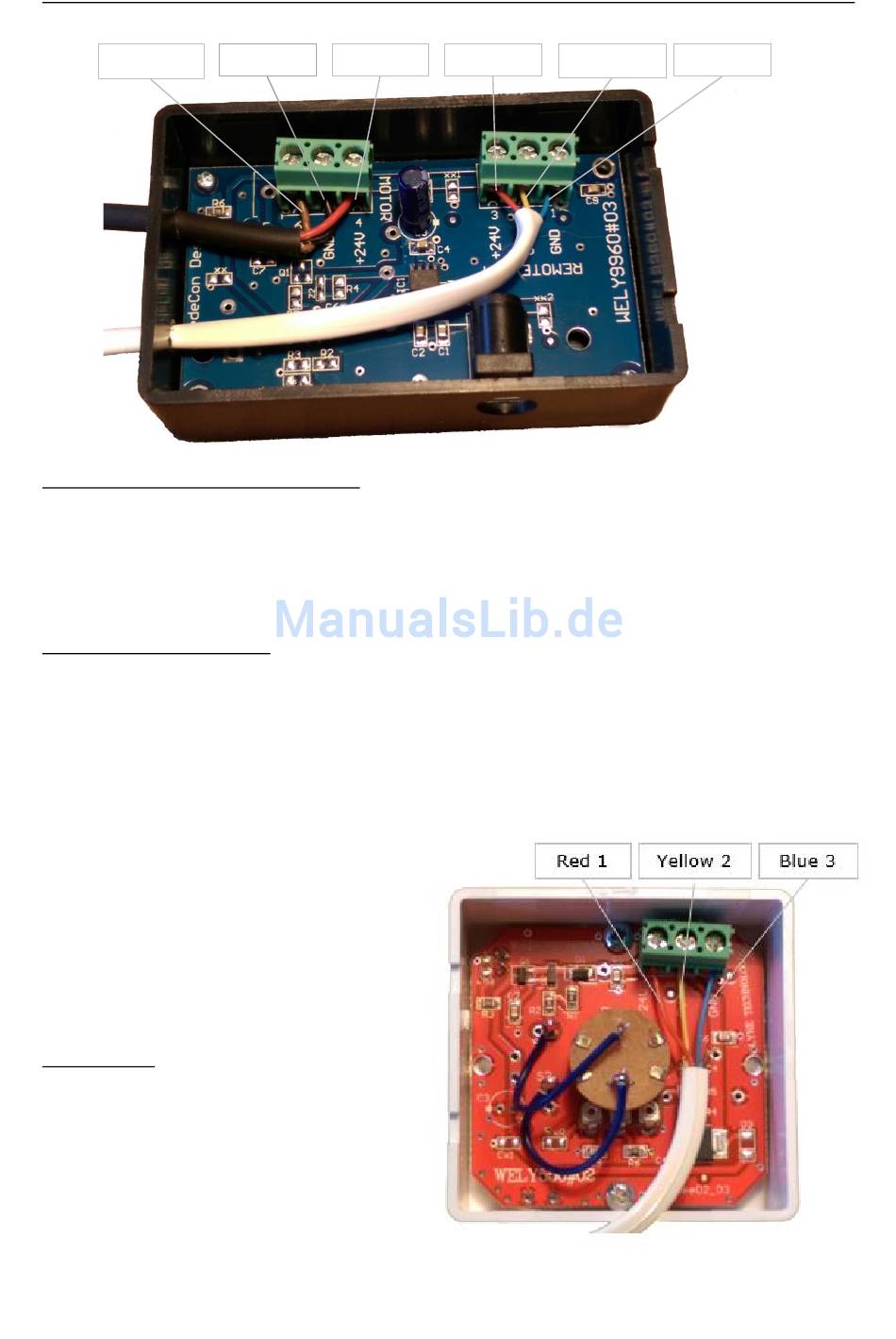

Mounting of control cable to control box:
Put the white control cable through the other opening in the side of the control box and mount the
cords as described below:
- Blue cord in no. 1 terminal (GND)
- Yellow cord in no. 2 terminal (CTRL)
- Red cord in no. 3 terminal (24V+)
Mounting of speed regulator:
The white control cable is run through the loft and through the floor to the wanted location for the
speed regulator. This can be done through the chimney's loft collar/top and down along the wall to the
wood burning stove.
The white control cable is mounted on the speed regulator by removing the back of the speed
regulator and mounting the cords as described below:
-
Red cord in no. terminal (24V+)
- Yellow cord in no. 2 terminal (CTRL)
- Blue cord in no. 3 terminal (GND)
The white control cable is placed in the cable
slit before the back is clicked back on. The
speed regulator can then be mounted on the
wall with self-adhesive tape or screws.
Note: The speed regulator cannot be
mounted outside
Power supply:
Finally, put the plug from the power supply in
the control box, and connect the power supply
to a switched on socket outlet. Now, the Aduro
DraftOptimizer is ready for use.
Black 5 Red 4 Red 3 Yellow 2
19
Blue 1
