Maintaining the chain
Sharpening the chain
Special tools are required to sharpen the chain; these
ensure that the cutting tools are sharpened at the
correct angle and to the correct depth. We recom-
mend that inexperienced chainsaw users have the
saw chain sharpened by a specialist at the nearest
customer service location. If you are confident with
sharpening your own saw chain, procure the special
tools from professional customer service.
Sharpening the chain
Wear safety gloves when sharpening the chain.
All cutting links must have the same width and
length after sharpening.
m NOTE
A sharp chain generates well-shaped chips. If the
chain starts to generate sawdust, it must be sharp-
ened.

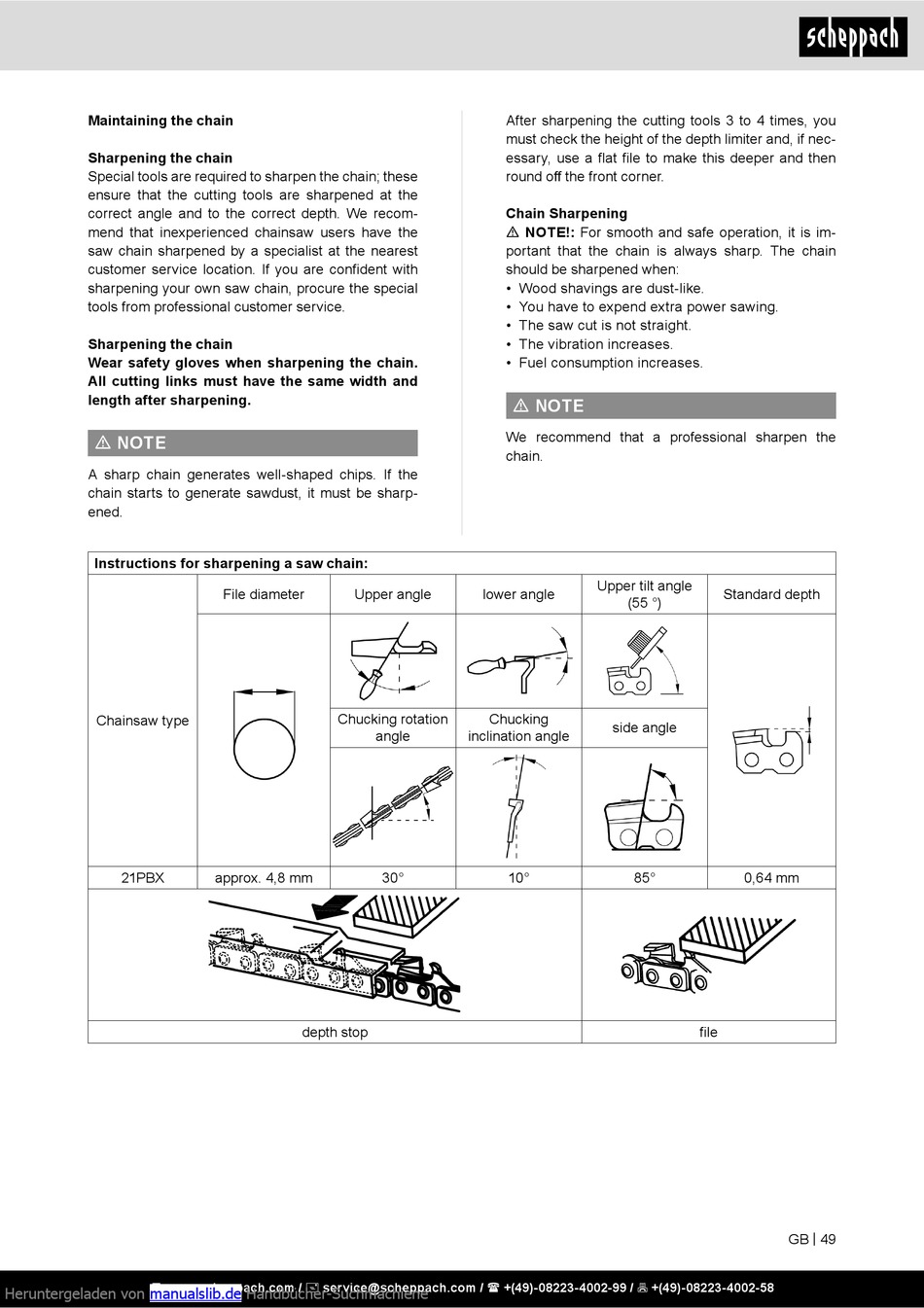

Instructions for sharpening a saw chain:
Chainsaw type
21PBX
