CHOKE
ON
34 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Heruntergeladen von manualslib.de

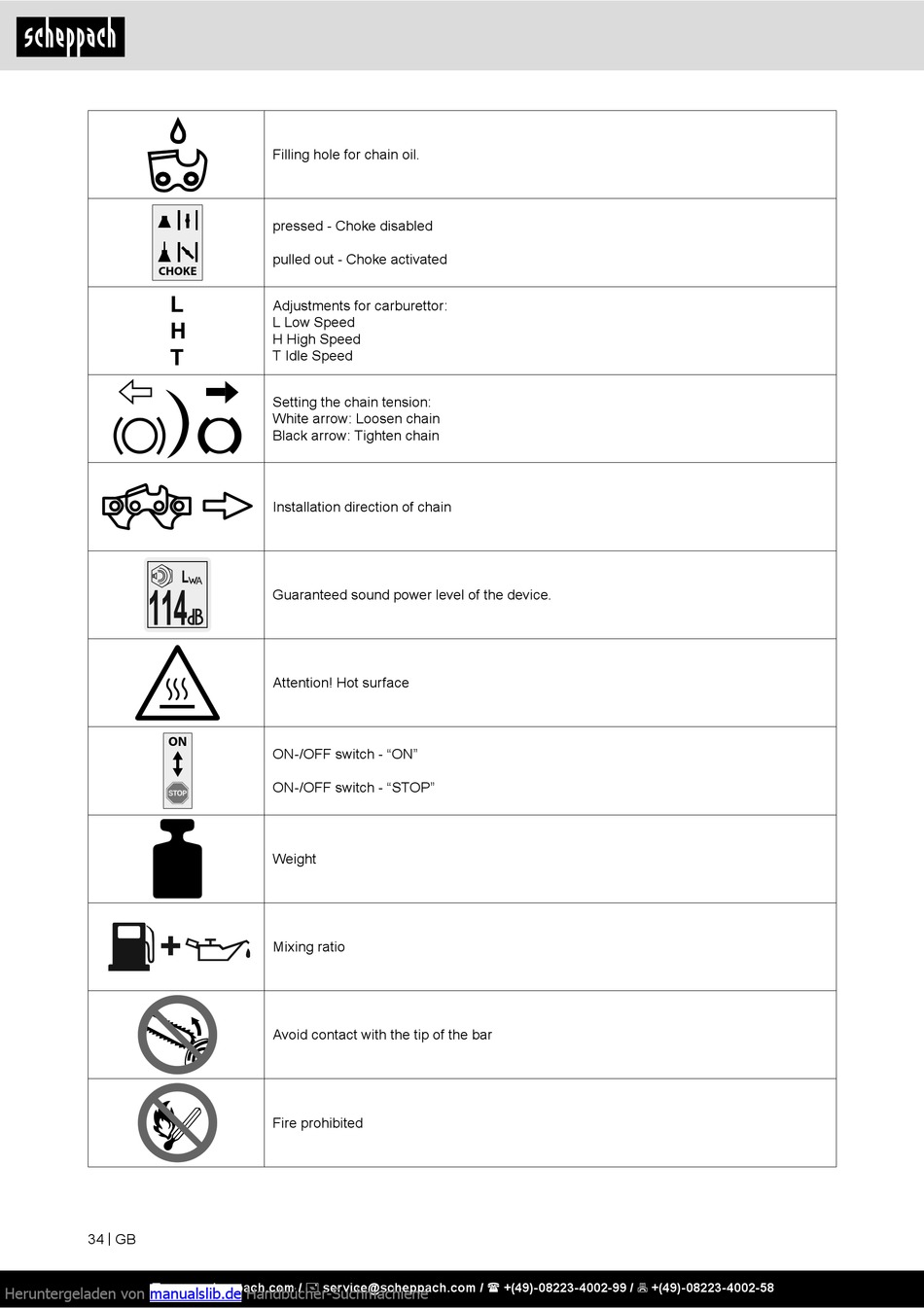

Filling hole for chain oil.
pressed - Choke disabled
pulled out - Choke activated
Adjustments for carburettor:
L Low Speed
H High Speed
T Idle Speed
Setting the chain tension:
White arrow: Loosen chain
Black arrow: Tighten chain
Installation direction of chain
Guaranteed sound power level of the device.
Attention! Hot surface
ON-/OFF switch - "ON"
ON-/OFF switch - "STOP"
Weight
Mixing ratio
Avoid contact with the tip of the bar
Fire prohibited
