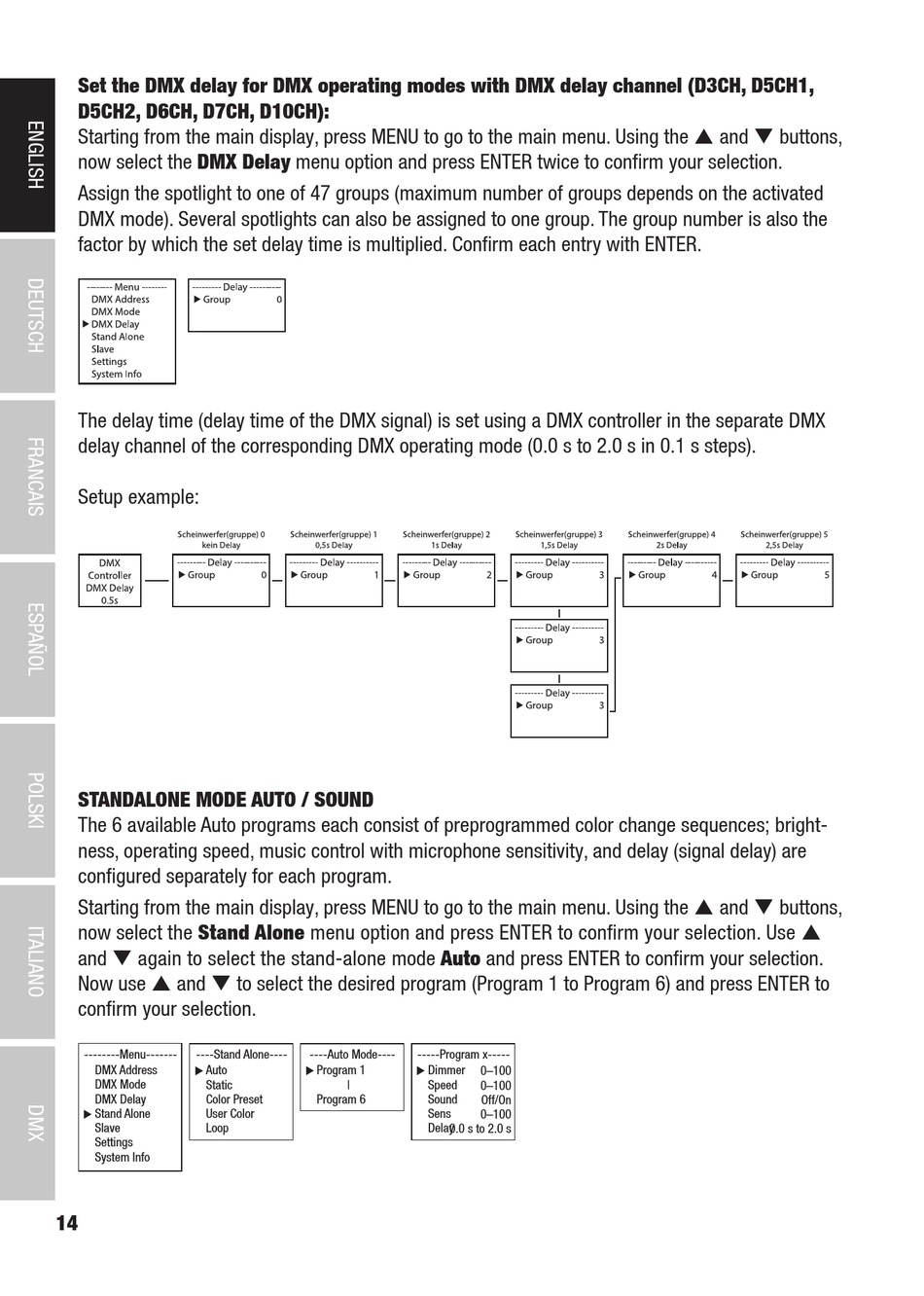

Cameo ROOT PAR BATTERY Bedienungsanleitung Seite 14

Set the DMX delay for DMX operating modes with DMX delay channel (D3CH, D5CH1,
D5CH2, D6CH, D7CH, D10CH):
Starting from the main display, press MENU to go to the main menu. Using the  and  buttons,
now select the DMX Delay menu option and press ENTER twice to confirm your selection.
Assign the spotlight to one of 47 groups (maximum number of groups depends on the activated
DMX mode). Several spotlights can also be assigned to one group. The group number is also the
factor by which the set delay time is multiplied. Confirm each entry with ENTER.
The delay time (delay time of the DMX signal) is set using a DMX controller in the separate DMX
delay channel of the corresponding DMX operating mode (0.0 s to 2.0 s in 0.1 s steps).
Setup example:
STANDALONE MODE AUTO / SOUND
The 6 available Auto programs each consist of preprogrammed color change sequences; bright-
ness, operating speed, music control with microphone sensitivity, and delay (signal delay) are
configured separately for each program.
Starting from the main display, press MENU to go to the main menu. Using the  and  buttons,
now select the Stand Alone menu option and press ENTER to confirm your selection. Use 
and  again to select the stand-alone mode Auto and press ENTER to confirm your selection.
Now use  and  to select the desired program (Program 1 to Program 6) and press ENTER to
confirm your selection.
--------Menu------- ----Stand Alone----
DMX Address
Auto
DMX Mode Static
DMX Delay Color Preset
Stand Alone User Color
Slave Loop
Settings
System Info
14
----Auto Mode---- -----Program x-----
Program 1 Dimmer 0–100
| Speed
0–100
Program 6 Sound
Off/On
Sens
0–100
Delay
0.0 s to 2.0 s
