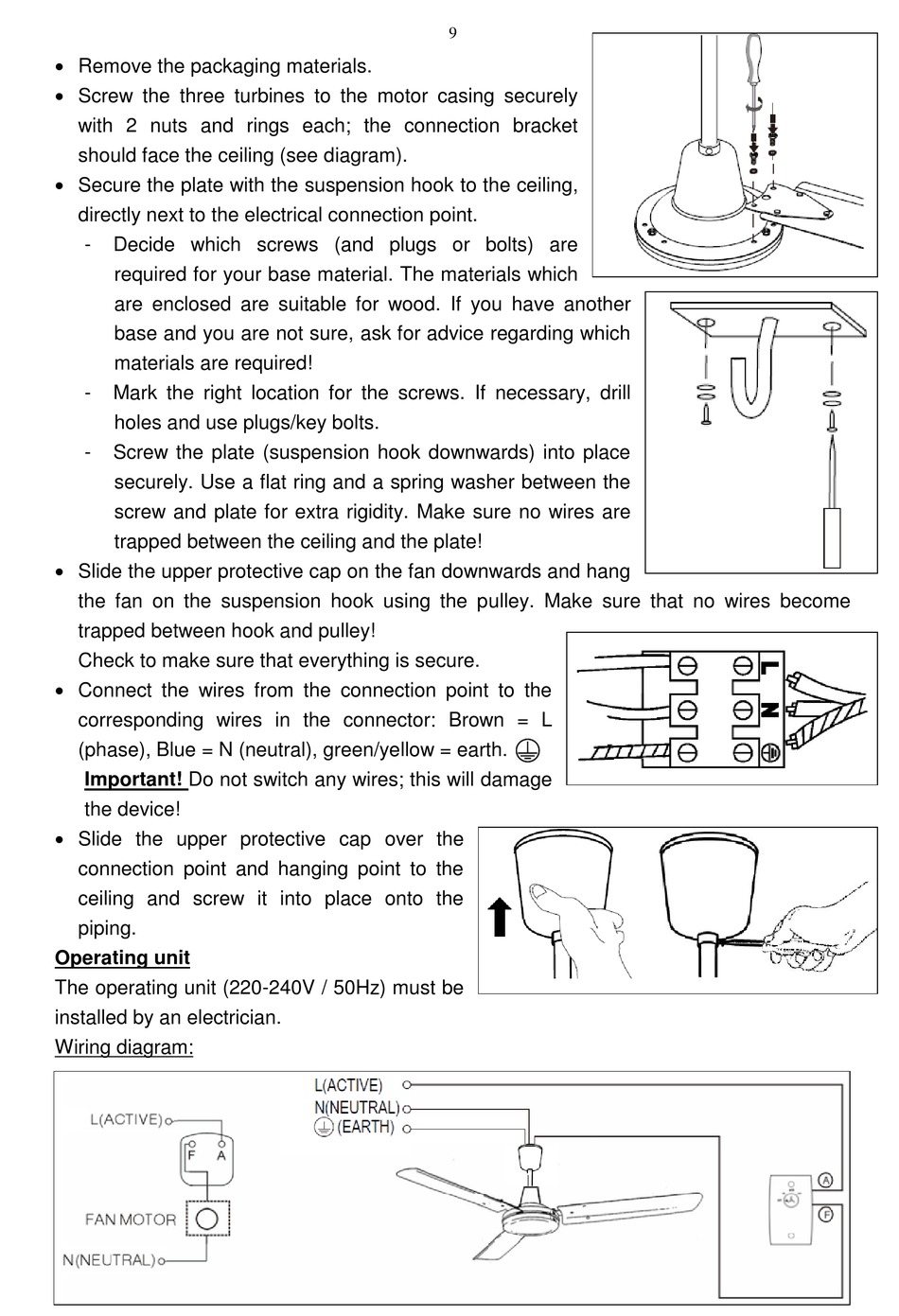

EUROM Ceiling Fan 48 Anleitungsbroschüre Seite 9

 Remove the packaging materials.
 Screw the three turbines to the motor casing securely
with 2 nuts and rings each; the connection bracket
should face the ceiling (see diagram).
 Secure the plate with the suspension hook to the ceiling,
directly next to the electrical connection point.
- Decide which screws (and plugs or bolts) are
required for your base material. The materials which
are enclosed are suitable for wood. If you have another
base and you are not sure, ask for advice regarding which
materials are required!
- Mark the right location for the screws. If necessary, drill
holes and use plugs/key bolts.
- Screw the plate (suspension hook downwards) into place
securely. Use a flat ring and a spring washer between the
screw and plate for extra rigidity. Make sure no wires are
trapped between the ceiling and the plate!
 Slide the upper protective cap on the fan downwards and hang
the fan on the suspension hook using the pulley. Make sure that no wires become
trapped between hook and pulley!
Check to make sure that everything is secure.
 Connect the wires from the connection point to the
corresponding wires in the connector: Brown = L
(phase), Blue = N (neutral), green/yellow = earth.
Important! Do not switch any wires; this will damage
the device!
 Slide the upper protective cap over the
connection point and hanging point to the
ceiling and screw it into place onto the
piping.
Operating unit
The operating unit (220-240V / 50Hz) must be
installed by an electrician.
Wiring diagram:
