2. Product Overview

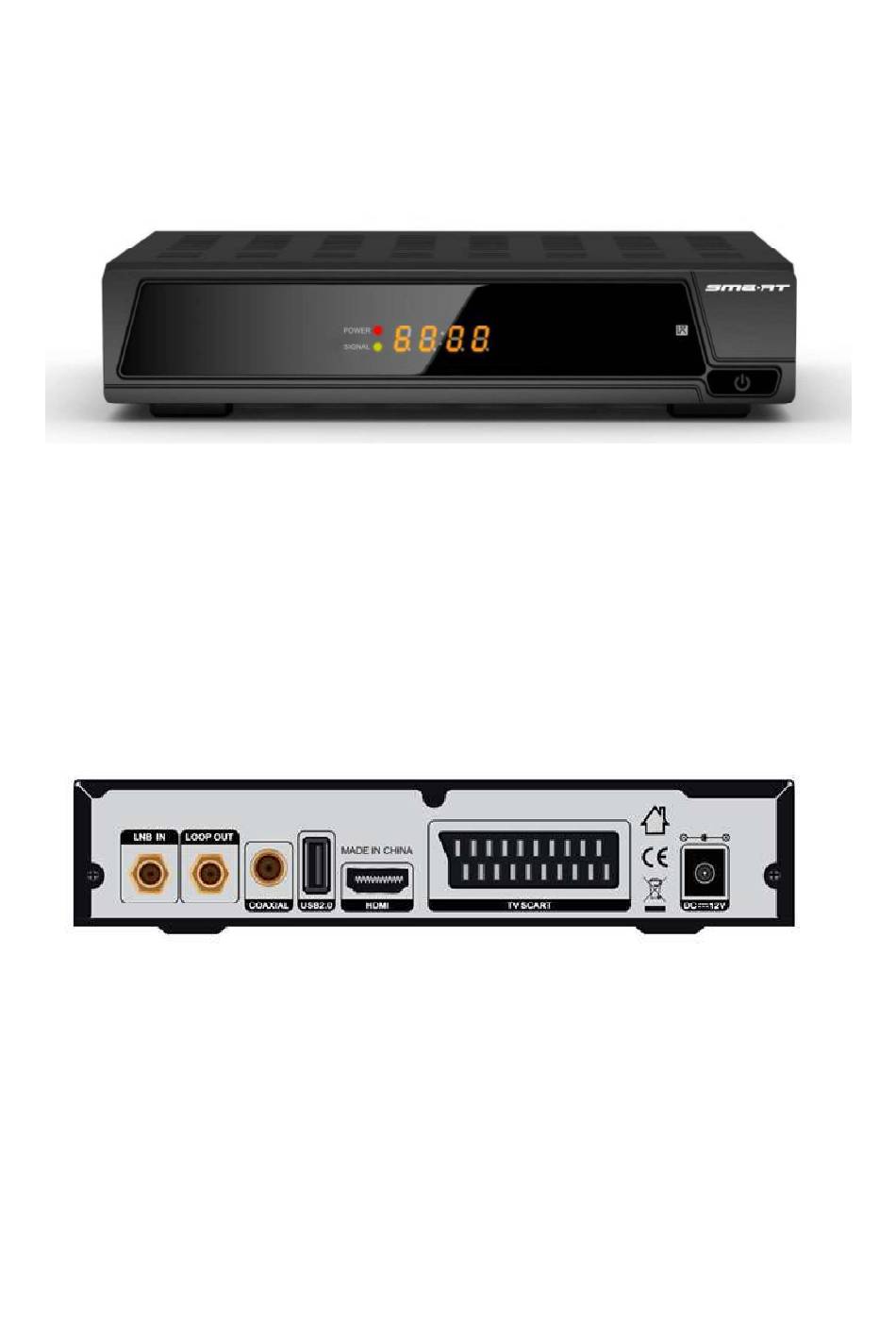

2.1 Front Panel

1. Power LED
2. Signal LED
3. Display
4. Power button Switch between operation and standby modes.

2.2 Rear Panel

1. LNB IN Connect the satellite antenna cable.
2. LOOP OUT Connect another receiver.
3. COAXIAL Digital Audio output (COAXIAL).
4. USB2.0 One USB 2.0 Host Port.
5. HDMI Connect to the TV using an HDMI cable.
6. TV SCART Connect to the TV using a Scart cable.
7. DC 12V Connect to the power using power adapter.
Power indicator.
Signal indicator.
It displays channel information. In standby mode it displays
local time.
