Installation
3.4
Dimensions

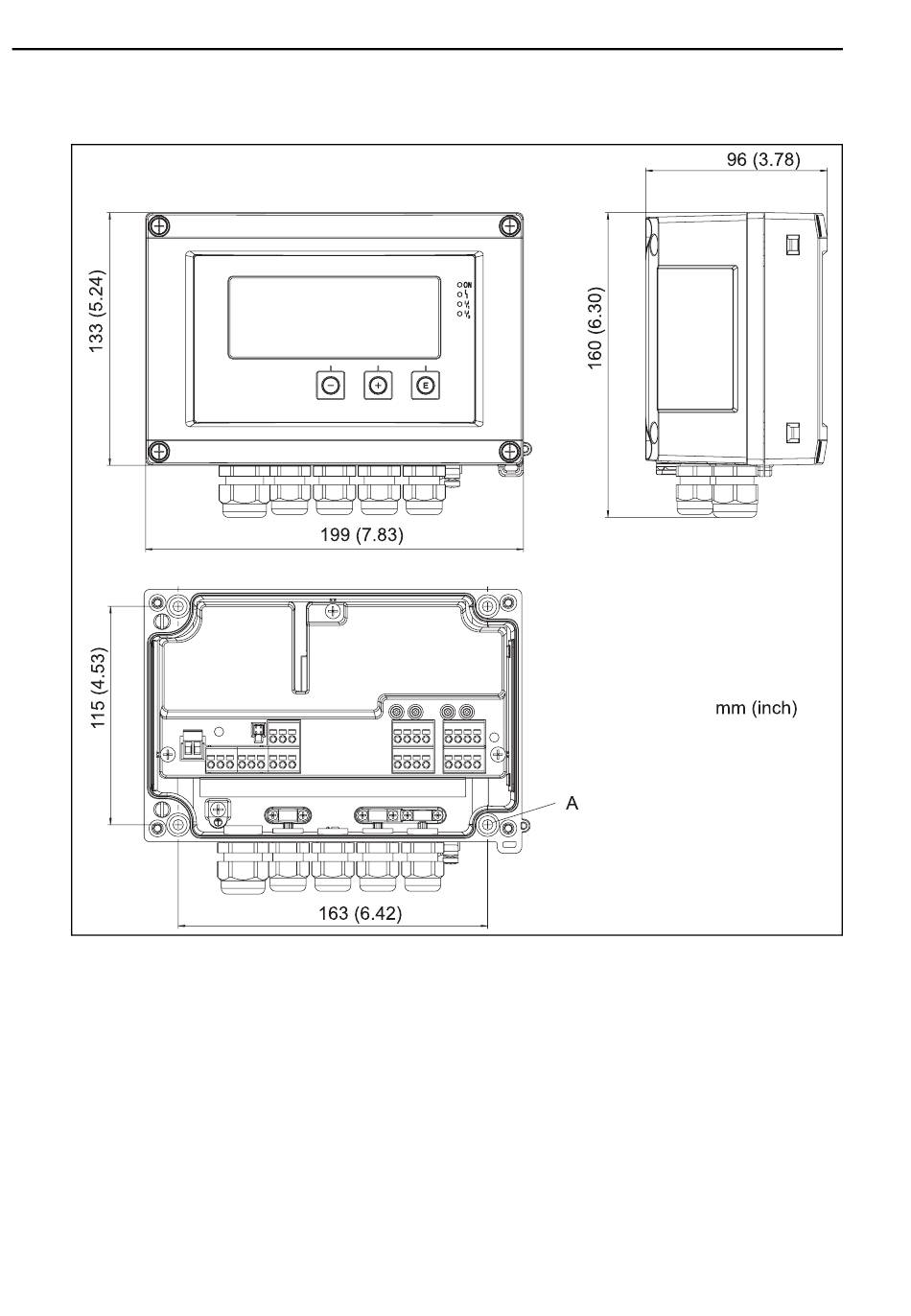

Fig. 4: Dimensions of the device
Drill-hole for direct wall mounting or on optional mounting plate with 4 screws ∅5 mm (0.2")
A:
3.5
Post-installation check
• Is the sealing ring undamaged?
• Is the device firmly screwed to the mounting plate or the wall?
• Are the housing frame screws closed tightly?
