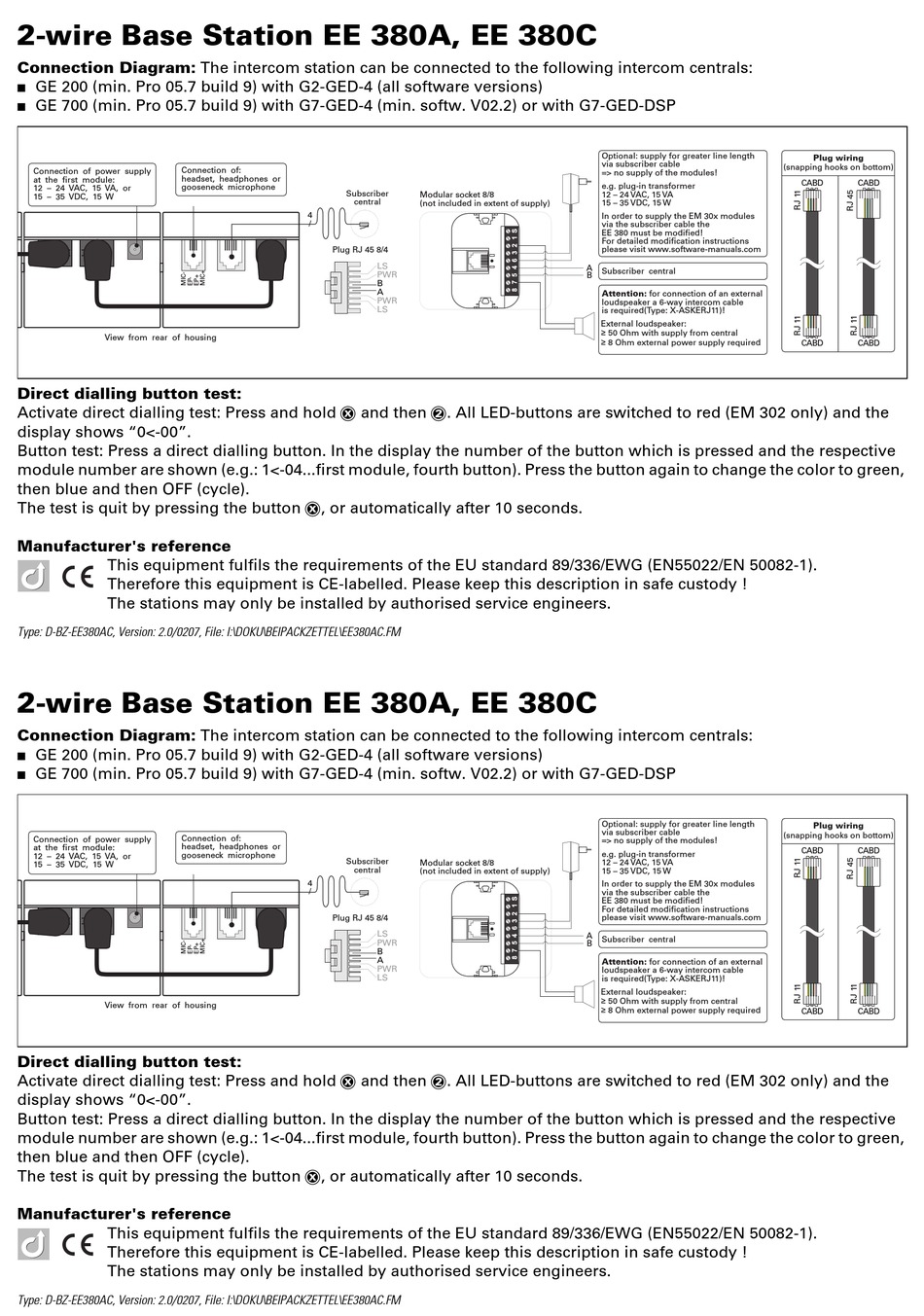

2-wire Base Station EE 380A, EE 380C
Connection Diagram: The intercom station can be connected to the following intercom centrals:
GE 200 (min. Pro 05.7 build 9) with G2-GED-4 (all software versions)
n
GE 700 (min. Pro 05.7 build 9) with G7-GED-4 (min. softw. V02.2) or with G7-GED-DSP
n
Connection of:
Connection of power supply
headset, headphones or
at the first module:
gooseneck microphone
12 – 24 VAC, 15 VA, or
15 – 35 VDC, 15 W
View from rear of housing
Direct dialling button test:
Activate direct dialling test: Press and hold X and then 2. All LED-buttons are switched to red (EM 302 only) and the
display shows "0<-00".
Button test: Press a direct dialling button. In the display the number of the button which is pressed and the respective
module number are shown (e.g.: 1<-04...first module, fourth button). Press the button again to change the color to green,
then blue and then OFF (cycle).
The test is quit by pressing the button X, or automatically after 10 seconds.
Manufacturer's reference
This equipment fulfils the requirements of the EU standard 89/336/EWG (EN55022/EN 50082-1).
Therefore this equipment is CE-labelled. Please keep this description in safe custody !
The stations may only be installed by authorised service engineers.
Type: D-BZ-EE380AC, Version: 2.0/0207, File: I:\DOKU\BEIPACKZETTEL\EE380AC.FM
2-wire Base Station EE 380A, EE 380C
Connection Diagram: The intercom station can be connected to the following intercom centrals:
GE 200 (min. Pro 05.7 build 9) with G2-GED-4 (all software versions)
n
GE 700 (min. Pro 05.7 build 9) with G7-GED-4 (min. softw. V02.2) or with G7-GED-DSP
n
Connection of:
Connection of power supply
headset, headphones or
at the first module:
gooseneck microphone
12 – 24 VAC, 15 VA, or
15 – 35 VDC, 15 W
View from rear of housing
Direct dialling button test:
Activate direct dialling test: Press and hold X and then 2. All LED-buttons are switched to red (EM 302 only) and the
display shows "0<-00".
Button test: Press a direct dialling button. In the display the number of the button which is pressed and the respective
module number are shown (e.g.: 1<-04...first module, fourth button). Press the button again to change the color to green,
then blue and then OFF (cycle).
The test is quit by pressing the button X, or automatically after 10 seconds.
Manufacturer's reference
This equipment fulfils the requirements of the EU standard 89/336/EWG (EN55022/EN 50082-1).
Therefore this equipment is CE-labelled. Please keep this description in safe custody !
The stations may only be installed by authorised service engineers.
Type: D-BZ-EE380AC, Version: 2.0/0207, File: I:\DOKU\BEIPACKZETTEL\EE380AC.FM
Subscriber
Modular socket 8/8
central
(not included in extent of supply)
4
/
Plug RJ 45 8/4
LS
PWR
B
A
PWR
LS
Subscriber
Modular socket 8/8
central
(not included in extent of supply)
4
/
Plug RJ 45 8/4
LS
PWR
B
A
PWR
LS
Optional: supply for greater line length
via subscriber cable
=> no supply of the modules!
e.g. plug-in transformer
12 – 24 VAC, 15 VA
15 – 35 VDC, 15 W
In order to supply the EM 30x modules
via the subscriber cable the
EE 380 must be modified!
For detailed modification instructions
please visit www.software-manuals.com
A
Subscriber central
B
Attention: for connection of an external
loudspeaker a 6-way intercom cable
is required(Type: X-ASKERJ11)!
External loudspeaker:
≥
50 Ohm with supply from central
≥
8 Ohm external power supply required
Optional: supply for greater line length
via subscriber cable
=> no supply of the modules!
e.g. plug-in transformer
12 – 24 VAC, 15 VA
15 – 35 VDC, 15 W
In order to supply the EM 30x modules
via the subscriber cable the
EE 380 must be modified!
For detailed modification instructions
please visit www.software-manuals.com
A
Subscriber central
B
Attention: for connection of an external
loudspeaker a 6-way intercom cable
is required(Type: X-ASKERJ11)!
External loudspeaker:
≥
50 Ohm with supply from central
≥
8 Ohm external power supply required
Plug wiring
(snapping hooks on bottom)
CABD
CABD
CABD
CABD
Plug wiring
(snapping hooks on bottom)
CABD
CABD
CABD
CABD
