EF 962H / EF 962HM

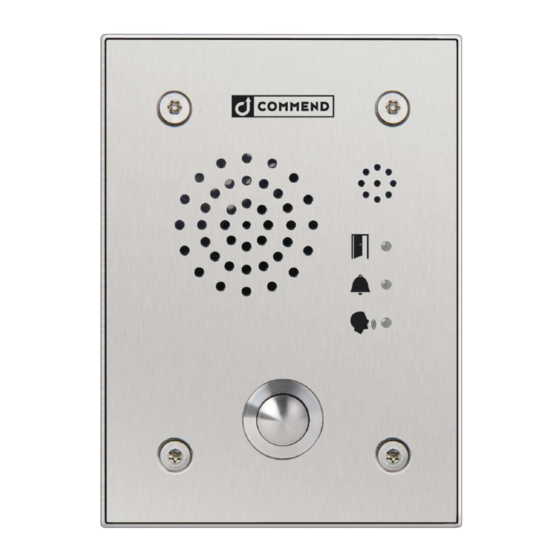

Compact vandal resistant IP Intercom station for use as IoIP or SIP device.

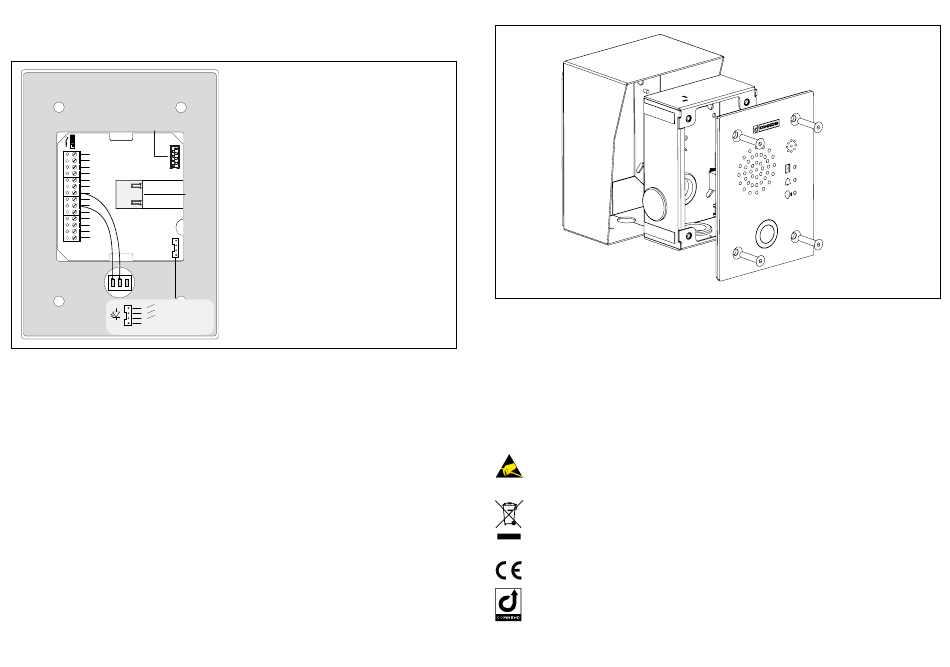

Connection diagram (rear view)
Expansion
jack (e.g. for
EB2E2AHE)
JP1
OUT1
OUT2
IN1
IN2
GND
IP Uplink
T
0
X
MIC+
MIC–
LS+
LS–
(8–50 Ω)
N/C
100 Ω
+5V internal series
B
100 Ω
resistors
G
100 Ω
R
JST jack
R/G/B +5V
for external low power LEDs
Mounting instructions
• Observe the country-specific standards for installation, mounting and configuration.
• For flush mounting, the flush-mount box GUEF 962 (available separately) is required. For surface
mounting, the flush-mount box as well as one of the surface mount boxes is required (not in extent
of supply).
• When the flush mount box is used, the mounting tabs must be bent out at least 15 mm (0.6 in)
before applying plaster.
• Use of flush mount boxes in order to comply to the IP54 regulations, it is mandatory to close the
hole on the bottom of the frame with the included sealing screw or the threaded cable joint. No
warranty claim when not installed properly!
• For Intercom stations to be mounted in outdoor areas, the screws must be closed with a sealing
compound.
• Do not mount the station with the front panel facing the weather side.
Operation
The Intercom station is a hybrid product and can be booted as IoIP device or SIP device. Per
factory default, the boot mode of the device is "SIP" . The boot mode can be changed to "IoIP" via
configuration software IP Station Config (min. Version 4.0.5).
First connection (SIP)
The IP address is assigned directly via the DHCP server. If DHCP is not available in the network, the
default address "192.168.1.200" will be used. The web interface can be accessed via a web browser
using the URL "http://<IP address>" .
Login
User name: admin
Password: commend
NOTE
• OUT 1 factory adjusted as normally open
contact. With the jumper "JP1" , it can be con-
verted into a normally closed contact.
• OUT 2 factory adjusted as normally open
contact.
• PoE ("Power over Ethernet"):
IEEE 802.3af,
power consumption: Class 0 (0.44 to 12.96 W)
• Use the RJ45 connection cable included
in extent of supply to connect the EF 962H
("IP Uplink") to the RJ45 connector of the
flush mount box GUEF 962.
Montage
EF 62G
EF 62O
GUEF 962
EF 62NIRO
EF 62W
Extent of supply
• Intercom station
• Connection cable
• Screws for mounting
• Short reference
WARNING
In operation as a SIP version, this is a Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take adequate measures.
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial
waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable
in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding
standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
For technical specifications, see the respective datasheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-EF962H, Version: 1.3/0618 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
