Commend EF 962HM Kurzanleitung

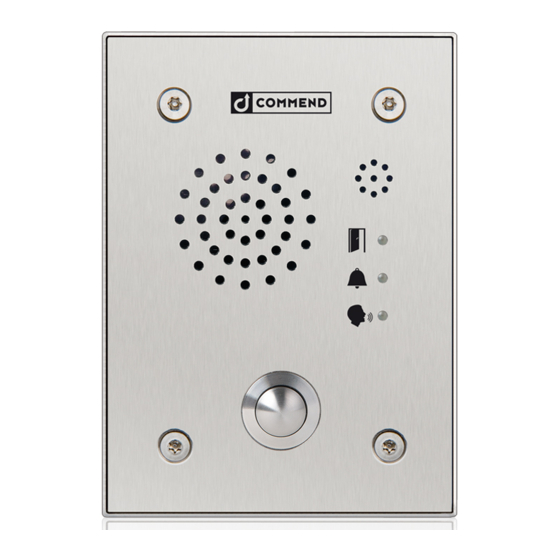

Intercom Stations EF 962H / EF 962HM

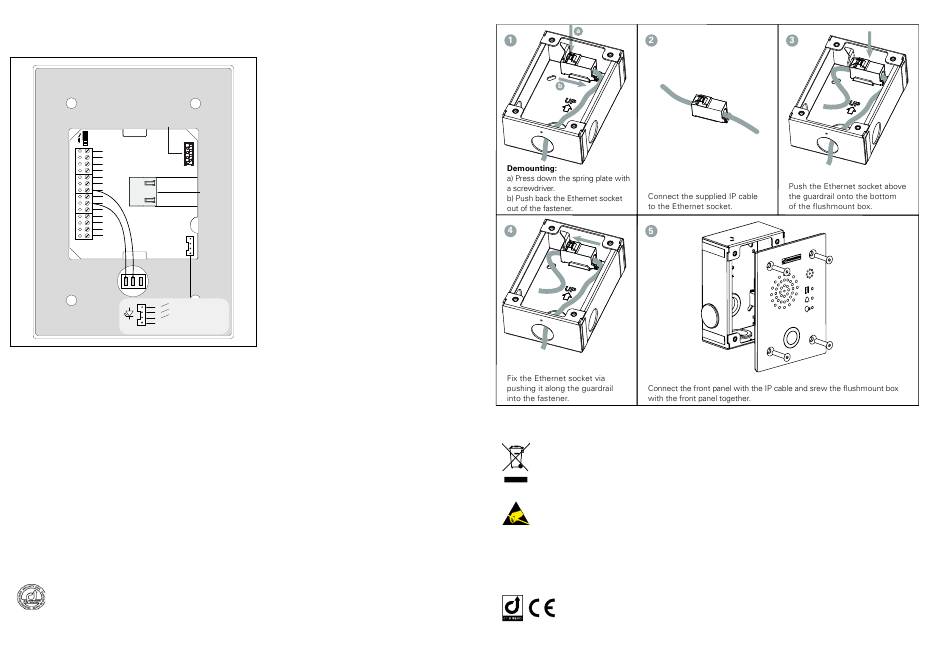

Connection diagram
Rear view
Expansion
plug (e.g. for
EB2E2AHE)
JP1
OUT1
OUT2
IN1
IN2
GND
T
0
X
MIC+
MIC–
LS+
LS–
(8–50 Ω)
N/C
100 Ω
+5V internal series
B
100 Ω
resistors
G
100 Ω
R
R/G/B +5V
for external low power LEDs
– OUT 1 factory adjusted as normally open contact. With the jumper JP1 it can be converted into a
normally closed contact.
– OUT 2 factory adjusted as normally open contact.
– PoE ("Power over Ethernet"): IEEE 802.3af standard
Power consumption of the terminal device: Class 0
Attention
Do not mount the station with the front panel facing the weather side.
The station is a hybrid product and can be booted as IoIP device or SIP device .Per factory default, the
boot mode of the device is "SIP" . The boot mode can be changed to "IoIP" via configuration software
IP Station Config (min. Version 4.0.5).
First connection (SIP)
The IP address is assigned directly via the DHCP server. If DHCP is not available in the network, the
default address 192.168.1.200 will be used. The web interface can be accessed via a web browser using
the URL http://<IP address>.
Login
User name: admin
Password: commend
FA: Microphone adjusted ex works. If necessary the
microphone sensitivity should be set via CCT 800 by an
experienced technician.
For technical data and system requirements see the respective datasheet.
Latest software and documentation
For current software and documentation, please visit: www.software-manuals.com
IP Uplink
JST plug
Connection with the flushmount box GUEF 962
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or
commercial waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is
applicable in the European Union member states.
Attention
Observe the precautions for handling of electrostatic sensitive devices!
The device may be only installed by authorised engineers.
Observe the relevant national and local regulations for the installation.
WARNING: In operation as a SIP version, this is a Class A product. In a domestic environ-
ment this product may cause radio interference in which case the user may be required to
take adequate measures.
Manufacturer's reference
This equipment fulfils the requirements of the EU directive 2004/108/EC EMC.
Therefore this equipment is CE-labelled.
Please keep this description in safe custody!
Type: D-BZ-EF962H, Version: 1.2/1115
