Commend WS 300V CM Kurzanleitung

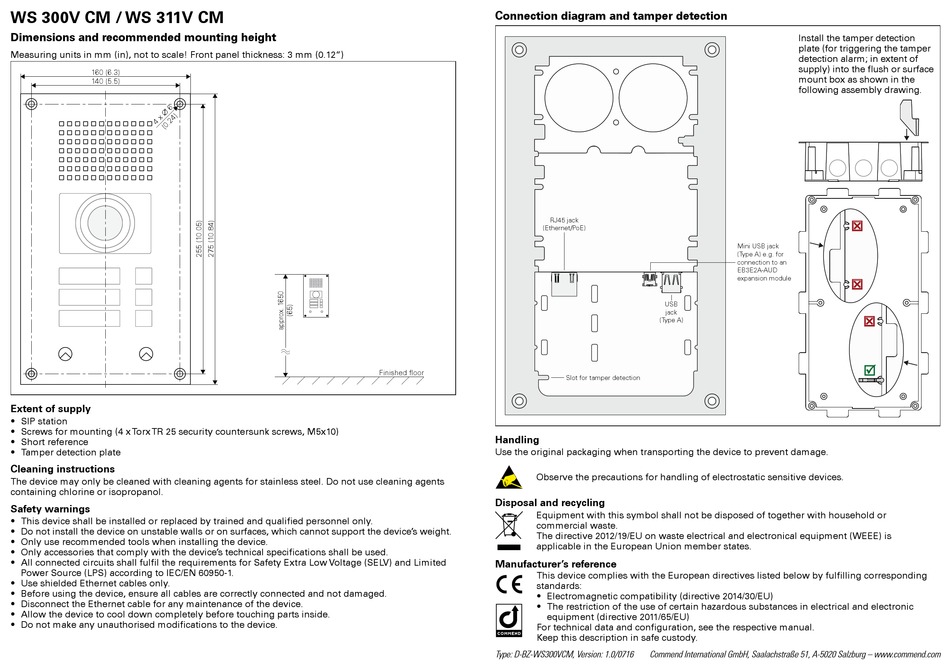

WS 300V CM / WS 311V CM
Dimensions and recommended mounting height
Measuring units in mm (in), not to scale! Front panel thickness: 3 mm (0.12")
160 (6.3)
140 (5.5)
Extent of supply
• SIP station
• Screws for mounting (4 x Torx TR 25 security countersunk screws, M5x10)
• Short reference
• Tamper detection plate
Cleaning instructions
The device may only be cleaned with cleaning agents for stainless steel. Do not use cleaning agents
containing chlorine or isopropanol.
Safety warnings
• This device shall be installed or replaced by trained and qualified personnel only.
• Do not install the device on unstable walls or on surfaces, which cannot support the device's weight.
• Only use recommended tools when installing the device.
• Only accessories that comply with the device's technical specifications shall be used.
• All connected circuits shall fulfil the requirements for Safety Extra Low Voltage (SELV) and Limited
Power Source (LPS) according to IEC/EN 60950-1.
• Use shielded Ethernet cables only.
• Before using the device, ensure all cables are correctly connected and not damaged.
• Disconnect the Ethernet cable for any maintenance of the device.
• Allow the device to cool down completely before touching parts inside.
• Do not make any unauthorised modifications to the device.
Connection diagram and tamper detection
RJ45 jack
(Ethernet/PoE)
Finished floor
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or
commercial waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is
applicable in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding
standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
For technical data and configuration, see the respective manual.
Keep this description in safe custody.
Type: D-BZ-WS300VCM, Version: 1.0/0716
Mini USB jack
(Type A) e.g. for
connection to an
EB3E2A-AUD
expansion module
USB
jack
(Type A)
Slot for tamper detection
Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
Install the tamper detection
plate (for triggering the tamper
detection alarm; in extent of
supply) into the flush or surface
mount box as shown in the
following assembly drawing.
T
T
T
R
