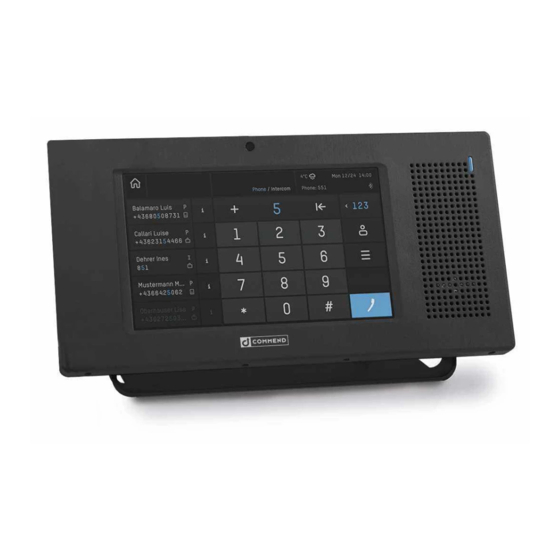

Control station DUETTO
The control stations EE 980 and SIP-EE 980 can be mounted either with an additional desk stand or a
wall mount kit. The DUETTO series versions EE 980CM and SIP-EE 980CM are available with built-in HD
video camera.

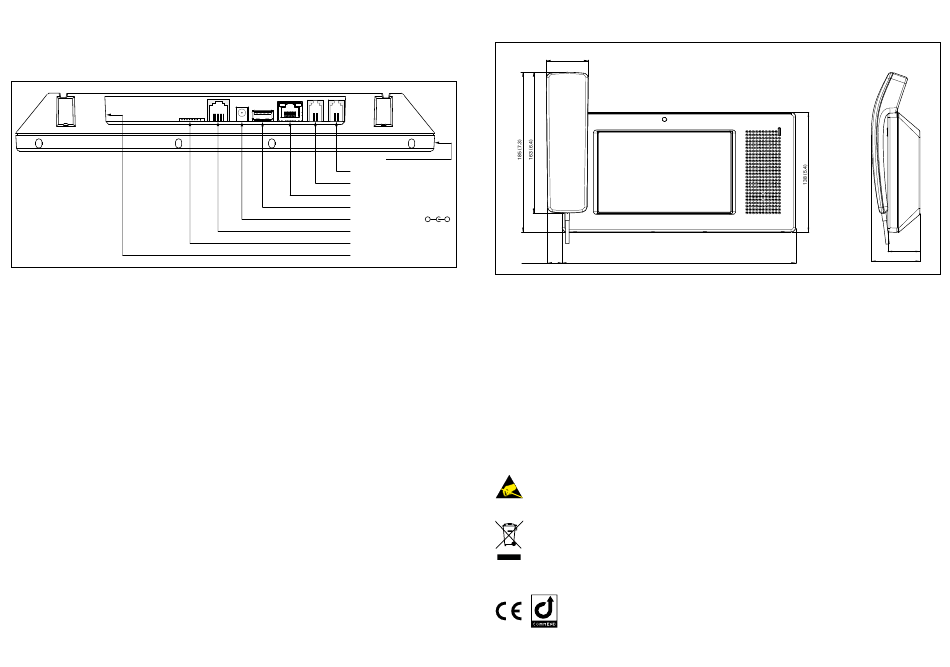

Connections (bottom view)
Power supply via PoE ("Power over Ethernet")
Power supply is provided via the Ethernet cable (IEEE 802.3af class 3), which is connected to the RJ45 jack
"Network" . If no PoE is provided via this Ethernet cable, a PoE injector can be used (e.g. "PA 15W POE").
Power supply via external power supply
Connect a power supply unit (24 VDC, 700 mA; power range: 22 – 30 VDC) to the coaxial power jack
"External power supply" (outer diameter: 5.5 mm, inner diameter: 2.1 mm).
Cleaning instructions
Follow the cleaning instructions below to avoid damages to the device:
• Use only a soft, lint-free cloth. Abrasive cloths, towels, paper towels, and similar items may cause
damage to the device.
• Disconnect the device from any external power sources.
• Disconnect any external devices and other cabling from the device.
• Keep liquids away from the device.
• Keep moisture away from any openings, and do not use aerosol sprays, solvents, abrasives or cor-
rosives.
• Do not spray cleaners directly onto the device.
If liquids gets into the device, seek assistance from the Technical Support of Commend Inter-
Note:
national GmBH!
Extent of supply
• Control desk EE 980 / EE 980CM / SIP-EE 980 / SIP-EE 980CM
• Short reference
Mounting
The mounting of the device is done either with a desk kit or a wall mount kit – not included in extent of
supply.
Dimensions
Measuring units in mm (in), not to scale!
USB 2.0
Handset
Headset
Network
USB 2.0
External power supply
-
+
Input / output
MicroSD card slot
USB 2.0
17 (0.7)
WebConfig login
Enter the IP address of the device (e.g. "https://169.254.10.10:8080") in the address bar of a web browser
to access the WebConfig for the device configuration. In order to find out the device IP address, tap on
the information icon in the device settings on the display of the device. Use the following user credentials
to login to the WebConfig:
• Username: admin
• Password: admin
Attention:
NOT SUITABLE FOR OUTDOOR MOUNTING!
Safety warning
This device shall be installed or replaced by trained and qualified personnel only.
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial
waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable
in the European Union member states.
Manufacturer's reference
Type: D-BZ-EE980, Version: 1.3/0317
48 (1.9)
270 (10.6)
Corresponds to IP20 (acc. EN 60529)!
This device complies with the European directives listed below by fulfilling
corresponding standard:
• Electromagnetic compatibility (directive 2014/30/EU)
For technical specifications, see the respective manual.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
37 (1.5)
56 (2.2)
