Commend EF 962H Kurzanleitung

EF 962H / EF 962HM
Compact vandal resistant IP Intercom station for use as IoIP or SIP device.

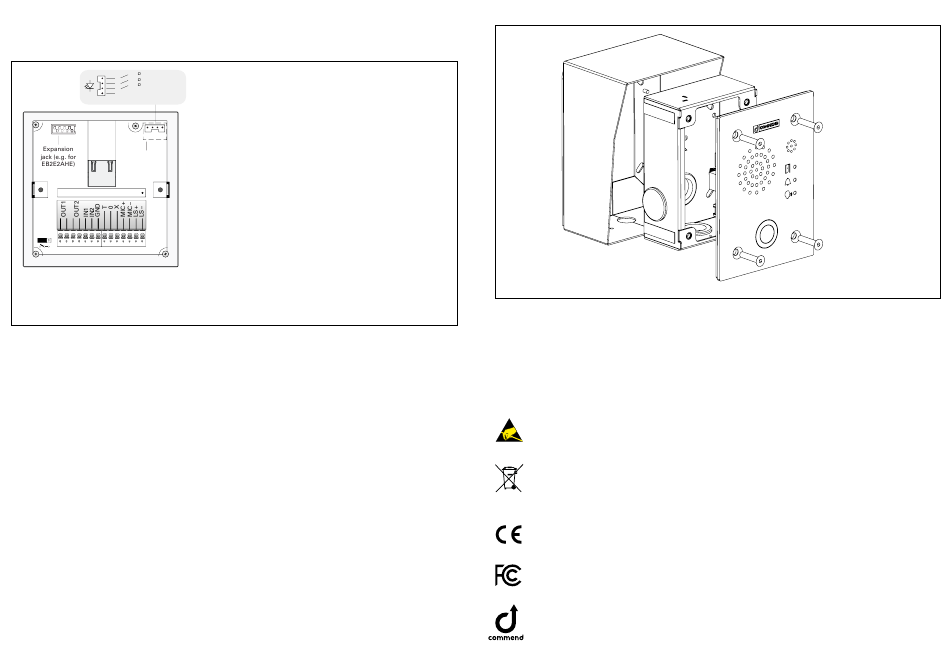

Connection diagram
100
internal series
+5V
B
100
resistors
G
100
R
JST jack
+5V
R/G/B
for external high power LEDs
Opening can
be turned
outwards
IP Uplink
JP1
JP1
Mounting instructions
• Observe the country-specific standards for installation, mounting and configuration.
• For flush mounting, the flush-mount box GUEF 962 (available separately) is required. For surface
mounting, the flush-mount box as well as one of the surface mount boxes is required (not in extent
of supply).
• When the flush mount box is used, the mounting tabs must be bent out at least 15 mm (0.6 in)
before applying plaster.
• Use of flush mount boxes in order to comply to the IP54 regulations, it is mandatory to close the
hole on the bottom of the frame with the included sealing screw or the threaded cable joint. No
warranty claim when not installed properly!
• For Intercom stations to be mounted in outdoor areas, the screws must be closed with a sealing
compound.
• Do not mount the station with the front panel facing the weather side.
• In operation as a SIP version, this is a Class A product (standard EN 55032). In a domestic environ-
ment this product may cause radio interference in which case the user may be required to take
adequate measures.
• This equipment has been tested and found to comply with the limits for a Class A digital device, pur-
suant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
NOTE
The Intercom module is a hybrid product and
can be booted as IoIP device or SIP device. Per
factory default, the boot mode of the module is
"SIP" . The boot mode can be changed to "IoIP"
using the confi guration software IPStationConfig
(min. Version 4.0.5).
• The call button is connected to
"GND" and "0" and is adjusted as
normally closed contact.
• OUT 1 is factory adjusted as nor-
mally open contact. Via the jumper
JP1, the output can be converted
into a normally closed contact.
• OUT 2 is factory adjusted as nor-
mally open contact.
• PoE ("Power over Ethernet"):
IEEE 802.3af standard.
Power consumption of the
terminal device: Class 0.
• Use the RJ45 connection cable
included in extent of supply to
connect the EF 962H (IP-Uplink) to
the RJ45 connector of the flush
mount box GUEF 962.
ATTENTION
The spring clamp terminal will be
damaged when inserting a screw-
driver into the cable opening.
First connection (SIP)
The IP address is assigned directly via the DHCP
server. If DHCP is not available in the network, the
default address "192.168.1.200" will be used. The
web interface can be accessed via a web browser
using the URL "http://<IP address>" .
Montage
EF 62G
EF 62O
GUEF 962
EF 62NIRO
EF 62W
Extent of supply
• Intercom station
• Connection cable
• Screws for mounting
• Claiming code
• Open source compliance information
• Short reference
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial
waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable
in the European Union member states.
Manufacturer's reference
CE – This device complies with the directives listed below by fulfilling corresponding standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
FCC – CAN ICES-3 (A)/NMB-3(A); for the FCC Rules, see "Mounting instructions" .
Contact Commend USA: Commend Inc, 63 Ramapo Valley Road, Suite 201,
Mahwah, NJ 07430 (New York Area), www.commendusa.com
CAN ICES-3 (A)/NMB-3 (A)
For technical specifications, see the respective data sheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-EF962H, Version: 1.6/0722 Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
EF 962H
Login
User name: admin
Password: commend
