Commend EF 401 Anschlussdiagramm

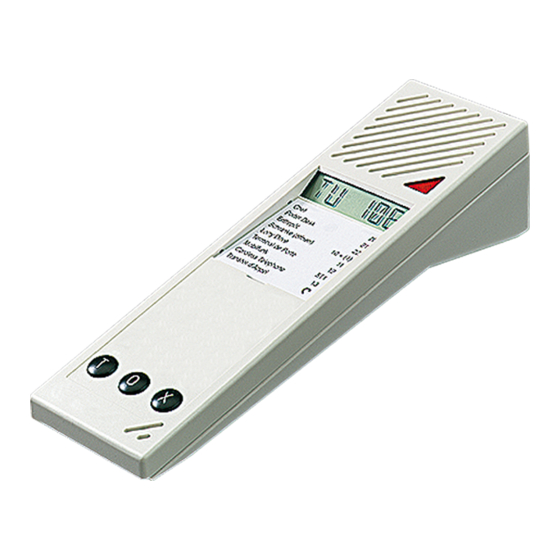

4-wire Intercom station EF 401
Connection diagram
Extent of supply
• Connection cable 3 m (9.8 ft), pluggable at both sides
• Short reference and operating instructions
Safety warning
This device shall be installed or replaced by trained and qualified personnel only.
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic equipment (directive 2011/65/EU)
For technical specifications, see the respective datasheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-EF401, Version: 3.0/0117
4-wire Intercom station EF 401
Connection diagram
Extent of supply
• Connection cable 3 m (9.8 ft), pluggable at both sides
• Short reference and operating instructions
Safety warning
This device shall be installed or replaced by trained and qualified personnel only.
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic equipment (directive 2011/65/EU)
For technical specifications, see the respective datasheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-EF401, Version: 3.0/0117
Modular socket 8/8
(not included in extent
of supply)
Plug RJ45 8/4
D B A C
8 7 5 4 6 3 2 1 S
Subscriber
Intercom Server
B A D C
Modular socket 8/8
(not included in extent
of supply)
Plug RJ45 8/4
D B A C
8 7 5 4 6 3 2 1 S
Subscriber
Intercom Server
B A D C
Plug wiring
)
(snapping hooks on bottom)
CABD CABD
CABD CABD
Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
Plug wiring
(snapping hooks on bottom) )
CABD CABD
CABD CABD
Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
