Commend WSFB 50P Kurzanleitung

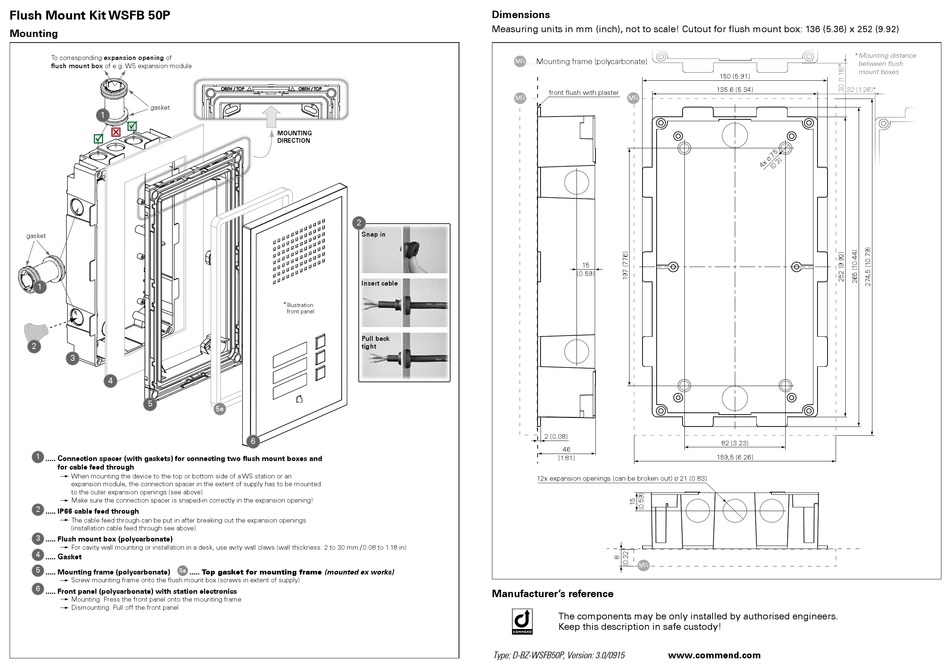

Flush Mount Kit WSFB 50P
Mounting
To corresponding expansion opening of
flush mount box of e.g. WS expansion module
gasket
1
R
T
R
gasket
1
2
3
4
5
1
..... Connection spacer (with gaskets) for connecting two flush mount boxes and
for cable feed through
When mounting the device to the top or bottom side of a WS station or an
expansion module, the connection spacer in the extent of supply has to be mounted
to the outer expansion openings (see above)
Make sure the connection spacer is snaped-in correctly in the expansion opening!
2
..... IP66 cable feed through
The cable feed through can be put in after breaking out the expansion openings
(installation cable feed through see above)
3

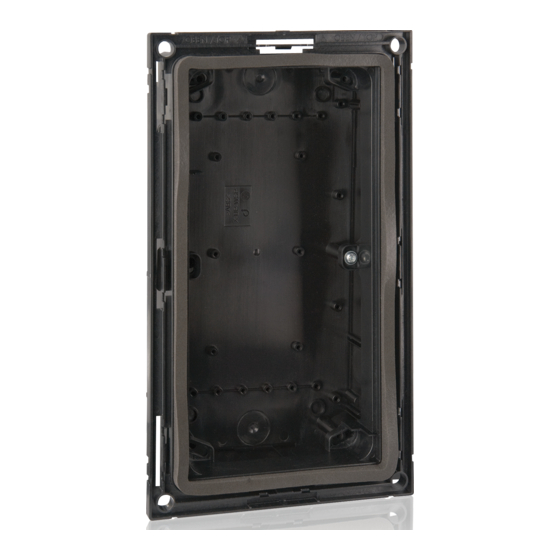

..... Flush mount box (polycarbonate)
For cavity wall mounting or installation in a desk, use avity wall claws (wall thickness: 2 to 30 mm / 0.08 to 1.18 in)
4
..... Gasket
5
5a
..... Mounting frame (polycarbonate)
Screw mounting frame onto the flush mount box (screws in extent of supply)
6
..... Front panel (polycarbonate) with station electronics
Mounting: Press the front panel onto the mounting frame
Dismounting: Pull off the front panel
MOUNTING
DIRECTION
2
Snap in
Insert cable
* Illustration
front panel
Pull back
tight
5a
6
..... Top gasket for mounting frame (mounted ex works)
Dimensions
Measuring units in mm (inch), not to scale! Cutout for flush mount box: 136 (5.36) x 252 (9.92)
.... Mounting frame (polycarbonate)
MR
front flush with plaster
MR MR
15
(0.59)
2 (0.08)
46
(1.81)
12x expansion openings (can be broken out)
MR
Manufacturer's reference
The components may be only installed by authorised engineers.
Keep this description in safe custody!
Type: D-BZ-WSFB50P, Version: 3.0/0915
www.commend.com
150 (5.91)
135.6 (5.34) 32 (1.26)*
82 (3.23)
159,5 (6.26)
21 (0.83)
Ø
*Mounting distance
between flush
mount boxes
