AXIS electronic module: camera angle/web interface login
6

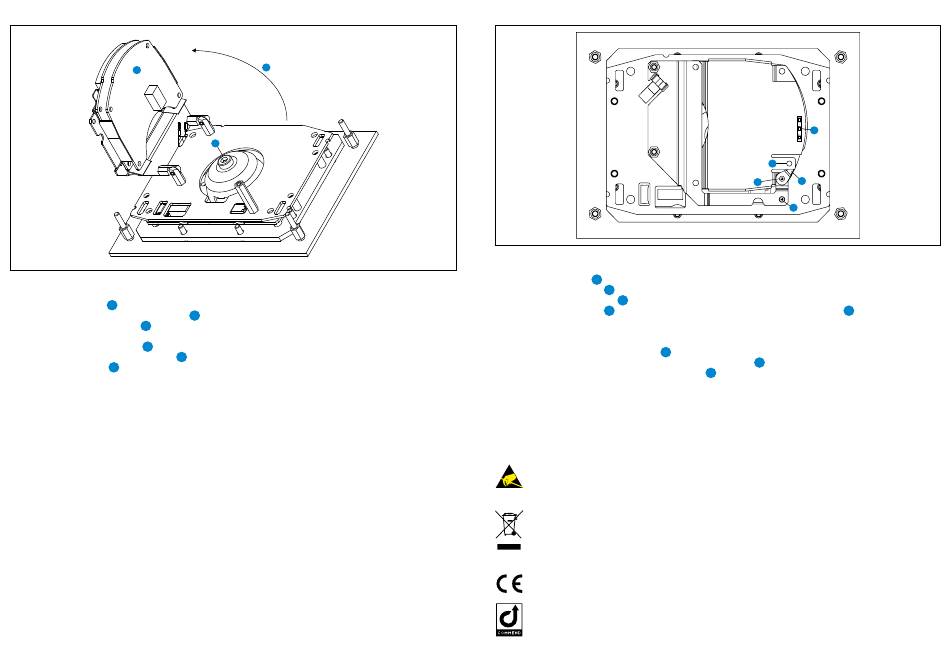

Adjusting the camera
Follow the steps below to adjust the angle of the camera:
1. Loosen the screw
5
(Torx T8).
2. Open up the AXIS electronic module
3. Loosen the locking screw
(Torx T25) on the rear of the camera.
7
4. Adjust the camera in the desired angle (max. 25° in every direction).
5. Tighten the locking screw
7
.
6. Move the AXIS electronic module
6
back into its original position.
7.
Tighten the screw
5
.
NOTE:
For further information on installation and configuration, see Axis manual "P3904-R" .
First connection
The IP address is assigned directly via a DHCP server. If the network does not have a DHCP server, the
default address "192.168.0.90" is used.
The web interface can be accessed via a web browser using the URL "http://<IP address>" . Additionally,
the URL "http://<user name>:<password>@<IP address>axis-cgi/mjpg/video.cgi" can be entered in a
web browser to directly access the MJPG stream.
Login for AXIS web interface
User name: root
Password: root
ATTENTION:
After a reset, the password has to be configured manually.
Type: D-BZ-SIPWS201VCA, Version: 2.2/1117
6
7
6
.
Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com/sip
AXIS electronic module: control button
Control button
Follow the steps below to operate the control button:
1. Loosen the screw
1
(Torx T8).
2. Turn the safety lever
outwards.
2
3. Push the control button
3
.
4. Turn the safety lever
back into its original position and tighten the screw
2
Follow the steps below to reset the camera to the factory default settings using the control button:
1. Disconnect the power supply from the camera.
2. Press and hold the control button
3
and reconnect the power supply.
3. Keep the control button pressed until the LED indicator
4. Release the control button. If the status LED
ATTENTION:
After a reset, the camera must be re-configured, otherwise the camera image would appear 180°
upside down.
Handling
Use the original packaging when transporting the device to prevent damage.
Observe the precautions for handling of electrostatic sensitive devices.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or
commercial waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is
applicable in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding
standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
For technical data and configuration, see the respective manual.
Keep this description in safe custody.
PWR
STAT
4
NET
3
2
2
1
5
.
1
4
flashes amber.
turns green, the process is complete.
