Commend S3 Kurzanleitung

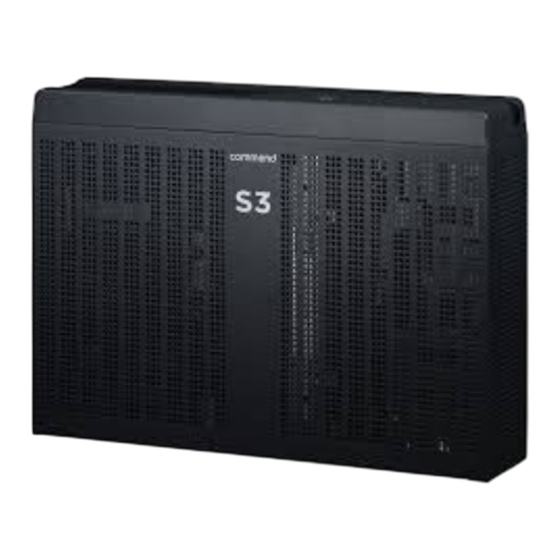

Intercom Server S3
Compact and high performance Intercom Server for wall and rack mounting, with VirtuoSIS on board.

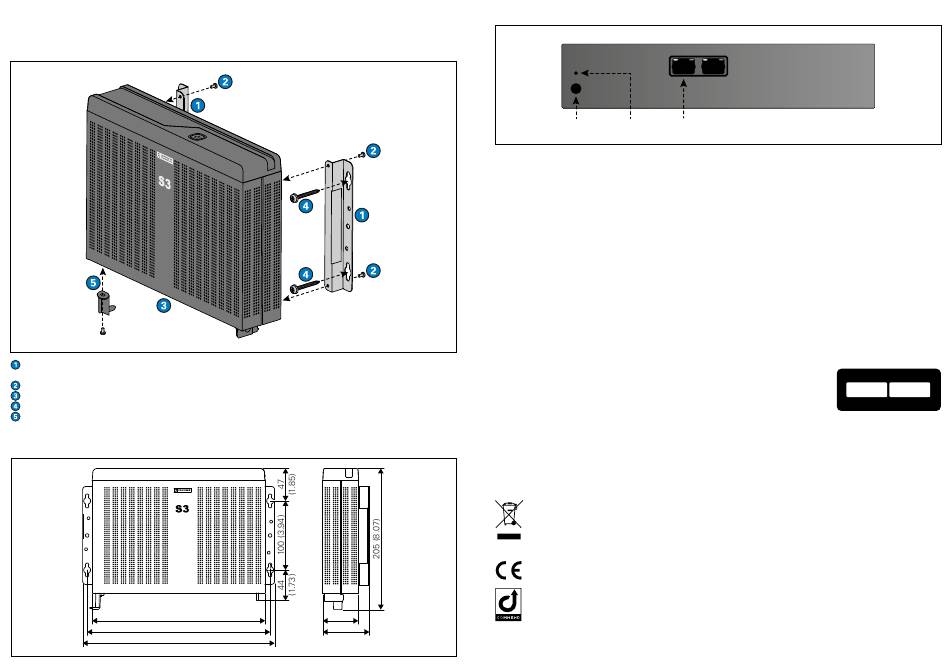

Wall mounting
Position the two mounting brackets at the bottom of the S3 so that the screw holes are pointing
outwards.
Fix the mounting brackets on the S3 using the four oval-head screws.
Ensure the connectors of the S3 are pointing downwards.
Fix the S3 on a wall using the four dowels and the four mounting screws.
Connect the power cord and fix it using the plastic lock.
Dimensions
Measuring units in mm (in), not to scale!
250 (9.84)
265 (10.43)
278 (10.94)
Connection diagram (rear)
Extent of supply
• Intercom Server
• Wall mount kit (2 mounting brackets,
• VirtuoSIS Professional licence
• Power supply, 100 – 240 V (power cord not
• Plastic lock for power cord
• Short reference
Safety warnings
• The server may only be installed by authorised service engineers.
• Do not place the device in areas where it may become wet or damp, and avoid dusty, humid and
• Observe the country-specific standards for installation, mounting and configuration.
• For installation on a wall, use the supplied wall mount kit.
• When connecting and disconnecting cables, observe the relevant instructions in the manual
• For ventilation clearance, ensure at least 200 mm space at the front and rear of the server.
Latest software and documentation
To download the latest software and documentation, enter the PIN code to
the right at: pin.commend.com
Handling
Use the original packaging when transporting the device to prevent damage.
Disposal and recycling
Manufacturer's reference
52 (2.05)
67 ,5
(2.66)
Type: D-BZ-S3, Version: 1.2/0518
DC Plastic lock LAN
4 oval-head screws, 4 dowels and
4 mounting screws)
included in extent of supply)
high temperature environments (see also data sheet).
supplied with the corresponding rack.
Equipment with this symbol shall not be disposed of together with household or commercial
waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable
in the European Union member states.
This device complies with the European directives listed below by fulfilling corresponding
standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
For technical specifications, see the respective data sheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
Power cable
For the S3, the power cable with country-specific
plug is available separately:
• C-KAB-C7-AU (Australia)
• C-KAB-C7-EU (Europe)
• C-KAB-C7-UK (United Kingdom)
• C-KAB-C7-US (USA)
Accessibility
Default IP address: 10.10.0.1/16
PIN CODE
TI10AG HIS17A
Valid until 30-06-2019
pin.commend.com
