BA-REF 6.2 - 05/2021

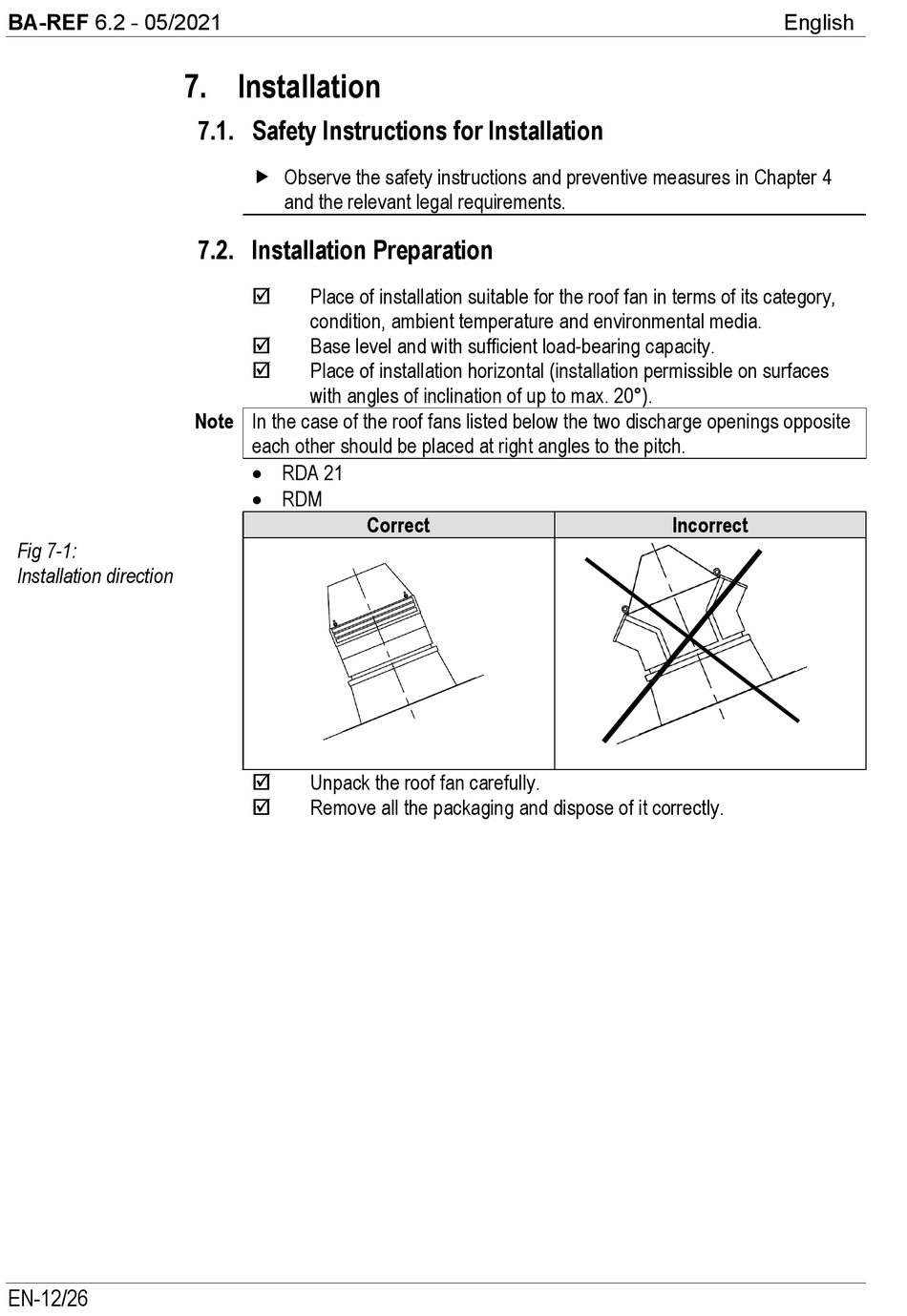

Fig 7-1:
Installation direction
EN-12/26

7. Installation

7.1. Safety Instructions for Installation
 Observe the safety instructions and preventive measures in Chapter 4
and the relevant legal requirements.
7.2. Installation Preparation
 Place of installation suitable for the roof fan in terms of its category,
condition, ambient temperature and environmental media.
Base level and with sufficient load-bearing capacity.

Place of installation horizontal (installation permissible on surfaces

with angles of inclination of up to max. 20°).
Note In the case of the roof fans listed below the two discharge openings opposite
each other should be placed at right angles to the pitch.
 RDA 21
 RDM
Unpack the roof fan carefully.

Remove all the packaging and dispose of it correctly.

Correct
English
Incorrect
