Instruction Manual

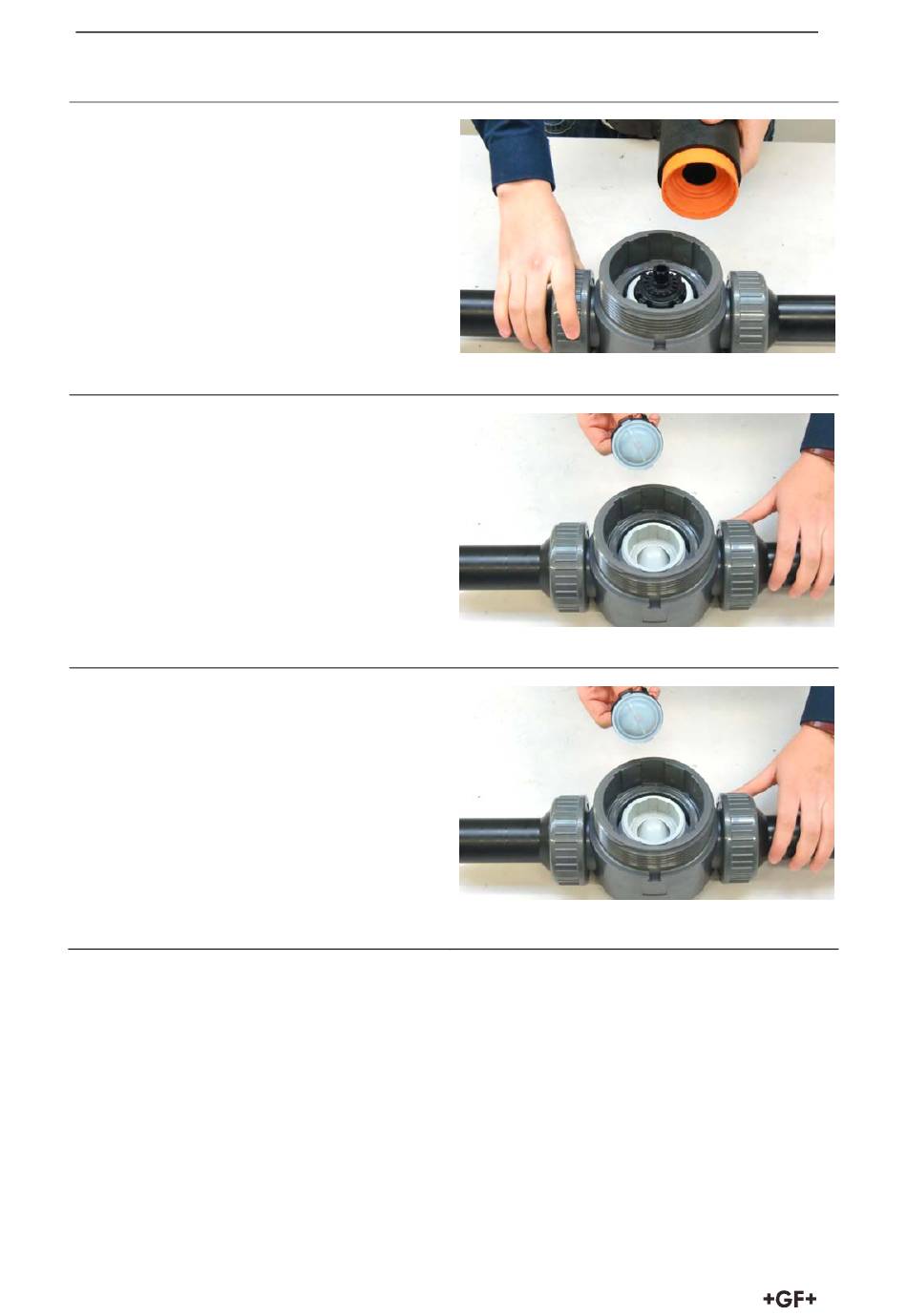

5. Remove the housing nut. of the inner
diaphragm valve. Therefore use the
installation wrench.
6. Now you can take off the adaptor
piece of the inner diaphragm valve
together with the diaphragm.
7. Hold hand wheel tight. Screw new
diaphragm handtight clockwise into
the inner housing and then turn the
diaphragm back by min. 90°.
8. For assembly: Diaphragm tabs must
be positioned between the narrow
guiding bars of the inner housing
9. Replace friction lock on the valve
body, therefore loose it with a screw
driver. Push new element in.
48
Fig. 22
Fig. 23
Fig. 24
Maintenance
