ROBBE MDM-1 FOX Einbau- Und Betriebsanleitung Seite 7

M o d e l l s p o r t
Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor. Aenean
massa. Cum sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus. Donec
quam felis, ultricies nec, pellentesque eu, pretium quis, sem. Nulla consequat massa quis enim. Donec
pede justo, fringilla vel, aliquet nec, vulputate eget, arcu. In enim justo, rhoncus ut, imperdiet a, venen-
atis vitae, justo. Nullam dictum felis eu pede mollis pretium. Integer tincidunt. Cras dapibus. Vivamus
elementum semper nisi.
F L I G H T I N S T R U C T I O N S
• Before the first flight, observe the instructions in the „Safety Instructions" section.
• When flying the model, you should choose a day with as little wind as possible
• A large, flat area without obstacles (trees, fences power lines etc.) is suitable for the first flights.
• Please carry out a functional test of the drive train / power set and remote control.
• After assembling the model on the airfield, check once again that all model components such as
wing, tail units, wing mounts, engine, linkages, etc. are firmly and properly fastened.
• For a hand start a helper should be present, who can throw the model with enough thrust into the
air.
• The start usually takes place against the wind.
• Do not stall the model near the ground
• Do not initiate tight turns in the immediate vicinity of the ground.
• Check the reactions of the model to the rudder deflections. If necessary, adjust after landing to
increase or decrease the deflections accordingly.
• The minimum flight speed must be at an adequate safety altitude.
• Initiate the landing with sufficient speed
S A F E T Y I N S T R U C T I O N S F O R R E C H A R G E A B L E B A T T E R I E S
• Do not immerse the battery in water or other liquids.
• Do not heat, throw into fire or microwave.
• Do not short-circuit or charge with reversed polarity
• Do not expose, deform or throw the battery
• Do not solder directly on the battery
• Do not change or open the battery
• Only charge the battery with suitable chargers, never connect it directly to a power supply unit.
• Never charge or discharge the battery or charger on a flammable surface.
• Never leave the battery unattended during charging or discharging processes.
• Never charge or discharge the battery in direct sunlight or near heaters or fire.
• Do not use the battery in places subject to high static discharge.
All this can cause the battery to be damaged, explode or even catch fire!
• Keep the battery away from children
• Keep leaked electrolyte away from fire, as it is highly flammable and may ignite.
• The electrolyte liquid should not get into the eyes, if it does, rinse immediately with plenty of clear
water and then see a doctor.
• The electrolyte liquid can also escape from clothes and other objects with a lot of water or washed
off.
• Observe the safety instructions of the battery manufacturer and the charger manufacturer.
I N S T R U C T I O N S A N D U S E R M A N U A L

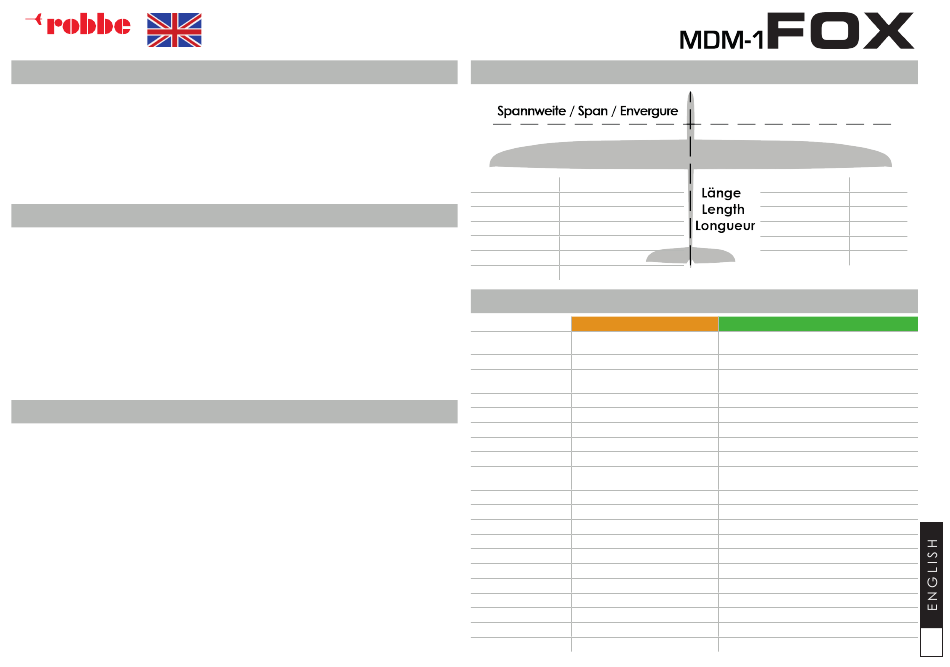

P R E F A C E T E C H N I C A L D A T A
Span
3500 mm
Length
1800 mm
Flying weight PNP 7560 g
Flying weight ARF
6470 g
Wing Area
80,50 dm²
Airfoil HQ/W 2,5/11
C.G.
-
B O X C O N T E N T / N E E D E D A C C E S S O R I E S
ARF
Motor not included
ESC
not included
Battery
not included
Servo ELE
not included
Servo RUD not included
Servo AILE not included
Servo FLAP
not included
Servo LANDING FLAP
not included
2x 100cm + 2x 20cm (not inclu-
Servo cable
ded)
Landing gear
not included
MULITlock not included
MPX plugs yes (not included)
Adhesives
not included
Epoxy resin
yes (not included)
Locking screw yes (not included)
Velcro strap
yes (not included)
Spinner
not included
Propeller not included
TX
min. 5 channels (not included)
RX
min. 7 channels (not included)
Elevator
yes
Rudder
yes
Ailerons yes
Flaps
yes
Landing flaps
no
Motor yes
PNP
Ro-Power Torque 5062 305KV Outrunner
(built-in)
min. Ro-Control, as of 80A (recommended)
Ro-Power as of 8S / 4200 mAh (or 2x4S)
(recommended)
1x FS 525 BB MG HV SERVO (built-in)
1x FS 525 BB MG HV SERVO (built-in)
2x FS 128 BB MG HV DIGITAL SERVO (built-in)
2x FS 128 BB MG HV DIGITAL SERVO (built-in)
no
built-in
no
no
built-in
-
5min ro-POXY (not included)
UHU Por (not included)
yes (not included)
Spinner mounted
Probeller 15x11 mounted
min. 5 channels (not included)
min. 7 channels (not included)
7
