Therapy tray table
The therapy tray table is supplied with a border as
standard�
Assembly
The therapy tray table is attached to the right arm rest
support� To do this, the arm support is removed from
the arm rest support and the holders of the therapy
tray table are mounted between the arm support and
the arm rest support� (Fig� 25)
Adjustment
The therapy tray table can be rotated (Fig� 26/1), ad-
justed in width (Fig� 26/2) and adjusted in depth (Fig�
26/3)� The respective screws must be loosened and
completely retightened after adjustment� The therapy
tray can be swiveled via the wing screw (Fig� 27/3)�
Cushion for therapy tray table
Assembly
The therapy table padding is velcroed directly onto the
therapy tray table� (Fig� 27)

7.2.5. Head

Head rest
The SKIPPY head rest is selected as standard from
®
the ALULINE range�
Assembly
The ALULINE universal holder is mounted to the back
rest using the screws supplied�
Adjustment
The height of the head rest can be adjusted using the
lower clamping lever on the universal holder (Fig� 28)�
Depending on the model, the inclination and/or depth
of the head rest can be adjusted using the clamping
lever on the ratchet�
Important!
Always release only one clamping lever
and make the adjustment here� Only
continue with the next one after the previous one
has been secured�
Important!
The gap between head rest cushion and
back rest cushion must not be more
than 60 mm!

7.2.6. Undercarriage

Push bar
Assembly
The screws are mounted directly on the adapter plate�
(Fig� 29 green)
Adjustment
The angle of the push bar can be adjusted using the
locking pins (Fig� 29 red)�

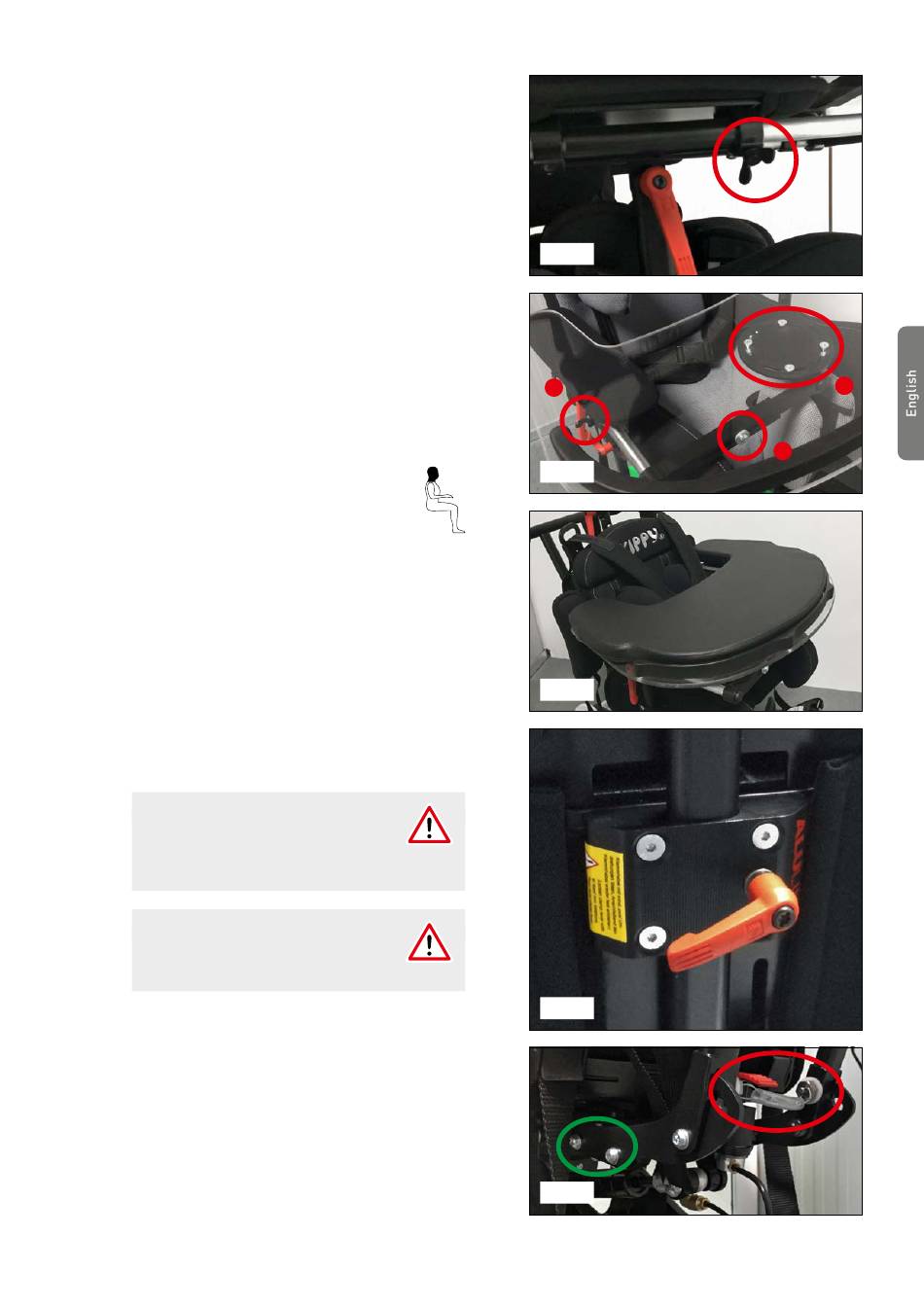

Fig 25
3
Fig 26
Fig 27
Fig 28
Fig 29
