7.2. Options / Accessories
7.2.1. Lower extremities
Foot rest (two-piece)
SKIPPY can be ordered with a two-piece foot rest
®
system�
Adjustment
The seat depth is adjusted by folding up the cover of
the adduction guide and removing the screw of the foot
rest fork there� (Fig� 10)
Important!
If a load is now applied to the foot rest,
it tilts inwards!
The screw for seat depth adjustment is loosened (as
in 7�1�)� The seat depth is now adjusted and the screw
for seat depth adjustment is retightened (Fig� 11)� Then
the foot rest fork is reassembled at the correct seat
depth and the cover is put back on� The height of the
foot rest is adjusted via the telescopic foot rest tube�
Loosen the screw at the bottom of the foot rest tube,
adjust the height and retighten�
Foot rest (one-piece)
SKIPPY can be ordered with a one-piece foot rest
®
system�
Adjustment
The depth of the foot rest can be adjusted simultane-
ously with the seat depth adjustment� To do this, simply
operate the lever under the foot rest holder and pull
out or push in the foot rest (Fig� 12)� The height of the
foot rest is adjusted via the telescopic foot rest tube�
Loosen the screw at the bottom of the foot rest tube,
adjust the height and retighten� The angle of the system
can be adjusted with the clamping lever on the side of
the ratchet�
Foot rest pads
Assembly
The foot rest pads are placed flush on the foot rest and
fixed with the velcro strips� (Fig� 13)

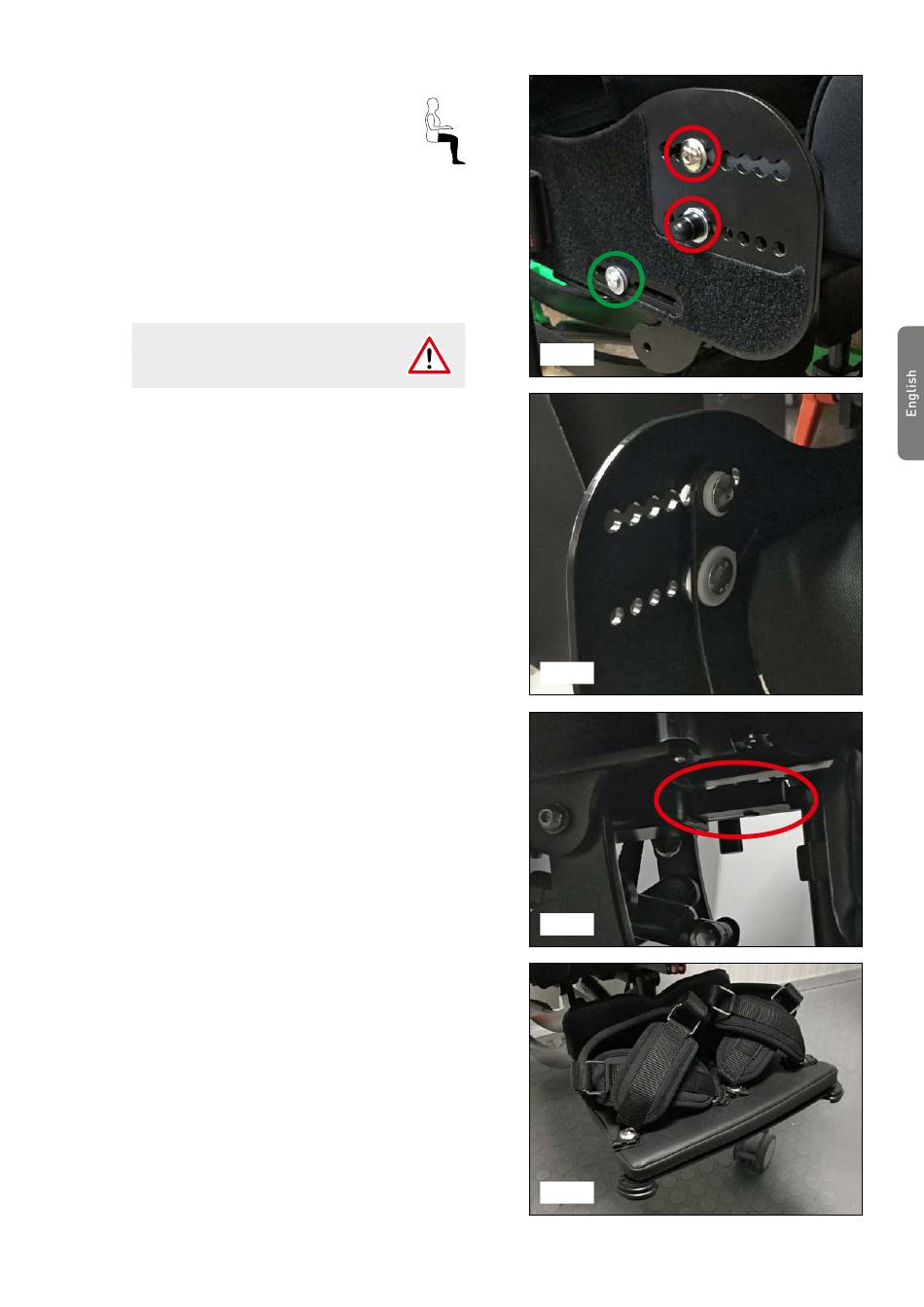

Fig 10
Fig 11
Fig 12
Fig 13
