Heel stops
Assembly
The heel stops are mounted with the provided screws
directly into the specified holes on the edge of the foot
rest� (Fig� 14)
Calf supports
Assembly
The calf supports are screwed directly to the foot rest
tube using the brackets supplied� This way they can
also be adjusted in height� (Fig� 15)
Foot gaiters
Assembly
The foot gaiters are attached directly to the outer holes
on the foot rest using the supplied screws� (Fig� 16)
If foot rest padding is mounted at the same time, plastic
sleeves are embedded in the foot rest padding� The
fabric must then be opened here according to the size
of the screw to allow the screw to pass through�
7.2.2. Pelvis
Abduction pommel
Assembly / adjustment
The abduction pommel is inserted under the shell� To
do this, the eccentric lever (Fig� 17) must be released�
The abduction pommel is now brought into the correct
position, which depends on the set seat depth� For fixa-
tion, the eccentric lever is retightened� The pommel can
thus be removed at any time�
Hip belt 2-point design
Assembly
The supplied clip buckles are fitted in the specified
position 1 (Fig� 18)� The 2-point hip belt is fed outwards
between the seat cushion and the adduction guide� The
belts are fastened in the clip buckles�
Hip belt 4-point design
Assembly
The supplied clip buckles are fitted in the specified
positions 1 and 2 (Fig� 18)� The 4-point hip belt is fed
outwards between the seat cushion and the adduction
guide and fed downwards behind the seat cushion� The
belts are fastened in the clip buckles�
42
SETTINGS / OPERATION

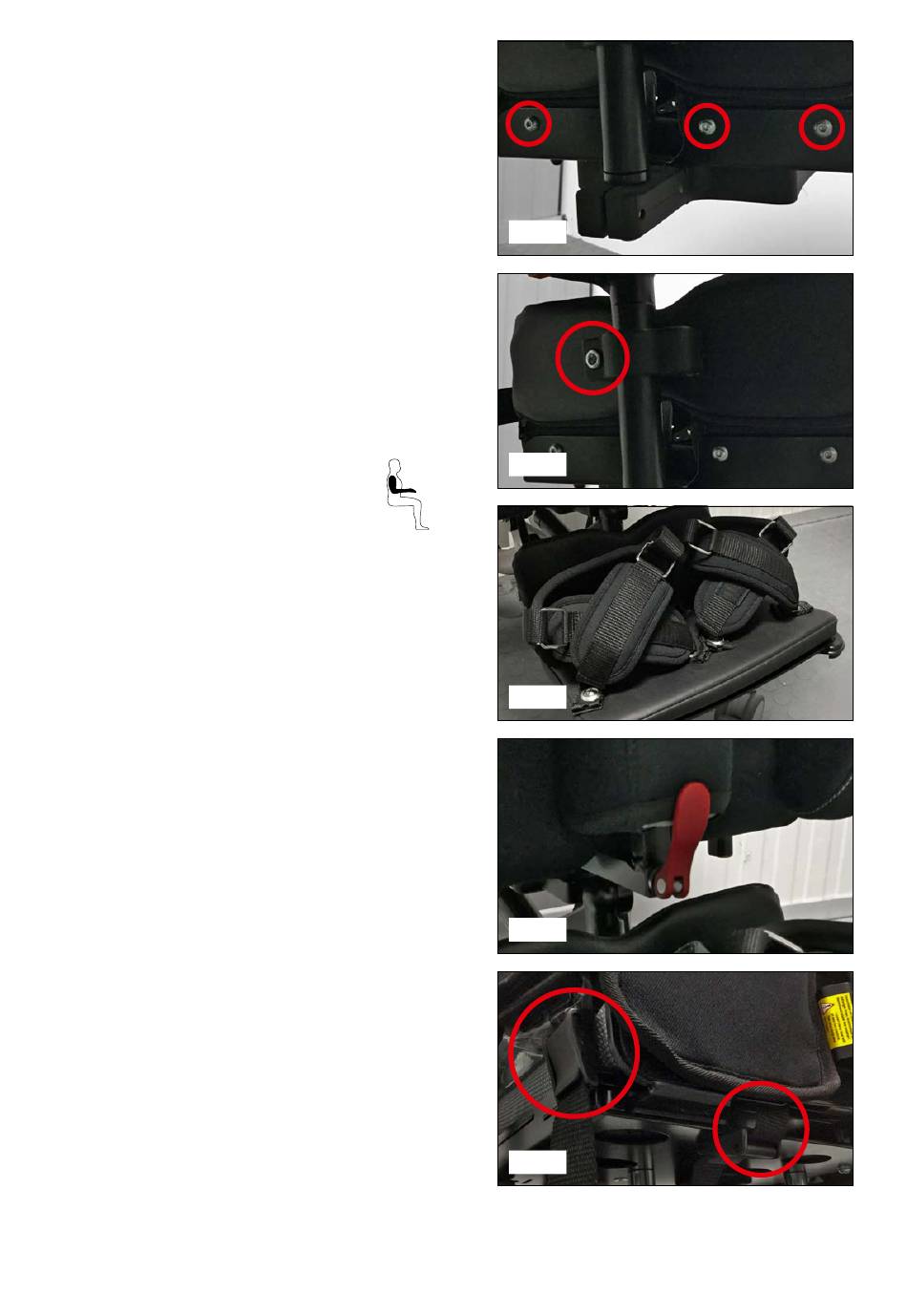

Fig 14
