Chest harness
Assembly

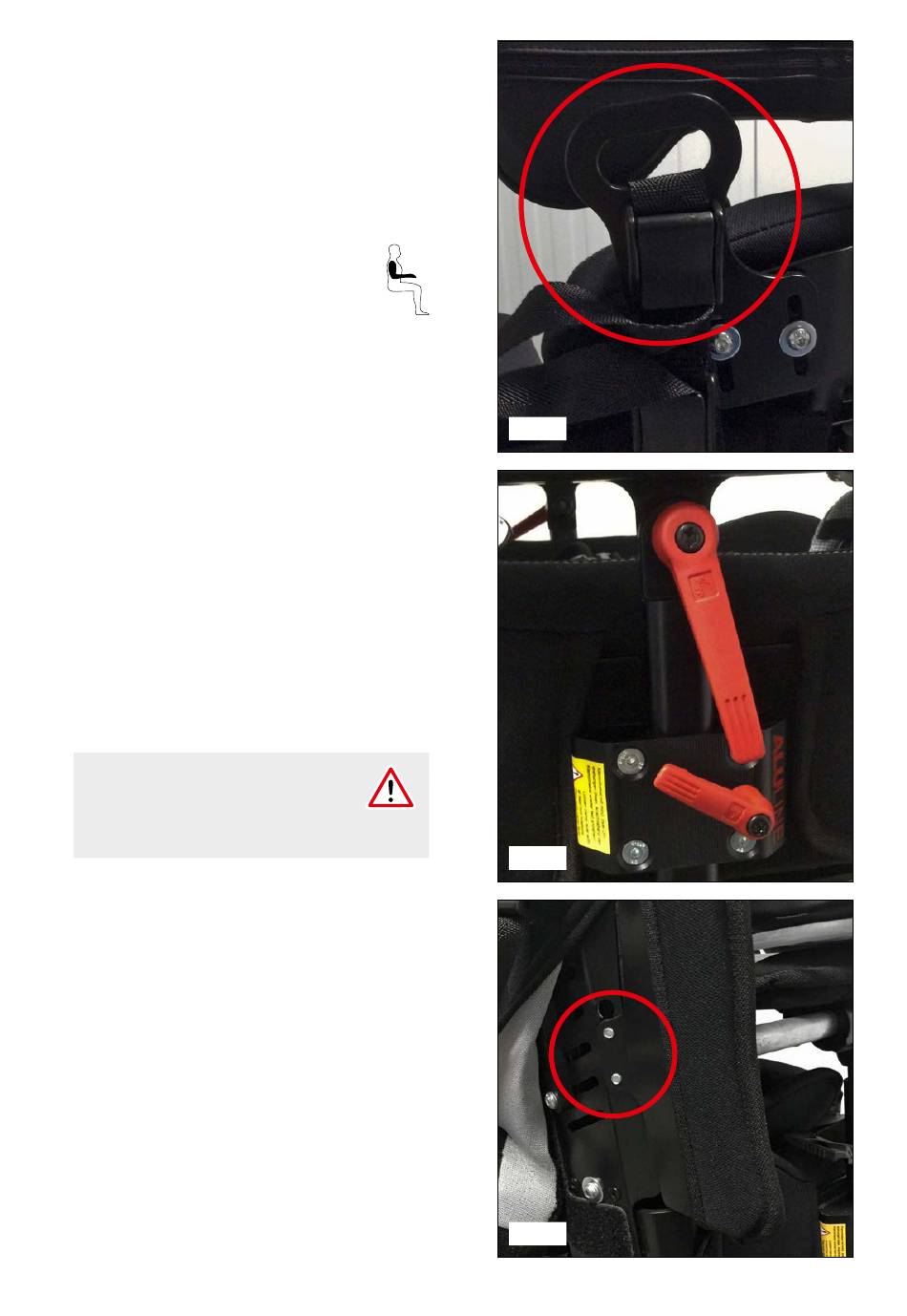

The chest shoulder support is mounted on the supplied
strap guide plates� To do this, the strap guide plates
are mounted (Fig� 22)� They can be adjusted in height
and rotated� The upper strap of the chest shoulder pad
is fastened at the top by the strap guide plate in the
upper clip buckles� The lower strap is pulled through
the guide straps below the back and then attached to
the lower clip buckles�

7.2.4. Upper extremities

Arm rests

SKIPPY can be ordered with arm rests, which are sup-
®
plied with an ALULINE arm rest support as standard�
Assembly
The cover of the adduction guide is divided and the mid-
dle section is inserted inwards between the cushion
and the aluminum shell� The ALULINE universal holder
is screwed to the adduction guide with the enclosed
screws and spacer plate� The arm rest support is then
inserted from above�
Adjustment
The height of the arm rest can be adjusted using the
lower clamping lever on the universal holder� (Fig� 23)
The inclination of the arm rest can be adjusted via the
ratchet of the upper clamping lever� The arm rests can
be mounted outwards or inwards, depending on the
adjustment of the lateral side supports, so that there
is no gap between arm rests and the lateral side sup-
port� To do this, the screws under the arm rest must
be loosened and the arm rest removed� Then it is re-
assembled�
Important!
Always release only one clamping lever
and make the adjustment here� Only
continue with the next one after the previous one
has been secured�
Upper arm supports
Assembly
The upper arm restraints are attached to the side of
the back panel� (Fig� 24) To do this, open the fabric
cover of the back on the side and insert the upper arm
restraints into the provided holes and allow them to
engage downwards�
44
SETTINGS / OPERATION
Fig 22
Fig 23
Fig 24
