Settings / Operation; 7�1� Basic Configuration; 7�1�1� Seating System - Interco Skippy Gebrauchsanweisung

7.

Settings / Operation

Every interco product is customized to the individual
needs of the user and configured accordingly� To do
justice to all possible product designs, the list of op-
tions and accessories as well as their descriptions is
therefore somewhat more extensive�
Therefore please bear in mind that this Section may
also describe components that possibly do not exist
on your product�
7.1. Basic configuration
Tool
As standard, the SKIPPY
wrench WS4� This tool can be used to perform all ad-
justments to the SKIPPY
Adjusting the seat shell
All settings on the SKIPPY
sits in it� It must be ensured that this is only done if the
user is secured by a second person!
To do this, set the SKIPPY
shortest seat depth and the shortest back height� After
the user has been placed in the SKIPPY
tion guides are pushed against the user via a ratchet�
The seat depth adjustment panels and the back rest
extension are pulled out�
Important!
Retighten all screws again when
adjustment has been completed!
Make sure there is enough space (approx�
2cm) in the back of the knees!
7.1.1. Seating system
Seat width adjustment
The seat width of the SKIPPY
3�5 cm on each side via a ratchet� To do this, loosen
the screw at the front in the middle (Fig� 1) and the two
screws at the back on each side (Fig� 2)�
Loosen the screw in the middle of the front

Fold the cover of the back rest to the side

Loosen the screws

Adjusting the seat width

Tighten the screw in the middle of the front

Tighten screws on the back rest

Replace the cover

Adjusting the seat depth
The seat depth of the SKIPPY
This is done by loosening the screw on the outside of
the adduction guide on each side (Fig� 3)�
Fold the cover of the adduction guide to the side

Loosen the screw

Set seat depth

Tighten the screw

Replace the cover of the adduction guide

is adjusted with an Allen
®
�
®
can be made while the user
®
to the widest seat width, the
®
, the adduc-
®
can be adjusted by
®
can be adjusted by 7 cm�
®

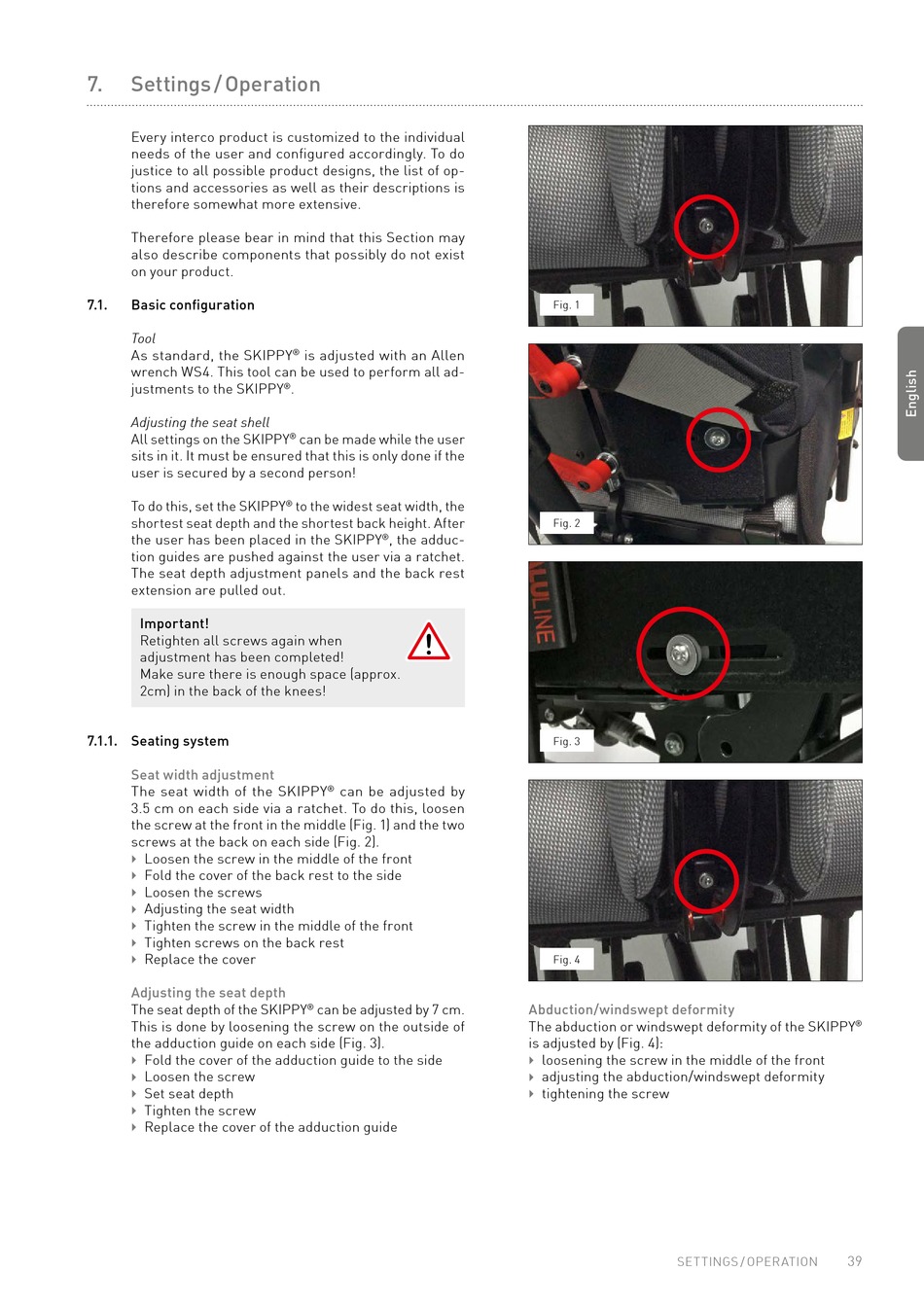

Fig 1
Fig 2
Fig 3
Fig 4
Abduction/windswept deformity
The abduction or windswept deformity of the SKIPPY
is adjusted by (Fig� 4):
loosening the screw in the middle of the front

adjusting the abduction/windswept deformity

tightening the screw

