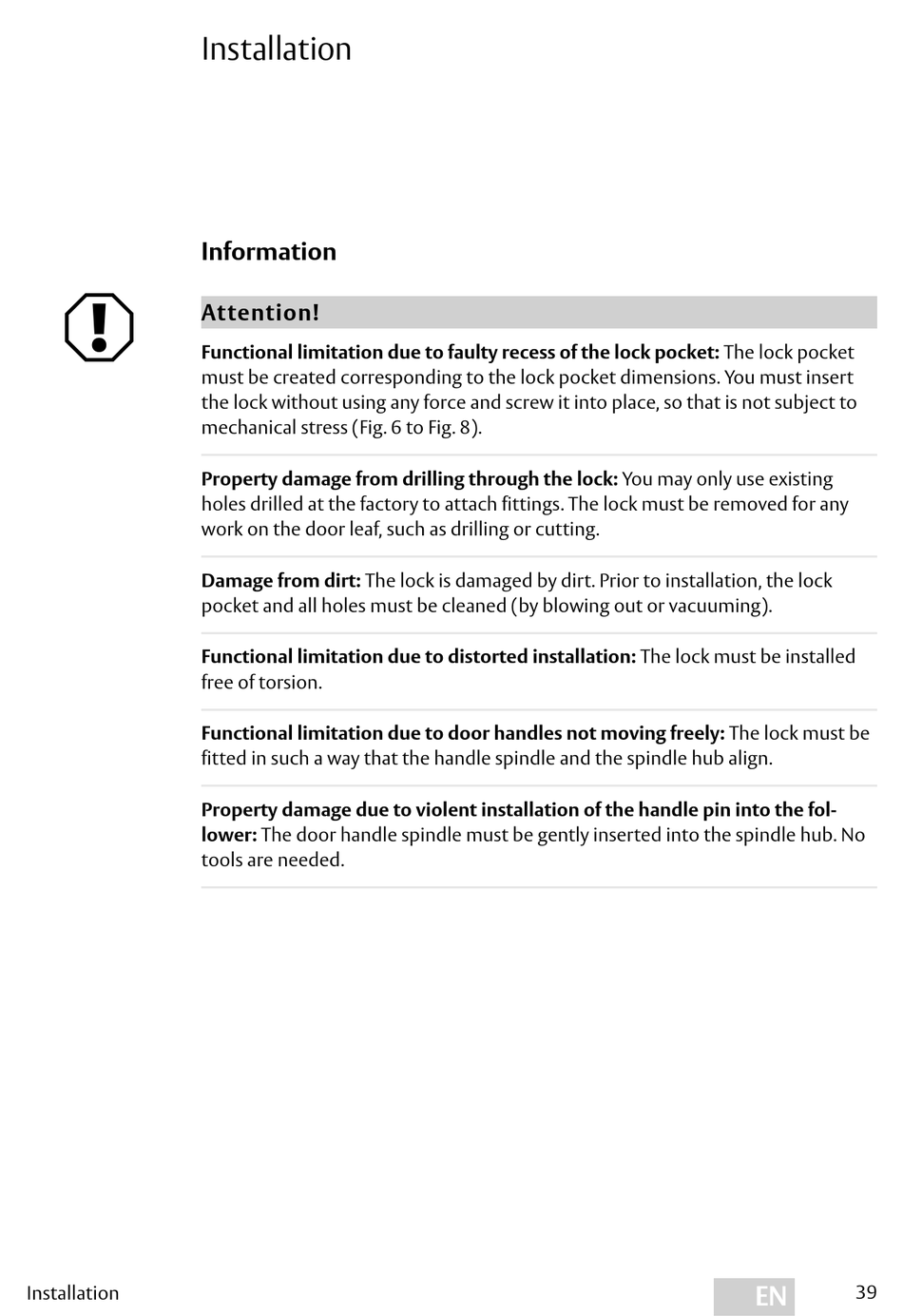

Installation

Information

A
Attention!
Functional limitation due to faulty recess of the lock pocket: The lock pocket
must be created corresponding to the lock pocket dimensions. You must insert
the lock without using any force and screw it into place, so that is not subject to
mechanical stress (Fig. 6 to Fig. 8).
Property damage from drilling through the lock: You may only use existing
holes drilled at the factory to attach fittings. The lock must be removed for any
work on the door leaf, such as drilling or cutting.
Damage from dirt: The lock is damaged by dirt. Prior to installation, the lock
pocket and all holes must be cleaned (by blowing out or vacuuming).
Functional limitation due to distorted installation: The lock must be installed
free of torsion.
Functional limitation due to door handles not moving freely: The lock must be
fitted in such a way that the handle spindle and the spindle hub align.
Property damage due to violent installation of the handle pin into the fol-
lower: The door handle spindle must be gently inserted into the spindle hub. No
tools are needed.
