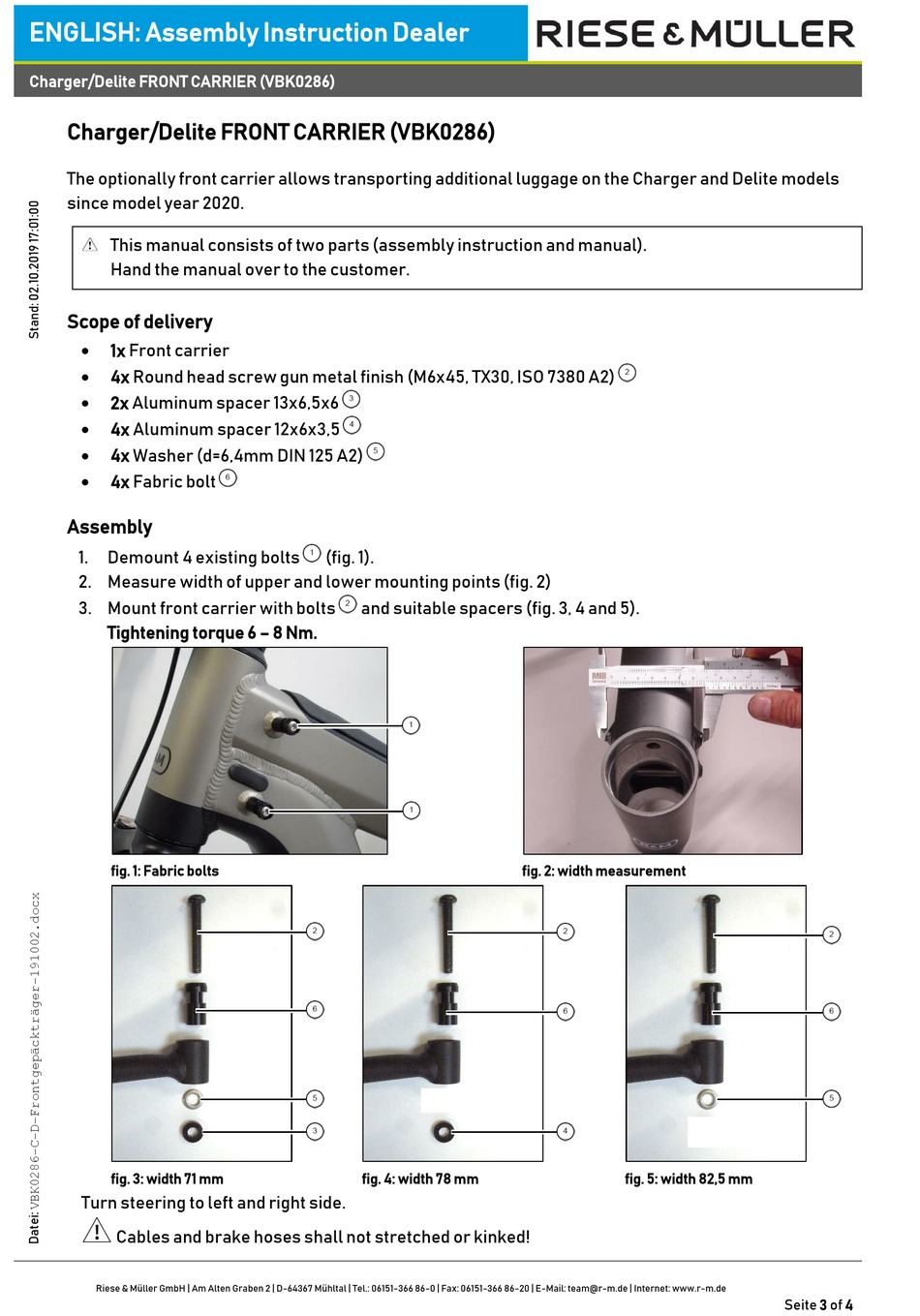

ENGLISH: Assembly Instruction Dealer
Charger/Delite FRONT CARRIER (VBK0286)
Charger/Delite FRONT CARRIER (VBK0286)
The optionally front carrier allows transporting additional luggage on the Charger and Delite models
since model year 2020.
This manual consists of two parts (assembly instruction and manual).
Hand the manual over to the customer.
Scope of delivery

1x Front carrier

4x Round head screw gun metal finish (M6x45, TX30, ISO 7380 A2)

2x Aluminum spacer 13x6,5x6

4x Aluminum spacer 12x6x3,5

4x Washer (d=6,4mm DIN 125 A2)
 4x Fabric bolt
Assembly
1. Demount 4 existing bolts
2. Measure width of upper and lower mounting points (fig. 2)
3. Mount front carrier with bolts
Tightening torque 6 – 8 Nm.
fig. 1: Fabric bolts
fig. 3: width 71 mm
Turn steering to left and right side.
Cables and brake hoses shall not stretched or kinked!
Riese & Müller GmbH | Am Alten Graben 2 | D-64367 Mühltal | Tel.: 06151-366 86-0 | Fax: 06151-366 86-20 | E-Mail: team@r-m.de | Internet: www.r-m.de
(fig. 1).
and suitable spacers (fig. 3, 4 and 5).
fig. 4: width 78 mm
fig. 2: width measurement
fig. 5: width 82,5 mm
