AXC F 2152 STARTERKIT
3
Connect Ethernet
SD-CARD
R
X4
-
-
+
+
X2
X1
•

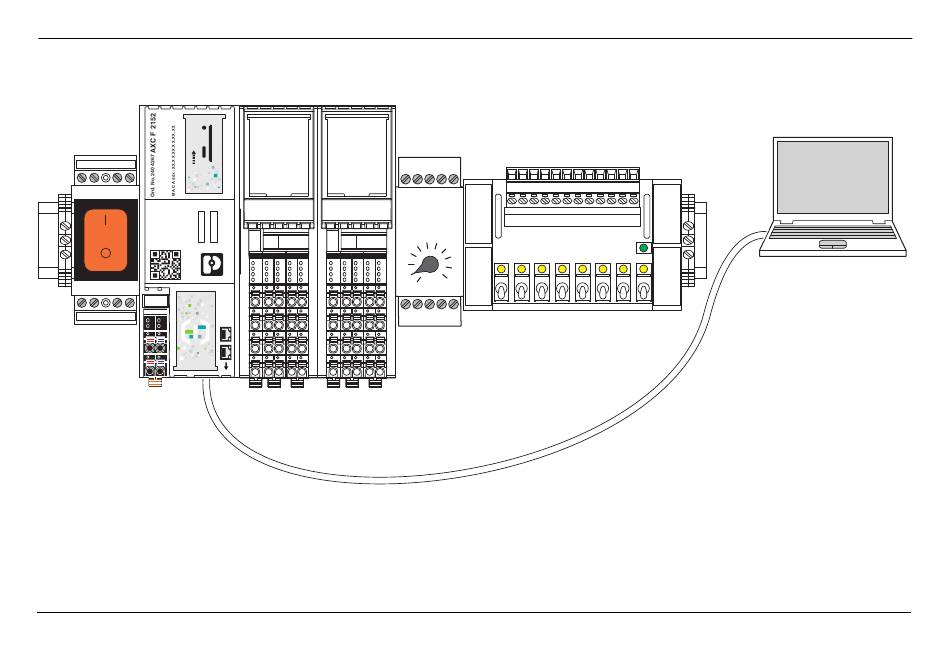

Connect the patch cable to your PC.
•
Connect the patch cable to the controller's RJ45 socket (X1 or X2).
8
PHOENIX CONTACT
24V 10V 0V 0V
P
5
6
4
7
3
8
2
9
1
10
0
24V 10V 0V 0V
PLCnext
ENGINEER
108307_en_01
