Installieren der Software Anschließen der Kamera Install the Software Connect the Camera USB-Stick einstecken Plug in USB stick Kamera und Gerät mit Kabel Connect camera and de- Starten „Install.exe“ Start “Install.exe” verbinden vice with cable „Capture Suite Basic“ instal- Install “Capture Suite Basic“ LED leuchtet konstant in Blau LED is constantly lit lieren...

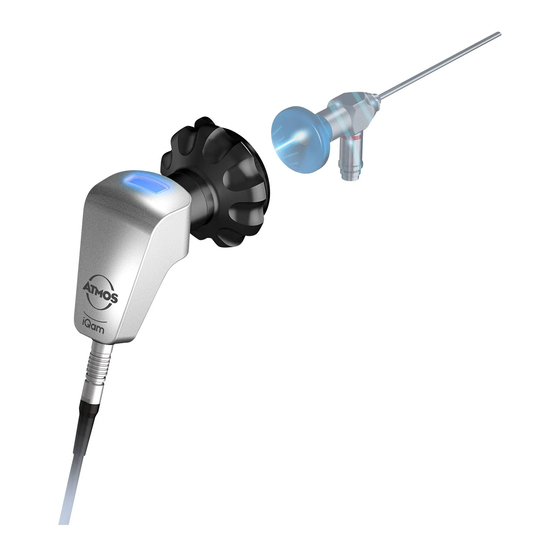

Connect endoscope and camera Optionen öffnen (1.) Open “Options“ (1.) LED blinkt 1x grün LED flashes green once ATMOS iQam als Kamera- Choose ATMOS iQam as modul auswählen (2.) camera module (2.) Auswahl mit „OK“ bestätigen Confirm selection with “OK“...
ATMOS Capture Suite Basic Livebild Anzeige Einzelbild-/Video-Aufnahme ATMOS Capture Suite Basic Live Image Display Snapshot/Video Recording Live-Bild Live image gespeicherte Bild-/Videosequenzen Saved image / video sequences Fotoaufnahme Photograph Einzelbild- oder Videoaufnahme Snapshot or video recording Videoaufnahme (Start/Stop) Video recording (Start/Stop)
Seite 5
