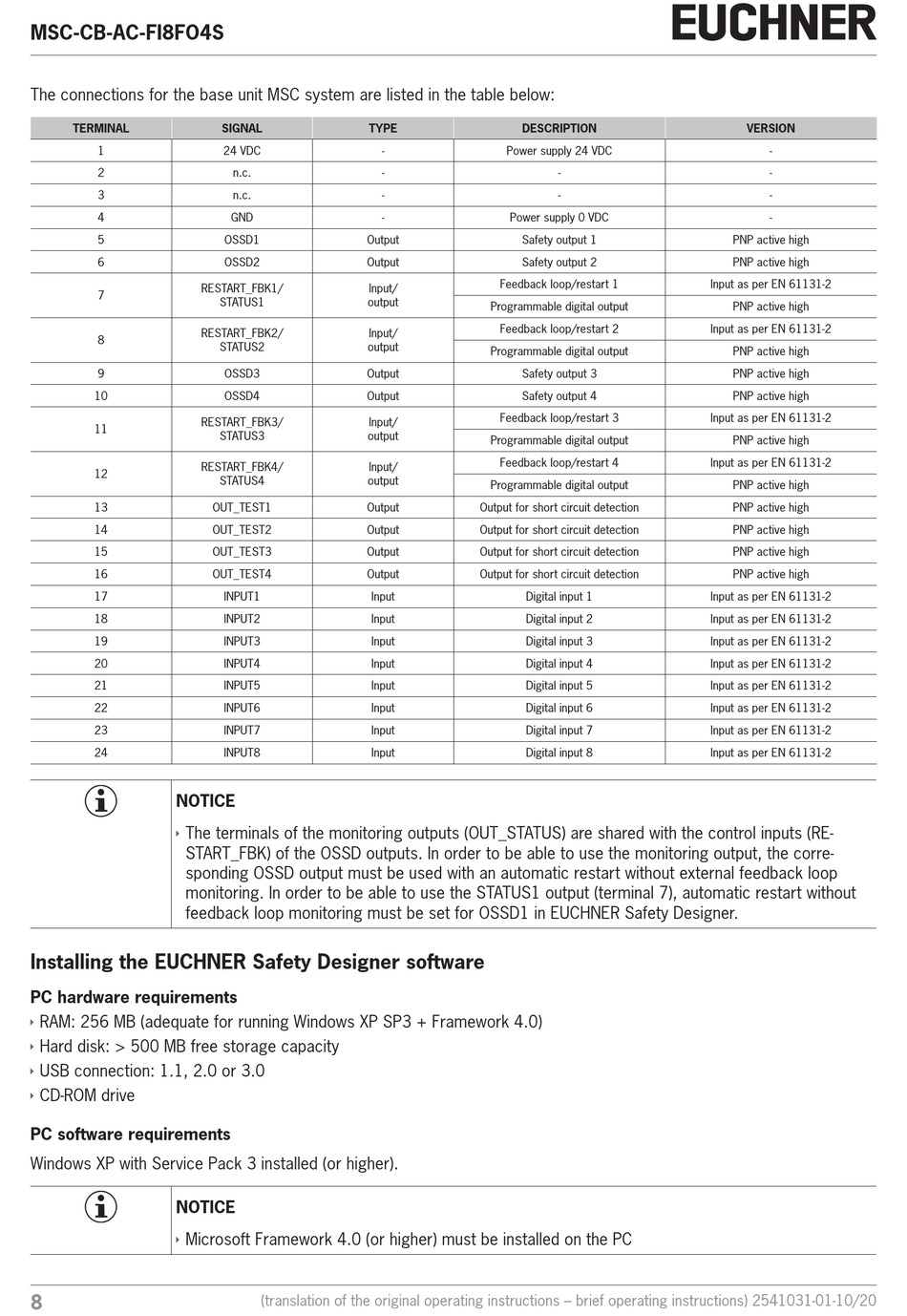

MSC-CB-AC-FI8FO4S
The connections for the base unit MSC system are listed in the table below:
TERMINAL
1
2
3
4
5
6
RESTART_FBK1/
7
RESTART_FBK2/
8
9
10
RESTART_FBK3/
11
RESTART_FBK4/
12
13
14
15
16
17
18
19
20
21
22
23
24
NOTICE
Ì The terminals of the monitoring outputs (OUT_STATUS) are shared with the control inputs (RE-
START_FBK) of the OSSD outputs. In order to be able to use the monitoring output, the corre-
sponding OSSD output must be used with an automatic restart without external feedback loop
monitoring. In order to be able to use the STATUS1 output (terminal 7), automatic restart without
feedback loop monitoring must be set for OSSD1 in EUCHNER Safety Designer.
Installing the EUCHNER Safety Designer software
PC hardware requirements
Ì RAM: 256 MB (adequate for running Windows XP SP3 + Framework 4.0)
Ì Hard disk: > 500 MB free storage capacity
Ì USB connection: 1.1, 2.0 or 3.0
Ì CD-ROM drive
PC software requirements
Windows XP with Service Pack 3 installed (or higher).
NOTICE
Ì Microsoft Framework 4.0 (or higher) must be installed on the PC
8
SIGNAL TYPE
24 VDC -
n.c. -
n.c. -
GND -
OSSD1 Output
OSSD2 Output
Input/
STATUS1 output
Input/
STATUS2 output
OSSD3 Output
OSSD4 Output
Input/
STATUS3 output
Input/
STATUS4 output
OUT_TEST1 Output
OUT_TEST2 Output
OUT_TEST3 Output
OUT_TEST4 Output
INPUT1 Input
INPUT2 Input
INPUT3 Input
INPUT4 Input
INPUT5 Input
INPUT6 Input
INPUT7 Input
INPUT8 Input
(translation of the original operating instructions – brief operating instructions) 2541031-01-10/20
DESCRIPTION
Power supply 24 VDC
-
-
Power supply 0 VDC
Safety output 1
Safety output 2
Feedback loop/restart 1
Programmable digital output
Feedback loop/restart 2
Programmable digital output
Safety output 3
Safety output 4
Feedback loop/restart 3
Programmable digital output
Feedback loop/restart 4
Programmable digital output
Output for short circuit detection
Output for short circuit detection
Output for short circuit detection
Output for short circuit detection
Digital input 1
Digital input 2
Digital input 3
Digital input 4
Digital input 5
Digital input 6
Digital input 7
Digital input 8
VERSION
-
-
-
-
PNP active high
PNP active high
Input as per EN 61131-2
PNP active high
Input as per EN 61131-2
PNP active high
PNP active high
PNP active high
Input as per EN 61131-2
PNP active high
Input as per EN 61131-2
PNP active high
PNP active high
PNP active high
PNP active high
PNP active high
Input as per EN 61131-2
Input as per EN 61131-2
Input as per EN 61131-2
Input as per EN 61131-2
Input as per EN 61131-2
Input as per EN 61131-2
Input as per EN 61131-2
Input as per EN 61131-2
