2100-Gamma
11

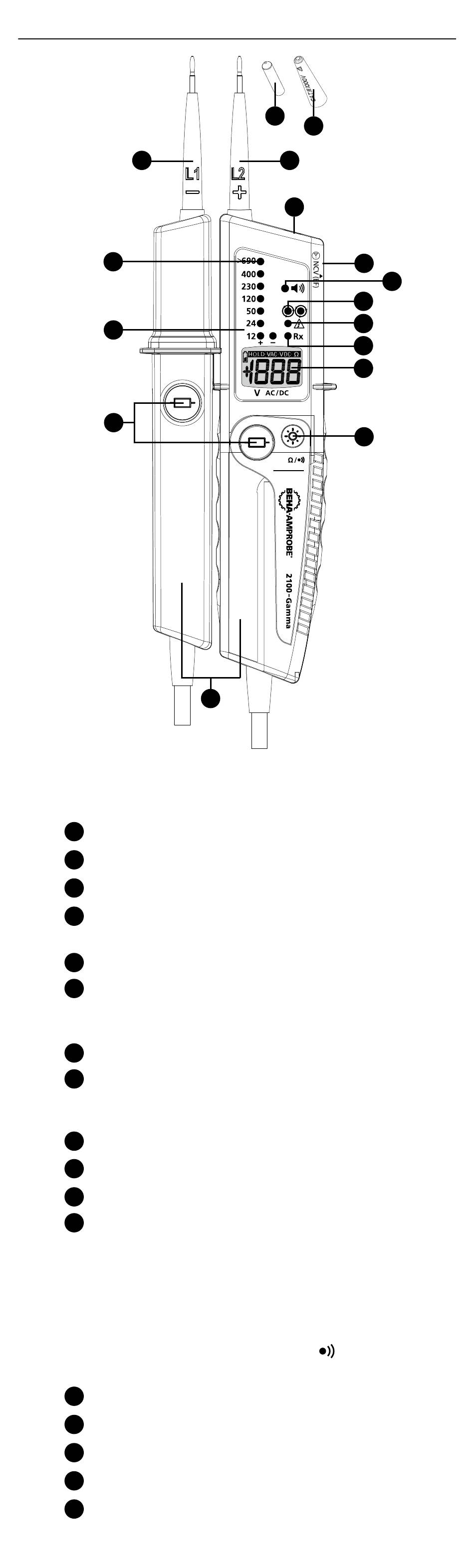

Handle test probe - (L1)
1
2 Indicator test probe + (L2)
LED row for voltage indicator
3
4 Measurement area illumination /
Torch light (white LED)
5 LED for single-pole phase test
6 LED for phase rotation indication (phase
rotation right on 2100-Alpha/2100-Beta,
phase rotation right/left on 2100-Gamma)
LED for continuity test (Rx)
7
LED for polarity (2100-Alpha/2100-Beta:
8
12 V functions when push buttons for load
application are activated)
LCD screen (2100-Beta/2100-Gamma)
9
10 Buzzer
11
Push buttons for load application
12
2100-Alpha: Button for torch light / continuity
test (Rx)
2100-Beta: Button for torch light / continuity
test (Rx), data hold (HOLD), switch ON/OFF
the Tester
2100-Gamma: Button for torch light /
continuity test (Rx), resistance measurement
(Ω) / low resistance indication " ", NCV/EF,
data hold (HOLD), switch ON/OFF the Tester
13
NCV/EF detection area (2100-Gamma)
14 Probe handle
15
GS 38 protective probe caps
16 4mm Ø test probe extension (screwable)
17
Test probe protector cover (not shown)
1
3
8
16
2
4
L
V/Rx
NCV
HOLD
14
3
15
13
10
6
R
5
7
9
12
2 sec
