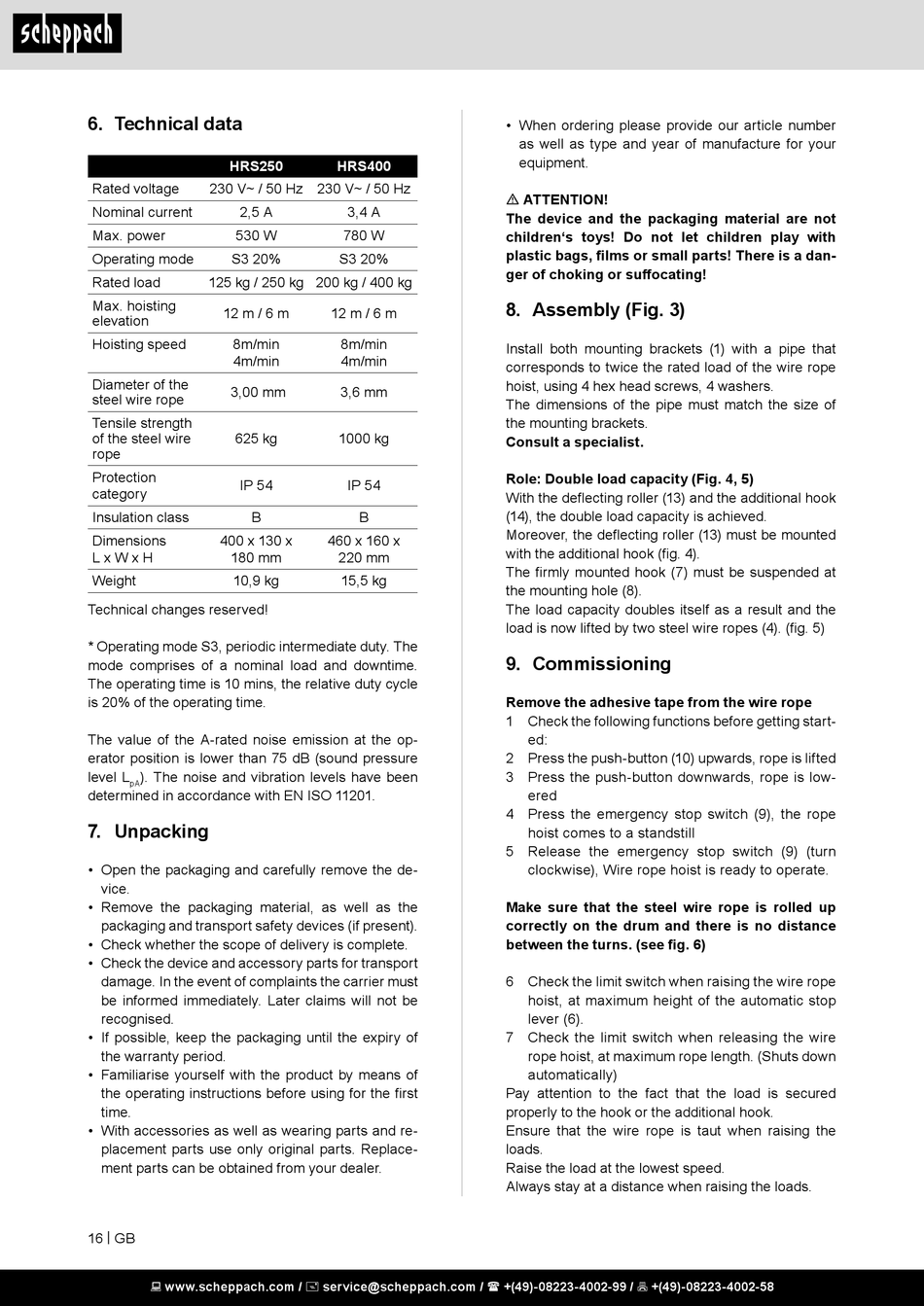

6. Technical data

HRS250
Rated voltage 230 V~ / 50 Hz 230 V~ / 50 Hz
Nominal current 2,5 A
Max. power 530 W
Operating mode S3 20%
Rated load 125 kg / 250 kg 200 kg / 400 kg
Max. hoisting
12 m / 6 m
elevation
Hoisting speed 8m/min
4m/min
Diameter of the
3,00 mm
steel wire rope
Tensile strength
of the steel wire 625 kg
rope
Protection
IP 54
category
Insulation class B
Dimensions 400 x 130 x
L x W x H 180 mm
Weight 10,9 kg
Technical changes reserved!
* Operating mode S3, periodic intermediate duty. The
mode comprises of a nominal load and downtime.
The operating time is 10 mins, the relative duty cycle
is 20% of the operating time.
The value of the A-rated noise emission at the op-
erator position is lower than 75 dB (sound pressure
level L ). The noise and vibration levels have been
pA
determined in accordance with EN ISO 11201.

7. Unpacking

• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the
packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of
the warranty period.
• Familiarise yourself with the product by means of
the operating instructions before using for the first
time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
16 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
HRS400
3,4 A
780 W
S3 20%
12 m / 6 m
8m/min
4m/min
3,6 mm
1000 kg
IP 54
B
460 x 160 x
220 mm
15,5 kg
• When ordering please provide our article number
as well as type and year of manufacture for your
equipment.
m ATTENTION!
The device and the packaging material are not
children's toys! Do not let children play with
plastic bags, films or small parts! There is a dan-
ger of choking or suffocating!
8. Assembly (Fig. 3)
Install both mounting brackets (1) with a pipe that
corresponds to twice the rated load of the wire rope
hoist, using 4 hex head screws, 4 washers.
The dimensions of the pipe must match the size of
the mounting brackets.
Consult a specialist.
Role: Double load capacity (Fig. 4, 5)
With the deflecting roller (13) and the additional hook
(14), the double load capacity is achieved.
Moreover, the deflecting roller (13) must be mounted
with the additional hook (fig. 4).
The firmly mounted hook (7) must be suspended at
the mounting hole (8).
The load capacity doubles itself as a result and the
load is now lifted by two steel wire ropes (4). (fig. 5)

9. Commissioning

Remove the adhesive tape from the wire rope
1 Check the following functions before getting start-
ed:
2 Press the push-button (10) upwards, rope is lifted
3 Press the push-button downwards, rope is low-
ered
4 Press the emergency stop switch (9), the rope
hoist comes to a standstill
5 Release the emergency stop switch (9) (turn
clockwise), Wire rope hoist is ready to operate.
Make sure that the steel wire rope is rolled up
correctly on the drum and there is no distance
between the turns. (see fig. 6)
6 Check the limit switch when raising the wire rope
hoist, at maximum height of the automatic stop
lever (6).
7 Check the limit switch when releasing the wire
rope hoist, at maximum rope length. (Shuts down
automatically)
Pay attention to the fact that the load is secured
properly to the hook or the additional hook.
Ensure that the wire rope is taut when raising the
loads.
Raise the load at the lowest speed.
Always stay at a distance when raising the loads.
